WAGO 769-636/003-000

769-636/003-000 WAGO 769-636/003-000

WAGO 769-636/003-000
Part # 769-636/003-000
Manufacturer WAGO
GTIN 4044918270694
Condition New
Price: $ 3.36

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
CLOSED HEADER
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.

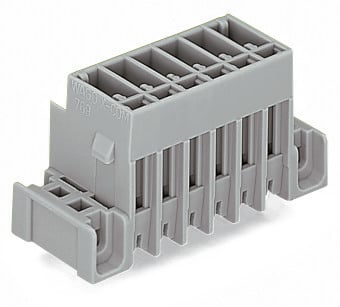

Header (for printed circuit boards) with fixing flange 6 pole

Features

Approvals

  • DEKRA Certification B.V., CCA, NL-47799/A1, IEC 61984
  • DEKRA Certification B.V., CCA, 2190419.02, EN 61984
  • Det Norske Veritas, Germanischer Lloyd, DNV GL, TAE00001V2
  • DEKRA Certification B.V., CCA, NTR NL-7626, EN 60947
  • DEKRA Certification B.V., CSA, 1101144, C22.2 No. 158
  • Underwriters Laboratories Inc., UR, E45171, UL 1977
  • Underwriters Laboratories Inc., UR, E45172, UL 1059
  • DEKRA Certification B.V., KEMA/KEUR, 2190419.01, EN 60947

Specifications

Ratings Per Iec/En

  • Nominal voltage (III/3): 250 V
  • Rated surge voltage (III/3): 4 kV
  • Rated voltage (III/2): 500 V
  • Rated surge voltage (III/2): 4 kV
  • Rated current: 32 A
  • Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3

Connection 1

  • Pole No.: 6

Physical Data

  • Pin spacing: 5 mm / 0.197 inch
  • Width: 44.7 mm / 1.76 inch
  • Height from the surface: 22.2 mm / 0.874 inch
  • Depth: 18.3 mm / 0.72 inch

Mechanical Data

  • Mounting type: Mounting flange

Plug-In Connection

  • Contact type (pluggable connector): Male connector/plug
  • Connector (connection type): For PCB
  • Mismating protection: No
  • Mating direction to the PCB: 90 °

Pcb Contact

  • PCB Contact: THT

Material Data

  • Color: Gray
  • Insulation material: Polyamide (PA66)
  • Flammability class per UL94: V0
  • Fire load: 0.160 MJ
  • Weight: 7.125 g

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: PL
  • GTIN: 4044918270694
  • Customs tariff number Sales Organisation Germany: 85366990990
: *
: *
: *
