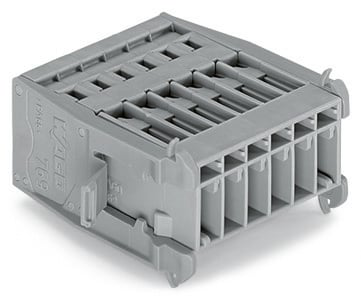

WAGO 769-608/005-000

769-608/005-000 WAGO 769-608/005-000

WAGO 769-608/005-000
Part # 769-608/005-000
Manufacturer WAGO
GTIN 4044918840958
Condition New
Price: $ 11.62

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
MALE CONNECTOR W/SNAP IN
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
Plug With CAGE CLAMP

Features

Approvals

  • Underwriters Laboratories Inc., UR, E45171, UL 1977
  • DEKRA Certification B.V., CCA, NL-47799/A1, IEC 61984
  • DEKRA Certification B.V., CCA, 2190419.02, EN 61984
  • DEKRA Certification B.V., CSA, 1101144, C22.2 No. 158
  • Underwriters Laboratories Inc., UR, E45172, UL 1059

Specifications

Ratings Per Iec/En

  • Nominal voltage (III/3): 500 V
  • Rated surge voltage (III/3): 6 kV
  • Rated current: 32 A
  • Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3

Connection 1

  • Connection technology: CAGE CLAMP®
  • Actuation type: Operating tool
  • Connectable conductor materials: Copper
  • Nominal cross-section: 4 mm²
  • Solid conductor: 0.08 … 4 mm² / 28 … 12 AWG
  • Fine-stranded conductor: 0.08 … 4 mm² / 28 … 12 AWG
  • Strip length: 8 … 9 mm / 0.31 … 0.35 inch
  • Pole No.: 8
  • Wiring direction: Front-entry wiring

Physical Data

  • Pin spacing: 5 mm / 0.197 inch
  • Width: 61.3 mm / 2.413 inch
  • Height: 24.4 mm / 0.961 inch
  • Depth: 40.8 mm / 1.606 inch

Mechanical Data

  • Mounting type: Snap-in

Plug-In Connection

  • Contact type (pluggable connector): Male connector/plug
  • Connector (connection type): For conductor

Material Data

  • Color: Gray
  • Insulation material: Polyamide (PA66)
  • Flammability class per UL94: V0
  • Fire load: 0.520 MJ
  • Weight: 25.359 g

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: PL
  • GTIN: 4044918840958
  • Customs tariff number Sales Organisation Germany: 85366990990
: *
: *
: *
