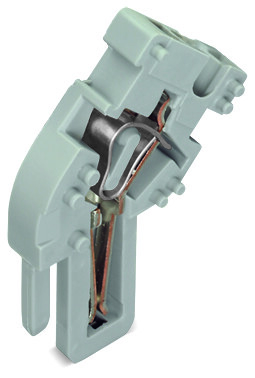

WAGO 769-515

769-515 WAGO 769-515

WAGO 769-515
Part # 769-515
Manufacturer WAGO
GTIN 4017332619738
Condition New
Price: $ 1.53

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
X-COM-1L-END MODULE GRAY
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
1-Conductor end module 45

Features

  • One base module with an integrated end plate
  • Up to 13 center modules (corresponding to a 15-pole female plug = maximum pole number)
  • One end module

Approvals

  • DEKRA Certification B.V., CCA, 2190419.02, EN 61984
  • DEKRA Certification B.V., CSA, 1101144, C22.2 No. 158
  • Underwriters Laboratories Inc., UR, E45171, UL 1977
  • DEKRA Certification B.V., CCA, NL-47799/A1, EN 61984
  • DEKRA Certification B.V., KEMA/KEUR, 2190419.01, EN 60947
  • DEKRA Certification B.V., CCA, NTR NL-7626, EN 60947

Specifications

Notes

  • Safety information 1: According to EN 61984, pluggable connectors without current interrupting capacity must not be mated or unmated when live or under load.

Ratings Per Iec/En

  • Ratings per: IEC/EN 61984
  • Nominal voltage (III/3): 500 V
  • Rated surge voltage (III/3): 6 kV
  • Rated current: 32 A
  • Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3

Connection 1

  • Connection technology: CAGE CLAMP®
  • Actuation type: Operating tool
  • Connectable conductor materials: Copper
  • Nominal cross-section: 4 mm²
  • Solid conductor: 0.08 … 4 mm² / 28 … 12 AWG
  • Fine-stranded conductor: 0.08 … 4 mm² / 28 … 12 AWG
  • Strip length: 8 … 9 mm / 0.31 … 0.35 inch
  • Pole No.: 1
  • Wiring direction: Front-entry wiring

Physical Data

  • Width: 5 mm / 0.197 inch
  • Height: 37.1 mm / 1.461 inch
  • Depth: 26.5 mm / 1.043 inch
  • Module width: 5 mm / 0.197 inch

Mechanical Data

  • Marking level: Side marking

Plug-In Connection

  • Contact type (pluggable connector): Female connector/socket
  • Connector (connection type): For conductor

Material Data

  • Color: Gray
  • Insulation material: Polyamide (PA66)
  • Flammability class per UL94: V0
  • Fire load: 0.039 MJ
  • Weight: 2.308 g

Commercial Data

  • Packaging type: Bag
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4017332619738
  • Customs tariff number Sales Organisation Germany: 85366990990
: *
: *
: *
