WAGO 769-195/769-319

769-195/769-319 WAGO 769-195/769-319

WAGO 769-195/769-319
Part # 769-195/769-319
Manufacturer WAGO
GTIN 4017332096195
Condition New
Price: $ 17.58

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
RL MT RECEPTACLE BLK 10-P W/PLATE
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.

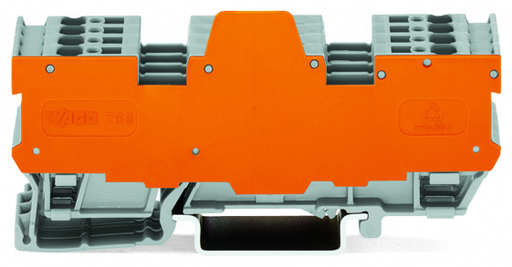

1-Conductor/1-conductor receptacle terminal block 10 pole with orange separator plate

Features

Approvals

  • DEKRA Certification B.V., CCA, NTR NL-7626, EN 60947
  • Det Norske Veritas, Germanischer Lloyd, DNV GL, TAE00001V2
  • Underwriters Laboratories Inc., UR, E45171, UL 1977
  • American Bureau of Shipping, ABS, 20-HG1941090-PDA, EN 60947
  • DEKRA Certification B.V., CSA, 1101144, C22.2 No. 158
  • Underwriters Laboratories Inc., UR, E45172, UL 1059
  • DEKRA Certification B.V., KEMA/KEUR, 2190419.01, EN 60947

Specifications

Ratings Per Iec/En

  • Nominal voltage (III/3): 400 V
  • Rated surge voltage (III/3): 6 kV
  • Rated current: 16 A
  • Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3

Connection 1

  • Connection technology: CAGE CLAMP®
  • Connectable conductor materials: Copper
  • Nominal cross-section: 4 mm²
  • Solid conductor: 0.08 … 4 mm² / 28 … 12 AWG
  • Fine-stranded conductor: 0.08 … 4 mm² / 28 … 12 AWG
  • Strip length: 8 … 9 mm / 0.31 … 0.35 inch
  • Pole No.: 10
  • Wiring direction: Front-entry wiring

Physical Data

  • Width: 26.1 mm / 1.028 inch
  • Height: 87.5 mm / 3.445 inch
  • Depth from upper edge of DIN-rail: 28.5 mm / 1.122 inch

Mechanical Data

  • Design: Horizontal type
  • Mounting type: DIN-35 rail
  • Marking level: Center marking

Material Data

  • Color: Gray
  • Insulation material: Polyamide (PA66)
  • Flammability class per UL94: V0
  • Fire load: 0.903 MJ
  • Weight: 44.300 g

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4017332096195
  • Customs tariff number Sales Organisation Germany: 85369010000
: *
: *
: *
