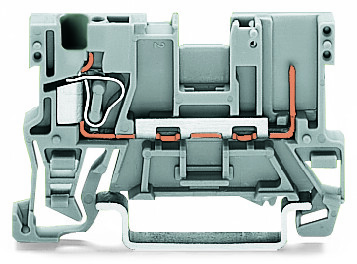

WAGO 769-176

769-176 WAGO 769-176

WAGO 769-176
Part # 769-176
Manufacturer WAGO
GTIN 4045454871697
Condition New
Price: $ 2.07
Qty
324 In stock
Order by 3PM MST (subject to stock availability) same day shipping available!
RL MT 1-CON/1-PIN TRM BLK
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
RL MT 1-CON/1-PIN TRM BLK

Features

Approvals

  • DEKRA Certification B.V., CSA, 1101144, C22.2 No. 158
  • Lloyds Register, LR, 91/20112 (E9), EN 60947
  • Underwriters Laboratories Inc., UR, E45171, UL 1977
  • DEKRA Certification B.V., CCA, NTR NL-7626, EN 60947
  • DEKRA Certification B.V., KEMA/KEUR, 2190419.01, EN 60947
  • Det Norske Veritas, Germanischer Lloyd, DNV GL, TAE00001V2
  • Underwriters Laboratories Inc., UR, E45172, UL 1059
  • American Bureau of Shipping, ABS, 20-HG1941090-PDA, EN 60947

Specifications

Ratings Per Iec/En

  • Ratings per: IEC/EN 60947-7-1
  • Nominal voltage (III/3): 500 V
  • Rated surge voltage (III/3): 6 kV
  • Rated current: 32 A
  • Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3

Connection 1

  • Connection technology: CAGE CLAMP®
  • Number of connection points: 1
  • Actuation type: Operating tool
  • Connectable conductor materials: Copper
  • Nominal cross-section: 4 mm²
  • Solid conductor: 0.08 … 4 mm² / 28 … 12 AWG
  • Fine-stranded conductor: 0.08 … 4 mm² / 28 … 12 AWG
  • Strip length: 8 … 9 mm / 0.31 … 0.35 inch
  • Wiring direction: Front-entry wiring

Connection 2

  • Number of connection points 2: 1

Physical Data

  • Width: 5 mm / 0.197 inch
  • Height: 52.5 mm / 2.067 inch
  • Depth from upper edge of DIN-rail: 28.5 mm / 1.122 inch

Mechanical Data

  • Design: Horizontal type
  • Mounting type: DIN-35 rail
  • Marking level: Center marking

Material Data

  • Color: Gray
  • Insulation material: Polyamide (PA66)
  • Flammability class per UL94: V0
  • Fire load: 0.101 MJ
  • Weight: 5.270 g

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: CN
  • GTIN: 4045454871697
  • Customs tariff number Sales Organisation Germany: 85366990990
: *
: *
: *
