WAGO » X-Com System » Series 769 » WAGO 769-156

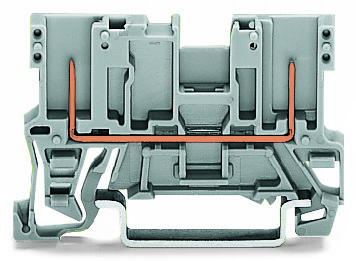

WAGO 769-156

769-156 WAGO 769-156

WAGO 769-156
Part # 769-156
Manufacturer WAGO
GTIN 4044918391672
Condition New
Price: $ 1.69
Qty
32 In stock
Order by 3PM MST (subject to stock availability) same day shipping available!
RL MT RECEPTACLE TRM BLK
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
2-Pin receptacle terminal block according to en 60715 locking device

Features

Approvals

  • Underwriters Laboratories Inc., UR, E45171, UL 1977
  • Lloyds Register, LR, 91/20112 (E9), EN 60947
  • DEKRA Certification B.V., CCA, NTR NL-7626, EN 60947
  • Underwriters Laboratories Inc., UR, E45172, UL 1059
  • American Bureau of Shipping, ABS, 20-HG1941090-PDA, EN 60947
  • DEKRA Certification B.V., KEMA/KEUR, 2190419.01, EN 60947
  • Det Norske Veritas, Germanischer Lloyd, DNV GL, TAE00001V2
  • DEKRA Certification B.V., CSA, 1101144, C22.2 No. 158

Specifications

Ratings Per Iec/En

  • Ratings per: IEC/EN 60947-7-1
  • Nominal voltage (III/3): 500 V
  • Rated surge voltage (III/3): 6 kV
  • Rated current: 32 A
  • Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3

Connection 1

  • Wiring direction: Front-entry wiring

Physical Data

  • Width: 5 mm / 0.197 inch
  • Height: 52.5 mm / 2.067 inch
  • Depth from upper edge of DIN-rail: 28.5 mm / 1.122 inch

Mechanical Data

  • Design: Horizontal type
  • Mounting type: DIN-35 rail
  • Marking level: Center marking

Material Data

  • Color: Gray
  • Insulation material: Polyamide (PA66)
  • Flammability class per UL94: V0
  • Fire load: 0.099 MJ
  • Weight: 4.470 g

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4044918391672
  • Customs tariff number Sales Organisation Germany: 85369010000
: *
: *
: *
