WAGO 2020-103/122-000

2020-103/122-000 WAGO 2020-103/122-000

WAGO 2020-103/122-000
Part # 2020-103/122-000
Condition New
Price: $ 5.24

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!

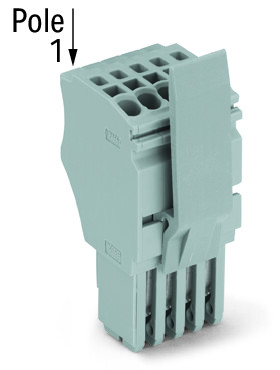

X-COM S-Mini female plug; rail mount; for 2020 series carrier terminal blocks; with locking lever; 1-conductor; 3-pole; 7.7 mm wide; gray
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
X-COM S-Mini female plug; rail mount; for 2020 series carrier terminal blocks; with locking lever; 1-conductor; 3-pole; 7.7 mm wide; gray

Features

Approvals

  • DEKRA Certification B.V., CCA, NTR NL 7617, EN 60947
  • UL International Germany GmbH, UL, E45172, UL 1059

Specifications

Notes

  • Safety information 1: According to EN 61984, pluggable connectors without current interrupting capacity must not be mated or unmated when live or under load.
  • Safety information 2: Notice: An appropriate end plate must be applied to the carrier terminal blocks after each female plug.

Ratings Per Iec/En

  • Ratings per: IEC/EN 61984
  • Nominal voltage (III/3): 500 V
  • Rated surge voltage (III/3): 6 kV
  • Rated current: 13.5 A
  • Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3

Ratings Per Ul

  • Approvals per: UL 1059
  • Rated voltage UL (Use Group B): 300 V
  • Rated current UL (Use Group B): 15 A
  • Rated voltage UL (Use Group C): 300 V
  • Rated current UL (Use Group C): 15 A
  • Rated voltage UL (Use Group D): 300 V
  • Rated current UL (Use Group D): 15 A

Ratings Per Csa

  • Approvals per: C22.2 No 158
  • Rated voltage CSA (Use Group B): 300 V
  • Rated current CSA (Use Group B): 10 A
  • Rated voltage CSA (Use Group C): 300 V
  • Rated current CSA (Use Group C): 10 A
  • Rated voltage CSA (Use Group D): 300 V
  • Rated current CSA (Use Group D): 10 A

Connection 1

  • Connection technology: Push-in CAGE CLAMP®
  • Actuation type: Operating tool || Push-in
  • Connectable conductor materials: Copper
  • Nominal cross-section: 1 mm²
  • Solid conductor: 0.14 … 1.5 mm² / 24 … 16 AWG
  • Solid conductor; push-in termination: 0.5 … 1.5 mm² / 20 … 16 AWG
  • Fine-stranded conductor: 0.14 … 1.5 mm² / 24 … 16 AWG
  • Fine-stranded conductor; with insulated ferrule: 0.14 … 0.75 mm² / 24 … 18 AWG
  • Fine-stranded conductor; with ferrule; push-in termination: 0.5 … 0.75 mm² / 20 … 18 AWG
  • Note (conductor cross-section): Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
  • Strip length: 9 … 11 mm / 0.35 … 0.43 inch
  • Pole No.: 3
  • Wiring direction: Front-entry wiring

Physical Data

  • Width: 11.2 mm / 0.441 inch
  • Height: 48.9 mm / 1.925 inch
  • Depth: 27.2 mm / 1.071 inch
  • Module width: 3.5 mm / 0.138 inch

Mechanical Data

  • Marking level: Side marking

Plug-In Connection

  • Contact type (pluggable connector): Female connector/socket
  • Connector (connection type): For conductor

Material Data

  • Color: Gray
  • Insulation material: Polyamide (PA66)
  • Flammability class per UL94: V0
  • Fire load: 0.142 MJ
  • Weight: 7.530 g

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4050821092407
  • Customs tariff number Sales Organisation Germany: 85366990990
: *
: *
: *
