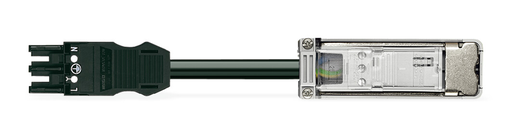

Features

• pluggable installation connectors with protection against mismating
• products perfectly tailored to your requirements guarantee safe use
• with A coding for use in a large number of general mains applications
• ready to install and use immediately
• convenient installation and commissioning

Specifications

Notes

• Note: Cables with a different fire class can be found in the eShop.

Ratings Per Iec/En

• Ratings per: IEC/EN 60664-1
• Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3

Connection 1

• Sheathed cable diameter: 9.2 … 11.4 mm

Physical Data

• Total length: 0.44 m

Mechanical Data

• Application: General mains applications
• Coding: A
• Marking: L ⏚ N
• Mating force of a plug-in connection: Approx. 30 … 70 N (depending on pole number)
• Retention force of a plug-in connection: When locked: > 80N
• Unmating force of a plug-in connection: Unlocked: approx. 30 … 70 N (depending on pole number)
• Number of mating cycles: 200, without resistive load
• Protection class: IP20; Only when mated and secured with a strain relief housing (These compact connectors are not designed for use in open, easily accessible areas.)
• Suitable: For flat cable 3 x 2.5 mm²

Plug-In Connection

• Mismating protection: Yes
• Note on mismating protection: All WINSTA® components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180
c.) plugging while laterally staggeredd.) plugging one pole
• Locking of plug-in connection: Locking lever

Material Data

• Color: White
• Insulation material: Polyamide (PA66)
• Fire class per EN 50575: Eca
• Contact material: Copper or copper alloy (surface-treated)
• Fire load: 12.630 MJ
• Halogen-free: No
• Sheath material: Halogen-free
• Weight: 155.593 g
• Copper weight of the cable: 0.072 kg/m

Environmental Requirements

• Processing temperature: -5 … +40 °C
• Continuous operating temperature: -35 … +85 °C
• Note on continuous operating temperature: PVC cable for temperatures ≤ 70 °C (including halogen-free)Insulating parts for temperatures ≤ 105 °C

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4045454154639
• Customs tariff number Sales Organisation Germany: 85366990990
