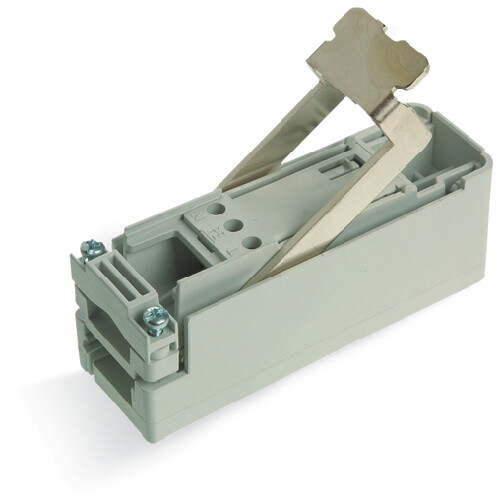

Features

• protection against mismating eliminates errors
• saves time, since no wiring is required at the construction site
• custom-engineered solutions
• convenient installation and commissioning

Specifications

Ratings Per Iec/En

• Ratings per: IEC/EN 60664-1
• Nominal voltage (III/3): 250 V
• Rated surge voltage (III/3): 4 kV
• Rated current: 24 A
• Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3

Connection 1

• Connection technology: Screw-type connection
• Actuation type: Operating tool
• Pole No.: 3
• Wire cross-section: 2.5 mm²

Connection 2

• Connection technology 2: IDC

Physical Data

• Width: 30 mm / 1.181 inch
• Height: 34 mm / 1.339 inch
• Depth: 90 mm / 3.543 inch

Mechanical Data

• Retention force of a plug-in connection: When locked: > 80 N
• Protection class: IP20; When mated: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!)
• Suitable: For flat cable 3 x 2.5 mm²

Plug-In Connection

• Mismating protection: Yes
• Note on mismating protection: All WINSTA® components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180
c.) plugging while laterally staggeredd.) plugging one pole
• Locking of plug-in connection: Locking lever

Material Data

• Color: Gray
• Insulation material: Polyamide (PA66)
• Contact material: Copper or copper alloy (surface-treated)
• Fire load: 1.500 MJ
• Weight: 90.000 g

Environmental Requirements

• Processing temperature: -5 … +40 °C
• Continuous operating temperature: -35 … +85 °C
• Note on continuous operating temperature: PVC cable for temperatures ≤ 70 °C (including halogen-free)PVC flat cable for temperatures –15 °C to ≤ 70 °C (including halogen-free)Insulating parts for temperatures ≤ 105 °C

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: CH
• GTIN: 4045454004217
• Customs tariff number Sales Organisation Germany: 85369010000
