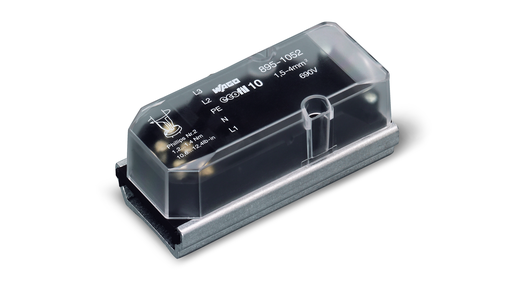

Features

• pluggable installation connectors with protection against mismating
• products perfectly tailored to your requirements guarantee safe use
• flexible installation to save space
• convenient installation and commissioning

Specifications

Ratings Per Iec/En

• Ratings per: IEC/EN 60664-1
• Nominal voltage (III/3): 690 V
• Rated surge voltage (III/3): 8 kV
• Rated current: 32 A
• Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3

Connection 1

• Connection technology: CAGE CLAMP®
• Actuation type: Operating tool
• Pole No.: 5

Physical Data

• Width: 51 mm / 2.008 inch
• Height: 48 mm / 1.89 inch
• Depth: 110 mm / 4.331 inch

Mechanical Data

• Retention force of a plug-in connection: When locked: > 80 N
• Protection class: IP20; When mated: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!)
• Suitable: For flat cable 5 x 10 mm²

Plug-In Connection

• Mismating protection: Yes
• Note on mismating protection: All WINSTA® components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180
c.) plugging while laterally staggeredd.) plugging one pole
• Locking of plug-in connection: Locking lever

Material Data

• Color: Transparent
• Insulation material: Polyamide (PA66)
• Contact material: Copper or copper alloy (surface-treated)
• Fire load: 2.232 MJ
• Weight: 171.800 g

Environmental Requirements

• Processing temperature: -5 … +40 °C
• Continuous operating temperature: -35 … +85 °C
• Note on continuous operating temperature: PVC cable for temperatures ≤ 70 °C (including halogen-free)PVC flat cable for temperatures –15 °C to ≤ 70 °C (including halogen-free)Insulating parts for temperatures ≤ 105 °C

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: CH
• GTIN: 4045454006266
• Customs tariff number Sales Organisation Germany: 85369010000
