WAGO 893-1022

893-1022 WAGO 893-1022

WAGO 893-1022
Part # 893-1022
Manufacturer WAGO
Condition New
Price: $ 6.88

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!

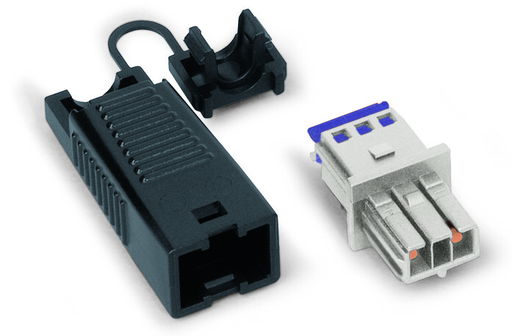

SOCKET WITH RELIEF HOUSING 2P BLACK
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
SOCKET WITH RELIEF HOUSING 2P BLACK

Features

  • saves time, since no wiring is required at the construction site
  • with F coding for connections with protection against mismating for supplying power
  • ready for immediate use
  • convenient installation and commissioning

Specifications

Ratings Per Iec/En

  • Ratings per: IEC/EN 60664-1
  • Nominal voltage (III/3): 50 V
  • Rated surge voltage (III/3): 0.8 kV
  • Rated current: 3 A
  • Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3

Connection 1

  • Connection technology: PUSH WIRE®
  • Actuation type: Push-in
  • Conductor diameter: 0.8 mm
  • Strip length: 9 mm / 0.35 inch
  • Pole No.: 2
  • Connectable sheathed cable diameter: 5 … 7 mm
  • Conductor entry direction to mating direction: 0 °

Physical Data

  • Width: 14.1 mm / 0.555 inch
  • Depth: 47.5 mm / 1.87 inch

Mechanical Data

  • technology: KNX
  • Coding: F
  • Marking: 1+ 2-
  • Potentialkennzeichnung: 1+ 2-
  • Mating force of a plug-in connection: Approx. 10 … 15 N
  • Retention force of a plug-in connection: Locked: > 80 N
  • Unmating force of a plug-in connection: Unlocked: approx. 15 … 20 N
  • Number of mating cycles: 200
  • Protection class: IP20; Only when mated and secured with a strain relief housing (These compact connectors are not designed for use in open, easily accessible areas.)

Plug-In Connection

  • Contact type (pluggable connector): Female connector/socket
  • Connector (connection type): For conductor
  • Mismating protection: Yes
  • Note on mismating protection: All WINSTA® components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180
c.) plugging while laterally staggeredd.) plugging one pole
  • Locking lever: Can be retrofitted
  • Locking of plug-in connection: Locking lever
  • Hinweis zur Verriegelung: All connectors for mounted installations (snap-in versions for lighting fixtures or devices, all types of PCB and distribution connectors) are factory-equipped with locking levers to ensure plugs and sockets are securely locked. Additional locking levers are only required for flying leads (plug/socket).
  • Strain relief: Strain relief housing

Material Data

  • Color: Light gray
  • Insulation material: Polyamide (PA66)
  • Fire class per EN 50575: Eca
  • Clamping spring material: Chrome nickel spring steel (CrNi)
  • Contact material: Copper alloy (surface-treated)
  • Fire load: 0.150 MJ
  • Weight: 5.000 g

Environmental Requirements

  • Processing temperature: -5 … +40 °C
  • Continuous operating temperature: -35 … +85 °C
  • Note on continuous operating temperature: Insulating parts for temperatures ≤ 105 °C

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: CH
  • GTIN: 4045454267476
  • Customs tariff number Sales Organisation Germany: 85366990990
: *
: *
: *
