WAGO 771-8965/107-202

771-8965/107-202 WAGO 771-8965/107-202

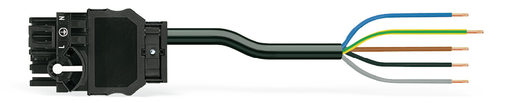

WAGO 771-8965/107-202
Part # 771-8965/107-202
Manufacturer WAGO
Condition New
Price: $ 44.28

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
DIST CONN 2M 5x2.5 W/PHAS W/CONN STR
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
Divider with phase selection free end 5 pole

Features

  • pluggable installation connectors with protection against mismating
  • for automation controllers
  • ready to install and use immediately
  • quick replacement of defective units during ongoing operation

Approvals

  • DEKRA Certification B.V., CCA, NTR NL-7355, EN 61535
  • DEKRA Certification B.V., KEMA/KEUR, 2179129.01, EN 61535

Specifications

Notes

  • Note: Cables with a different fire class can be found in the eShop.

Ratings Per Iec/En

  • Ratings per: IEC/EN 60664-1
  • Nominal voltage (III/3): 400 V
  • Rated surge voltage (III/3): 6 kV
  • Rated current: 20 A
  • Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3

Ratings Per Ul

  • Hinweis für den amerikanischen Markt: Some versions may also be used for current interruption in accordance with the UL certificate in select applications with currents below 16 A and voltages up to 600 V. For further information, please contact your local sales office.

Connection 1

  • Strip length: 9 mm / 0.35 inch
  • Pole No.: 5
  • Sheathed cable diameter: 11.2 … 13.9 mm
  • Wire cross-section: 2.5 mm²
  • Strip length (outer insulation): 55 mm
  • Connection type: Distribution connector with phase selection - Free end

Connection 2

  • Pole number 2: 3

Physical Data

  • Pin spacing: 10 mm / 0.394 inch
  • Total length: 2 m

Mechanical Data

  • Mating force of a plug-in connection: Approx. 20 … 70 N (depending on pole number)
  • Retention force of a plug-in connection: When locked: > 80N
  • Unmating force of a plug-in connection: When unlocked: approx. 20 … 70 N (depending on pole number)
  • Number of mating cycles: 200, without resistive load
  • Connection type: Distribution connector with phase selection - Free end
  • Type of pre-assembled cable: Connecting cable
  • Cable type: H05VV-F 5G2.5
  • Protection class: IP20; When mated: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!)

Plug-In Connection

  • Mismating protection: Yes
  • Note on mismating protection: All WINSTA® components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180
c.) plugging while laterally staggeredd.) plugging one pole
  • Locking lever: Can be retrofitted
  • Locking of plug-in connection: Locking lever

Material Data

  • Color: White
  • Insulation material: Polyamide (PA66)
  • Fire class per EN 50575: Eca
  • Contact material: Copper or copper alloy (surface-treated)
  • Fire load: 60.994 MJ
  • Halogen-free: No
  • Sheath material: PVC
  • Weight: 531.827 g

Environmental Requirements

  • Processing temperature: -5 … +40 °C
  • Continuous operating temperature: -35 … +85 °C
  • Note on continuous operating temperature: PVC cable for temperatures ≤ 70 °C (including halogen-free)Insulating parts for temperatures ≤ 105 °C

Commercial Data

  • Packaging type: Not packed
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4045454559687
  • Customs tariff number Sales Organisation Germany: 85444290900
: *
: *
: *
