WAGO » Winsta » Series 770 » WAGO 770-619

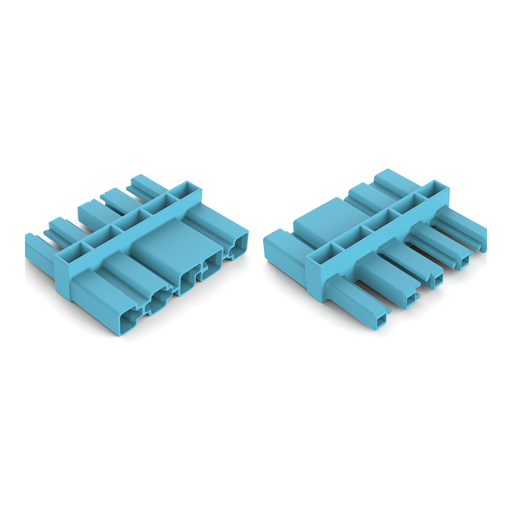

WAGO 770-619

770-619 WAGO 770-619

WAGO 770-619
Part # 770-619
Manufacturer WAGO
GTIN 4044918524179
Condition New
Price: $ 3.84

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
COUPLINE DEV. 5-POL BLUE
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
Socket 1 x plug / 1 x socket 5 pole

Features

  • protection against mismating eliminates errors
  • pre-assembled versions
  • with I coding for use in building automation (lighting control)
  • flexible installation to save space
  • rapid, structured electrical installation

Approvals

  • Lloyds Register, LR, 02/20050 (E6), IEC 61984
  • DEKRA Certification B.V., CCA, 2173495.02, EN 61535
  • Underwriters Laboratories Inc., cURus, E45171, UL 1977
  • Det Norske Veritas, Germanischer Lloyd, DNV GL, TAE00001Z6
  • American Bureau of Shipping, ABS, 19-HG1868589-PDA
  • DEKRA Certification B.V., CCA, NL-32105, IEC 61535

Specifications

Notes

  • Note: At least one snap-in connector without a locking lever is required on one side when connecting two lights directly via intermediate coupler.

Ratings Per Iec/En

  • Ratings per: IEC/EN 60664-1
  • Nominal voltage (III/3): 400 V
  • Rated surge voltage (III/3): 6 kV
  • Rated current: 25 A
  • Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3

Ratings Per Ul

  • Hinweis für den amerikanischen Markt: Some versions may also be used for current interruption in accordance with the UL certificate in select applications with currents below 16 A and voltages up to 600 V. For further information, please contact your local sales office.
  • Rated voltage UL 1977: 600 V
  • Rated current UL 1977: 23 A

Connection 1

  • Pole No.: 5

Physical Data

  • Pin spacing: 10 mm / 0.394 inch
  • Width: 47 mm / 1.85 inch
  • Height: 11.6 mm / 0.457 inch
  • Depth: 40 mm / 1.575 inch

Mechanical Data

  • Application: DALI, Lighting Management
  • Coding: I
  • Marking: Plain
  • Mating force of a plug-in connection: Approx. 20 … 70 N (depending on pole number)
  • Retention force of a plug-in connection: When locked: > 80 N
  • Unmating force of a plug-in connection: Unlocked: approx. 20 … 70 N (depending on pole number)
  • Number of mating cycles: 200, without resistive load
  • Distributor type: Intermediate coupler
  • Protection class: IP20; When mated: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!)

Plug-In Connection

  • Mismating protection: Yes
  • Note on mismating protection: All WINSTA® components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180
c.) plugging while laterally staggeredd.) plugging one pole
  • Locking lever: No
  • Locking of plug-in connection: Locking lever
  • Hinweis zur Verriegelung: All connectors for mounted installations (snap-in versions for lighting fixtures or devices, all types of PCB and distribution connectors) are factory-equipped with locking levers to ensure plugs and sockets are securely locked. Additional locking levers are only required for flying leads (plug/socket).

Material Data

  • Color: Blue
  • Insulation material: Polyamide (PA66)
  • Contact material: Copper or copper alloy (surface-treated)
  • Fire load: 0.174 MJ
  • Weight: 9.584 g

Environmental Requirements

  • Processing temperature: -5 … +40 °C
  • Continuous operating temperature: -35 … +85 °C
  • Note on continuous operating temperature: Insulating parts for temperatures ≤ 105 °C

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4044918524179
  • Customs tariff number Sales Organisation Germany: 85366990990
: *
: *
: *
