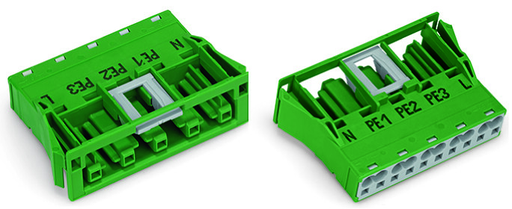

WAGO 770-2325

770-2325 WAGO 770-2325

WAGO 770-2325
Part # 770-2325
Manufacturer WAGO
GTIN 4044918673532
Condition New
Price: $ 3.84

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
SOCKET SNAP-IN TYPE 5-POL GREEN
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
socket snap in type 5 pole

Features

  • effective protection against mismating
  • simple circuits
  • flexible installation to save space
  • quick replacement of defective units during ongoing operation

Approvals

  • American Bureau of Shipping, ABS, 19-HG1868589-PDA
  • DEKRA Certification B.V., CCA, NL-32105, IEC 61535
  • Lloyds Register, LR, 02/20050 (E6), IEC 61984
  • Underwriters Laboratories Inc., cURus, E45171, UL 1977
  • Det Norske Veritas, Germanischer Lloyd, DNV GL, TAE00001Z6
  • DEKRA Certification B.V., CCA, 2173495.02, EN 61535

Specifications

Ratings Per Iec/En

  • Ratings per: IEC/EN 60664-1
  • Nominal voltage (III/3): 400 V
  • Rated surge voltage (III/3): 6 kV
  • Rated current: 32 A
  • Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3

Ratings Per Ul

  • Hinweis für den amerikanischen Markt: Some versions may also be used for current interruption in accordance with the UL certificate in select applications with currents below 16 A and voltages up to 600 V. For further information, please contact your local sales office.
  • Rated voltage UL 1977: 600 V
  • Rated current UL 1977: 23 A

Connection 1

  • Connection technology: Push-in CAGE CLAMP®
  • Actuation type: Operating tool || Push-in
  • Nominal cross-section: 4 mm²
  • Solid conductor: 0.5 … 4 mm² / 20 … 12 AWG
  • Solid conductor; push-in termination: 1.5 … 4 mm² / 16 … 12 AWG
  • Stranded conductor: 0.5 … 2.5 mm² / 20 … 14 AWG
  • Fine-stranded conductor: 0.5 … 4 mm² / 20 … 12 AWG
  • Fine-stranded conductor; with insulated ferrule: 0.25 … 1.5 mm² / 20 … 16 AWG
  • Fine-stranded conductor; with uninsulated ferrule: 0.25 … 2.5 mm² / 20 … 14 AWG
  • Fine-stranded conductor; with ferrule; push-in termination: 1.5 mm² / 16 AWG
  • Strip length: 9 mm / 0.35 inch
  • Pole No.: 5
  • Conductor entry direction to mating direction: 0 °

Physical Data

  • Pin spacing: 10 mm / 0.394 inch
  • Width: 55.5 mm / 2.185 inch
  • Height: 18.5 mm / 0.728 inch
  • Depth: 37.5 mm / 1.476 inch

Mechanical Data

  • Application: For "Clean Ground" applications
  • Coding: Q
  • Marking: N PE1 PE2 PE3 L
  • Potentialkennzeichnung: N PE1 PE2 PE3 L
  • Mating force of a plug-in connection: Approx. 20 … 70 N (depending on pole number)
  • Retention force of a plug-in connection: Locked: > 80 N
  • Unmating force of a plug-in connection: Unlocked: approx. 20 … 70 N (depending on pole number)
  • Number of mating cycles: 200, without resistive load
  • Housing sheet thickness: 0.5 … 2 mm / 0.02 … 0.079 inch
  • Mounting type: Snap-in
  • Protection class: IP20; When mated: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!)

Plug-In Connection

  • Contact type (pluggable connector): Female connector/socket
  • Connector (connection type): For conductor
  • Mismating protection: Yes
  • Note on mismating protection: All WINSTA® components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180
c.) plugging while laterally staggeredd.) plugging one pole
  • Locking lever: Yes
  • Locking of plug-in connection: Locking lever
  • Hinweis zur Verriegelung: All connectors for mounted installations (snap-in versions for lighting fixtures or devices, all types of PCB and distribution connectors) are factory-equipped with locking levers to ensure plugs and sockets are securely locked. Additional locking levers are only required for flying leads (plug/socket).

Material Data

  • Color: Green
  • Insulation material: Polyamide (PA66)
  • Clamping spring material: Chrome nickel spring steel (CrNi)
  • Contact material: Copper or copper alloy (surface-treated)
  • Fire load: 0.344 MJ
  • Weight: 18.460 g

Environmental Requirements

  • Processing temperature: -5 … +40 °C
  • Continuous operating temperature: -35 … +85 °C
  • Note on continuous operating temperature: Insulating parts for temperatures ≤ 105 °C

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4055143594820
  • Customs tariff number Sales Organisation Germany: 85366990990
: *
: *
: *
