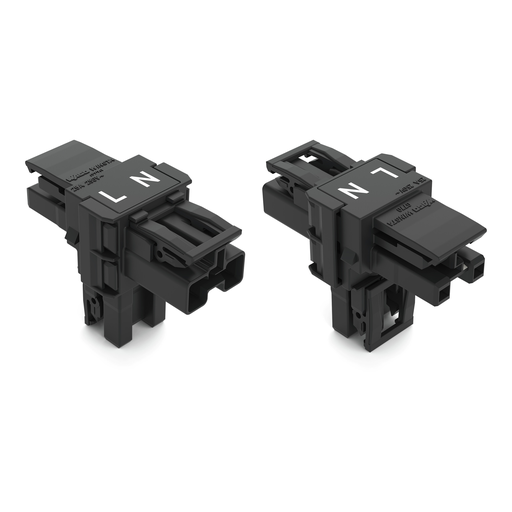

WAGO 770-1615

770-1615 WAGO 770-1615

WAGO 770-1615
Part # 770-1615
Condition New
Price: $ 3.57

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
T-distribution connector
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
T-distribution connector

Features

  • protection against mismating eliminates errors
  • pre-assembled versions
  • with A coding for a large number of uses
  • flexible installation to save space
  • quick replacement of defective units during ongoing operation

Approvals

  • Underwriters Laboratories Inc., cURus, E45171, UL 1977

Specifications

Ratings Per Iec/En

  • Ratings per: IEC/EN 60664-1
  • Nominal voltage (III/3): 250 V
  • Rated surge voltage (III/3): 4 kV
  • Rated current: 25 A
  • Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3

Ratings Per Ul

  • Hinweis für den amerikanischen Markt: Some versions may also be used for current interruption in accordance with the UL certificate in select applications with currents below 16 A and voltages up to 600 V. For further information, please contact your local sales office.
  • Rated voltage UL 1977: 600 V
  • Rated current UL 1977: 23 A

Connection 1

  • Pole No.: 2

Physical Data

  • Pin spacing: 10 mm / 0.394 inch
  • Width: 23.5 mm / 0.925 inch
  • Height: 36.1 mm / 1.421 inch
  • Depth: 48.9 mm / 1.925 inch

Mechanical Data

  • Application: General mains applications
  • Coding: A
  • Marking: L N
  • Potentialkennzeichnung: L N
  • Mating force of a plug-in connection: Approx. 20 … 70 N (depending on pole number)
  • Retention force of a plug-in connection: When locked: > 80 N
  • Unmating force of a plug-in connection: Unlocked: approx. 20 … 70 N (depending on pole number)
  • Number of mating cycles: 200, without resistive load
  • Distributor type: T-distribution connector
  • Protection class: IP20; When mated: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!)
  • Suitable: For flying leads

Plug-In Connection

  • Mismating protection: Yes
  • Note on mismating protection: All WINSTA® components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180
c.) plugging while laterally staggeredd.) plugging one pole
  • Locking lever: Yes
  • Locking of plug-in connection: Locking lever
  • Hinweis zur Verriegelung: All connectors for mounted installations (snap-in versions for lighting fixtures or devices, all types of PCB and distribution connectors) are factory-equipped with locking levers to ensure plugs and sockets are securely locked. Additional locking levers are only required for flying leads (plug/socket).
  • Number of locking levers: 3

Material Data

  • Color: Black
  • Insulation material: Polyamide (PA66)
  • Contact material: Copper or copper alloy (surface-treated)
  • Fire load: 0.236 MJ
  • Weight: 11.464 g

Environmental Requirements

  • Processing temperature: -5 … +40 °C
  • Continuous operating temperature: -35 … +85 °C
  • Note on continuous operating temperature: Insulating parts for temperatures ≤ 105 °C

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4050821531180
  • Customs tariff number Sales Organisation Germany: 85366990990
: *
: *
: *
