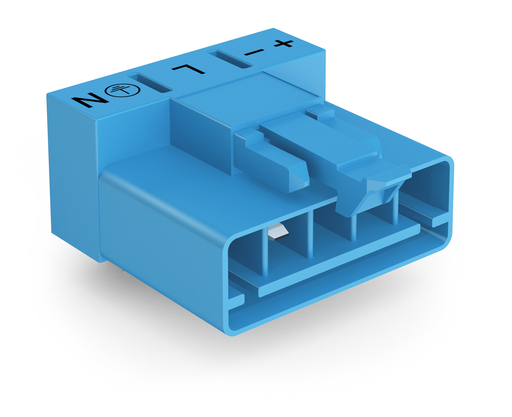

WAGO 890-3115/011-000

890-3115/011-000 WAGO 890-3115/011-000

WAGO 890-3115/011-000
Part # 890-3115/011-000
Manufacturer Wago
GTIN 4050821695967
Condition New
Price: $ 3.30

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
Plug for PCBs angled 5-pole
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
Plug for PCBs angled 5-pole

Features

  • effective protection against mismating
  • consistent IP40 protection
  • for intelligent, easy lighting installation
  • quick replacement of defective units during ongoing operation

Approvals

  • Det Norske Veritas, Germanischer Lloyd, DNV GL, TAE00001Z6
  • DEKRA Certification B.V., CCA, 71-11299, EN 61535
  • American Bureau of Shipping, ABS, 19-HG1869855-PDA, Steel Vessel Rules
  • Lloyds Register, LR, 08/20047 (E2), EN 61535
  • Underwriters Laboratories Inc., cURus, E45171, UL 1977
  • DEKRA Certification B.V., CCA, NL-64352, IEC 61535

Specifications

Ratings Per Iec/En

  • Ratings per: IEC/EN 60664-1
  • Nominal voltage (III/3): 250 V
  • Rated surge voltage (III/3): 4 kV
  • Rated current: 16 A
  • Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3

Ratings Per Ul

  • Hinweis für den amerikanischen Markt: Some versions may also be used for current interruption in accordance with the UL certificate in select applications with currents below 5 A and voltages up to 600 V. For further information, please contact your local sales office.
  • Rated voltage UL 1977: 600 V
  • Rated current UL 1977: 12 A

Connection 1

  • Pole No.: 5

Physical Data

  • Pin spacing: 4.4 mm / 0.173 inch
  • Width: 23.6 mm / 0.929 inch
  • Height: 15.7 mm / 0.618 inch
  • Height from the surface: 12.2 mm / 0.48 inch
  • Depth: 28.4 mm / 1.118 inch
  • Solder pin length: 3.5 mm
  • Solder pin dimensions: 1 x 0.8 mm
  • Drilled hole diameter with tolerance: 1.3 (+0.1) mm

Mechanical Data

  • Application: DALI, Lighting Management
  • Coding: I
  • Marking: N ⏚ L - +
  • Potentialkennzeichnung: N ⏚ L - +
  • Mating force of a plug-in connection: Approx. 20 … 70 N (depending on pole number)
  • Retention force of a plug-in connection: Locked: > 80 N
  • Unmating force of a plug-in connection: Unlocked: approx. 20 … 70 N (depending on pole number)
  • Number of mating cycles: 200, without resistive load
  • Design: Angled

Plug-In Connection

  • Contact type (pluggable connector): Male connector/plug
  • Connector (connection type): For PCB
  • Mismating protection: Yes
  • Note on mismating protection: All WINSTA® components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180
c.) plugging while laterally staggeredd.) plugging one pole
  • Mating direction to the PCB: 0 °
  • Locking lever: Yes
  • Locking of plug-in connection: Locking lever
  • Hinweis zur Verriegelung: All connectors for mounted installations (snap-in versions for lighting fixtures or devices, all types of PCB and distribution connectors) are factory-equipped with locking levers to ensure plugs and sockets are securely locked. Additional locking levers are only required for flying leads (plug/socket).

Pcb Contact

  • PCB Contact: THT
  • Solder pin arrangement: 2 in-line solder pins/pole
  • Number of solder pins per potential: 2

Material Data

  • Color: Blue
  • Insulation material: Polyamide (PA66)
  • Clamping spring material: Chrome nickel spring steel (CrNi)
  • Contact material: Copper or copper alloy (surface-treated)
  • Fire load: 0.000 MJ
  • Weight: 4.982 g

Environmental Requirements

  • Processing temperature: -5 … +40 °C
  • Continuous operating temperature: -35 … +85 °C
  • Note on continuous operating temperature: Insulating parts for temperatures ≤ 105 °C

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: PL
  • GTIN: 4050821695967
  • Customs tariff number Sales Organisation Germany: 85366990990
: *
: *
: *
