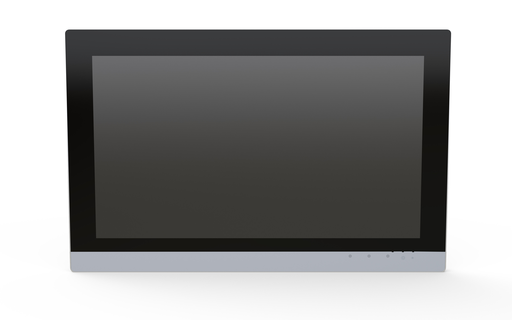

Features

• 2 x ETHERNET port for connecting to field devices and the engineering tool
• 2 x USB port for optional connection of a USB stick, mouse or keyboard
• Audio interface for connecting a headphone or loudspeaker

Approvals

• Underwriters Laboratories Inc., UL, E175199, UL 61010-2-201

Specifications

Technical Data

• Display diagonal: 54.7 cm (21.5 Inches)
• Display: Resistive touchscreen
• Display colors: 16.7 million colors
• Graphics resolution: (1920 x 1080) px
• Contrast ratio: 1000:1
• Viewing angle (horizontal/vertical): 89° / 89°
• Brightness: 350 cd/m2
• Visualization: Webserver || Web Visu
• ETHERNET protocols: DHCP || DNS || FTP || FTPS || HTTP || HTTPS || SSH
• Communication: EtherNet/IPTM Adapter (slave), library for e!RUNTIME (prerequisite: e!RUNTIME PLC 600 license) || Modbus TCP Master/Slave (prerequisite: e!RUNTIME PLC 600 license) || EtherCAT Master, requires an additional license (prerequisite: e!RUNTIME PLC 600 license) || BACnet/IP, requires an additional license (prerequisite: e!RUNTIME PLC 600 license)
• Operating system: Real-time Linux (with RT-Preempt patch)
• Processor: ARM® Cortex® A9 Quadcore 1.0 GHz
• Programming environment: e!COCKPIT (based on CODESYS V3)
• Main memory (RAM): 2048 MB
• Internal memory (flash): 4096 MB
• Program memory: 32 MB
• Data memory: 128 MB
• Memory card type: MicroSD (max. 2 GB); microSDHC (max. 32 GB)
• Indicators: Three-color LED (red, green, blue)
• Controls: Resistive touch panel; 2 capacitive keys; proximity sensor
• Supply voltage: 24 VDC, SELV (18 … 31.2 V); with reverse voltage protection
• Operating power: 7.9 W, without USB load; 13.4 W, with USB load

Connection Data

• Connection technology: communication/fieldbus: Modbus TCP: 2 x RJ-45; 2 x USB 2.0 host (type A)
• Connection technology: supply: 1 x included 734-103 female connector featuring three CAGE CLAMP® connections

Physical Data

• Width: 554 mm / 21.811 inch
• Height: 358 mm / 14.094 inch
• Depth: 58 mm / 2.283 inch
• Panel cutout (W x H): (540 x 344) mm

Mechanical Data

• Weight: 5400.000 g

Environmental Requirements

• Surrounding air temperature (operation): 0 … 45 °C (when mounted vertically; −0 … +40 °C, other mounting positions)
• Surrounding air temperature (storage): -20 … 60 °C
• Protection type: IP65
• Note on protection type: IP65 (front side); IP20 (rear side), per EN 60529
• Relative humidity (without condensation): 90 %
• Mounting type: Clamping elements (included)
• Fire load: 0.000 MJ

Commercial Data

• Country of origin Sales Organisation Germany: DE
• GTIN: 4055144002812
• Customs tariff number Sales Organisation Germany: 84714100000
