Specifications

Technical Data

• Frequency band: Antenna: GSM (900 MHz)
• Supply voltage (sensor): 30 VDC; 150 mA (max.)
• Self consumption: Approx. 1.5 W at 230 VAC (for charged batteries and a TO-PASS® Module without sensors and heating); Heating: 8 W; Heating switch: ON at 5 °C, OFF at 15 °C
• Battery capacity: 24 V / 1.2 Ah / Annual maintenance required; Battery runtimes: approx. 24 hours at a 5-minute transmission cycle not including the supply of decentralized peripheral devices
• Supply voltage: 230 VAC; Recommended backup fuse: B-16A; C-10A
• Power consumption (max.): 42 W

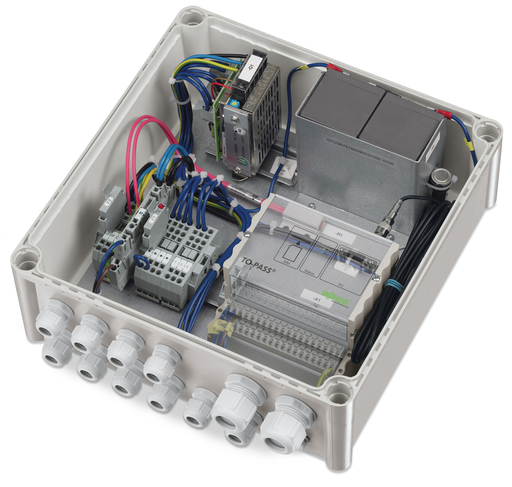

• Scope of delivery: IP66 housing with integrated GSM antenna; Power supply 230 VAC to 30 VDC; 2 batteries; Terminal block connections; Cables; Heater

Physical Data

• Width: 280 mm / 11.024 inch
• Height: 130 mm / 5.118 inch
• Depth: 310 mm / 12.205 inch

Mechanical Data

• Mounting type: 4 x drilled holes (7 mm diameter) || Protected wall-mount (no direct sunlight)
• Cable bushings (number): 10
• Cable bushings (type): M16
• Number of cable bushings (2): 2
• Cable bushings, type (2): M25

Material Data

• Housing material: Polycarbonate
• Fire load: 4.546 MJ
• Weight: 3644.478 g

Environmental Requirements

• Surrounding air temperature (operation): -4 … 32 °C
• Protection type: IP66
• EMC immunity to interference: Per EN 61000-6-2
• EMC emission of interference: Per EN 61000-6-4

Commercial Data

• Packaging type: Not packed
• Country of origin Sales Organisation Germany: DE
• GTIN: 4045454663551
• Customs tariff number Sales Organisation Germany: 85371091990
