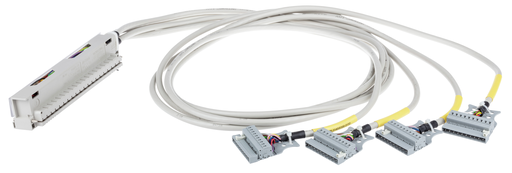

System cable; for Schneider Modicon Quantum; 2 x 16 digital inputs or outputs for higher voltages; Length: 2 m; Conductor cross-section: 0.34 mm²
Specifications
Notes
Note: If less than 3 channels used at the same time, the maximum current per wire 2 A and up to 5 A (amb. T 30 °C) or 3.5 A (amb. T 50 °C) on the power supply pins N/L. If more than 3 channels used at the same time, the maximum current per wire 0.75 A and up to 5 A (amb. T 30 °C) or 3.5 A (amb. T 50 °C) on the power supply pins N/L.
Electrical Data
Inputs/outputs: 2 x 16 digital inputs or outputs; for higher voltages
Operating voltage: ≤ AC/DC 250 V
Current per wire (max.): 0.75 A
Connection Data
Compatible PLC Modules: Schneider Modicon Quantum
Compatible PLC I/O Card Types: 140 DAI 340 00 || 140 DAI 353 00 || 140 DAI 440 00 || 140 DAI 453 00 || 140 DAI 540 00 || 140 DAI 543 00 || 140 DAI 553 00 || 140 DAI 740 00 || 140 DAI 753 00 || 140 DAO 840 00 || 140 DAO 840 10 || 140 DRA 840 00
Connection type (1): System
Pole number 1: 10
Pluggable connectors: WAGO 231 Series
Connection type 2: System
Pole number 2: 10
Connector 2: WAGO 231 Series
Connection type (3): System
Pole number 3: 10
Connector 3: WAGO 231 Series
Connection type (4): System
Pole number (4): 10
Connector 4: WAGO 231 Series
Anschlusstyp 5: System
Pole number (5): 40
Connector 5: Schneider 140XTS00200
Cable type: LiYY
Wire cross-section: 0.34 mm²
Color code: Per DIN VDE 47100
Physical Data
Cable length: 2 m
Material Data
Fire load: 0.000 MJ
Weight: 1408.000 g
Environmental Requirements
Surrounding air temperature (operation): -20 … 50 °C
Commercial Data
Packaging type: Bag
Country of origin Sales Organisation Germany: FR
GTIN: 4055143980241
Customs tariff number Sales Organisation Germany: 85444290900
