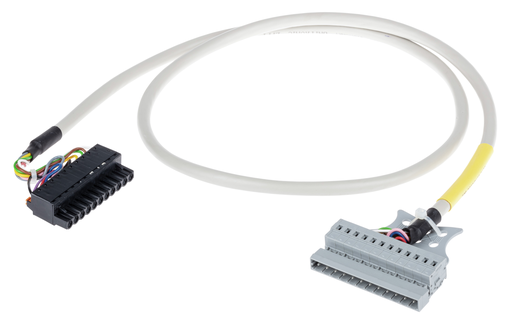

System cable; for Schneider Modicon TM3; 8 digital inputs for higher voltages; Length: 3 m; Conductor cross-section: 0.34 mm²
Specifications
Notes
Note: If less than 3 channels used at the same time, the maximum current per wire 2 A and up to 5 A (amb. T 30 °C) or 3.5 A (amb. T 50 °C) on the power supply pins N/L. If more than 3 channels used at the same time, the maximum current per wire 0.75 A and up to 5 A (amb. T 30 °C) or 3.5 A (amb. T 50 °C) on the power supply pins N/L.
Electrical Data
Inputs/outputs: 8 digital inputs; for higher voltages
Operating voltage: ≤ AC/DC 250 V
Current per wire (max.): 0.75 A
Connection Data
Compatible PLC Modules: Schneider Modicon TM3
Compatible PLC I/O Card Types: TM3 DI8A
Connection type (1): System
Pole number 1: 12
Pluggable connectors: WAGO 231 Series
Connection type 2: System
Pole number 2: 11
Connector 2: TM3 DI8A
Cable type: LiYY
Wire cross-section: 0.34 mm²
Color code: Per DIN VDE 47100
Physical Data
Cable length: 3 m
Material Data
Fire load: 0.000 MJ
Weight: 429.000 g
Environmental Requirements
Surrounding air temperature (operation): -20 … 50 °C
Commercial Data
Packaging type: Bag
Country of origin Sales Organisation Germany: FR
GTIN: 4055143979931
Customs tariff number Sales Organisation Germany: 85444290900
