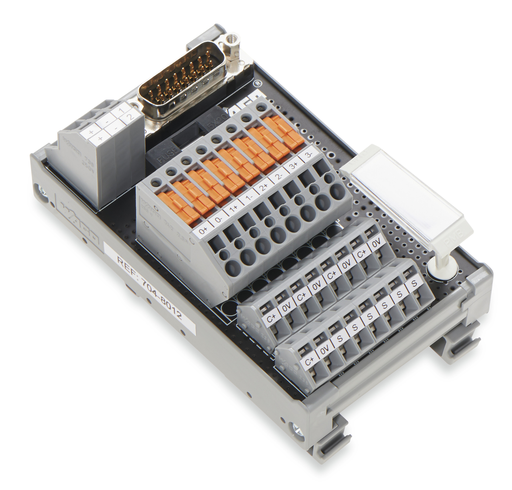

Specifications

Electrical Data

• Inputs/outputs: 4-channel analog input or output
• Circuit type: 2-wire connection || 4-wire connection
• Operating voltage: ≤48 VDC
• Limiting continuous current: 1 A
• Internal fuse: Supply: 2 A
• Specialty functions: With disconnect/test terminal blocks

Safety And Protection

• Rated voltage: 50 V
• Rated surge voltage: 0.8 kV
• Pollution degree: 2

Connection Data

• Compatible PLC Modules: Siemens S7-300 || Siemens S7-1500 || GE Fanuc 9030 || Schneider Modicon TM3 || Schneider TSX || Schneider Modicon M340 || Schneider Modicon Quantum || Rockwell Compact Logix || Rockwell Control Logix || WAGO I/O System 753
• Compatible PLC I/O Card Types: 6ES7 331-7KB02-0AB0 || 6ES7 331-7KB81-0AB0 || 6ES7 331-7RD00-0AB0 || 6ES7 332-5HB01-0AB0 || 6ES7 332-5HB81-0AB0 || 6ES7 332-5HD01-0AB0 || 6ES7 332-7ND02-0AB0 || 6ES7 531-7QD00-0AB0 || 6ES7 532-5HD00-0AB0 || 6ES7 532-5ND00-0AB0 || IC693 ALG220 || IC693 ALG221 || TM3 AI2H(G) || TM3 AI4(G) || TM3 TI4(G) || TM3 AQ2(G) || TM3 AQ4(G) || TM3 TM3(G) || TSX ASZ 200 || TSX ASZ 401 || TSX AEY 414 || TSX ASY 410 || 140 ACO 020 00 || BMX AMI 0410 || BMX AMO 0210 || BMX AMO 0410 || 1769 - IF4 || 1769 - IF4I || 1769 - IF8 || 1769 - OF2 || 1769 - OF4 || 1769 - OF4CI || 1769 - OF4VI || 1756 - OF4 || 753-453 (x1) || 753-455 (x1) || 753-457 (x1) || 753-459 (x1) || 753-553 (x1) || 753-555 (x1) || 753-557 (x1) || 753-559 (x1)
• Connection type (1): System
• Pole number 1: 15
• Pluggable connectors: D-sub male connector
• Mating direction: Vertical
• Connection type 2: Field
• Pole number 2: 8
• Design 2: PCB terminal blocks
• WAGO Connector 2: WAGO 742 Series
• Solid conductor 2: 0.08 … 2.5 mm² / 28 … 12 AWG
• Fine-stranded conductor 2: 0.08 … 2.5 mm² / 28 … 12 AWG
• Strip length 2: 8 … 9 mm / 0.31 … 0.35 inch
• Connection type (3): Field
• Pole number 3: 16
• Design 3: PCB terminal blocks (double-row)
• WAGO Connector 3: WAGO 236 Series
• Solid conductor 3: 0.08 … 2.5 mm² / 28 … 12 AWG
• Fine-stranded conductor (3): 0.08 … 2.5 mm² / 28 … 12 AWG
• Strip length 3: 5 … 6 mm / 0.2 … 0.24 inch
• Connection type (4): Power supply
• Pole number (4): 6
• Design (4): PCB terminal blocks (double-deck)
• Connection technology 4: CAGE CLAMP®
• WAGO Connector (4): WAGO 736 Series
• Solid conductor 4: 0.08 … 2.5 mm² / 28 … 12 AWG
• Fine-stranded conductor (4): 0.08 … 2.5 mm² / 28 … 12 AWG
• Strip length (4): 5 … 6 mm / 0.2 … 0.24 inch
• Note (conductor cross-section): 12 AWG: THHN, THWN

Physical Data

• Width: 66 mm / 2.598 inch
• Height: 105 mm / 4.134 inch
• Depth from upper edge of DIN-rail: 50 mm / 1.969 inch

Mechanical Data

• Mounting type: DIN-35 rail

Material Data

• Fire load: 1.578 MJ
• Weight: 131.000 g

Environmental Requirements

• Surrounding air temperature (operation): -20 … 50 °C
• Surrounding air temperature (storage): -40 … 70 °C
• Relative humidity: ≤ 85% (non-condensing)

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: FR
• GTIN: 4050821115441
• Customs tariff number Sales Organisation Germany: 85366990990
