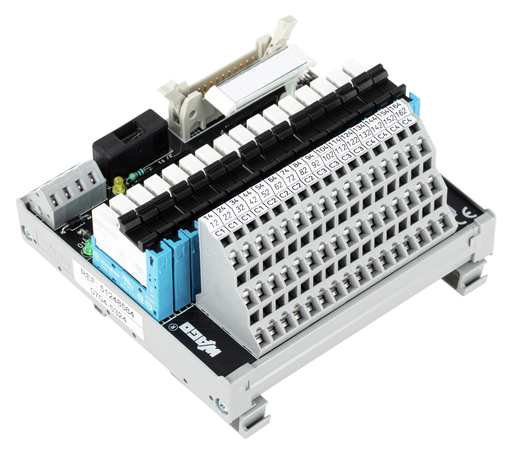

WAGO 704-5324

704-5324 WAGO 704-5324

WAGO 704-5324
Part # 704-5324
Manufacturer Wago
Condition New
Price: $ 994.80

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
Interface module for system wiring; Pluggable connector per DIN 41651; Male connector; 20-pole; 16-channel relay output; 1 changeover contact; Double-deck PCB terminal blocks; in mounting carrier
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
Interface module for system wiring; Pluggable connector per DIN 41651; Male connector; 20-pole; 16-channel relay output; 1 changeover contact; Double-deck PCB terminal blocks; in mounting carrier

Specifications

Notes

  • Note: Independent of the relay used, the maximum continuous current of the common switchover contacts is 12 A.

Electrical Data

  • Inputs/outputs: 16-channel relay output
  • Nominal operating voltage: DC 24 V
  • Operating voltage range: ±10 %
  • Number of changeover/switchover contacts: 1
  • Limiting continuous current: 5 A
  • Switching voltage (max.): AC 250 V; DC 48 V
  • Switching power (resistive) (max.): AC 1250 VA; DC 50 W
  • Mechanical life: 10 x 106 switching operations
  • Status indicator: Green LED (channel) || Yellow LED (power supply)
  • Internal fuse: Supply: 1 A; Relay output: 1 A
  • WAGO Basic Relay: 857-152
  • Specialty functions: Common switchover contacts of 4 relays

Safety And Protection

  • Rated voltage: 50 V
  • Rated surge voltage: 0.8 kV
  • Pollution degree: 2
  • Dielectric strength, control/load circuit (AC, 1 min): 4 kVrms
  • Dielectric strength, load/load circuit (AC, 1 min): 1 kVrms

Connection Data

  • Compatible PLC Modules: Siemens S7-300 || Siemens S7-400 || Siemens S7-1500 || GE Fanuc 9030 || GE Fanuc RX3i || Schneider Modicon TM3 || Schneider TSX || Schneider Twido || Schneider Modicon M340 || Schneider Modicon Quantum || Rockwell Compact Logix || Rockwell Control Logix || WAGO I/O System 753 || WAGO I/O System 750 || Omron CJ1W
  • Compatible PLC I/O Card Types: 6ES7 313-5BE01-0AB0 || 6ES7 313-5BG04-0AB0 || 6ES7 313-6BE01-0AB0 || 6ES7 313-6BF03-0AB0 || 6ES7 313-6CE01-0AB0 || 6ES7 313-6CF03-0AB0 || 6ES7 314-6BF01-0AB0 || 6ES7 314-6BG03-0AB0 || 6ES7 314-6CF01-0AB0 || 6ES7 314-6CG03-0AB0 || 6ES7 322-1BH01-0AA0 || 6ES7 322-1BH10-0AA0 || 6ES7 322-1BH80-0AA0 || 6ES7 322-1BL00-0AA0 || 6ES7 322-1BP00-0AA0 || 6ES7 322-1EH01-0AA0 || 6ES7 322-8BH01/8BH10-0AB0 || 6ES7 323-1BL00-0AA0 || 6ES7 422-1BL00-0AA0 || 6ES7 511-1CK00-0AB0 || 6ES7 512-1CK00-0AB0 || 6ES7 522-1BH00-0AB0 || 6ES7 522-1BH01-0AB0 || 6ES7 522-1BH10-0AA0 || 6ES7 522-1BL00-0AB0 || 6ES7 522-1BL01-0AB0 || 6ES7 522-1BL10-0AA0 || 6ES7 523-1BL00-0AA0 || IC693 MDL740 || IC693 MDL742 || IC693 MDL753 || IC694 MDL753 || TM3 DQ16T(G) || TM3 DQ16TK || TM3 DQ32TK || TSX DSZ 32T2 || TSX DMZ 28DT || TSX DMZ 28DTK || TSX DMZ 64DTK || TSX DSY 16T2 || TSX DSY 32T2K || TSX DSY 64T2K || TSX DMY 28FK || TSX DMY 28RFK || TM2 DDO 16TK || TM2 DDO 32TK || BMX DDO 1602 || BMX DDO 3202K || BMX DDO 6402K || BMX DDM 3202K || 140 DDO 353 00 || 140 DDO 353 01 || 140 DDO 364 00 || 140 DVO 853 00 || 1769 - OB16 || 1769 - OB16P || 1769 - OB32 || 1769 - OB32T || 1756 - OB16E || 1756 - OB32 || 753-530 (x2) || 750-1500 || CJ1W-OD212 || CJ1W-OD232 || CJ1W-OD262 || CJ1W-MD232
  • Pole No.: 20
  • Connection type (1): System
  • Pole number 1: 20
  • Pluggable connectors: DIN 41651 male connector
  • Mating direction: Vertical
  • Connection type 2: Field
  • Pole number 2: 48
  • Design 2: PCB terminal blocks (triple-deck)
  • WAGO Connector 2: WAGO 737 Series
  • Solid conductor 2: 0.08 … 2.5 mm² / 28 … 12 AWG
  • Fine-stranded conductor 2: 0.08 … 2.5 mm² / 28 … 12 AWG
  • Strip length 2: 5 … 6 mm / 0.2 … 0.24 inch
  • Connection type (3): Supply
  • Pole number 3: 4
  • Design 3: PCB terminal blocks
  • WAGO Connector 3: WAGO 236 Series
  • Solid conductor 3: 0.08 … 2.5 mm² / 28 … 12 AWG
  • Fine-stranded conductor (3): 0.08 … 2.5 mm² / 28 … 12 AWG
  • Strip length 3: 5 … 6 mm / 0.2 … 0.24 inch

Physical Data

  • Width: 111 mm / 4.37 inch
  • Height: 105 mm / 4.134 inch
  • Depth from upper edge of DIN-rail: 65 mm / 2.559 inch

Mechanical Data

  • Mounting type: DIN-35 rail

Material Data

  • Contact material (relay): AgSnO2
  • Fire load: 12.720 MJ
  • Weight: 419.546 g

Environmental Requirements

  • Surrounding air temperature (operation): -25 … 40 °C
  • Surrounding air temperature (storage): -40 … 70 °C
  • Relative humidity: ≤ 85% (non-condensing)

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4055144025408
  • Customs tariff number Sales Organisation Germany: 85389091890
: *
: *
: *
