WAGO 704-5303

704-5303 WAGO 704-5303

WAGO 704-5303
Part # 704-5303
Manufacturer Wago
Condition New
Price: $ 497.40

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!

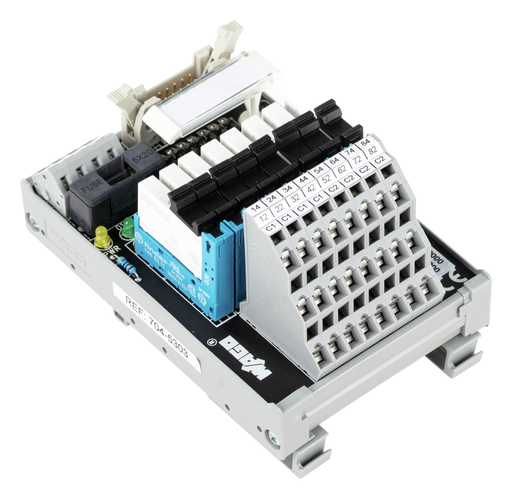

Interface module for system wiring; Pluggable connector per DIN 41651; Male connector; 10-pole; 8-channel relay output; 1 changeover contact; Triple-deck PCB terminal blocks; in mounting carrier
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
Interface module for system wiring; Pluggable connector per DIN 41651; Male connector; 10-pole; 8-channel relay output; 1 changeover contact; Triple-deck PCB terminal blocks; in mounting carrier

Specifications

Notes

  • Note: Independent of the relay used, the maximum continuous current of the common switchover contacts is 12 A.

Electrical Data

  • Inputs/outputs: 8-channel relay output
  • Nominal operating voltage: DC 24 V
  • Operating voltage range: ±10 %
  • Number of changeover/switchover contacts: 1
  • Limiting continuous current: 5 A
  • Switching voltage (max.): AC 250 V; DC 48 V
  • Switching power (resistive) (max.): AC 1250 VA; DC 50 W
  • Mechanical life: 10 x 106 switching operations
  • Status indicator: Green LED (channel) || Yellow LED (power supply)
  • Internal fuse: Supply: 1 A; Relay output: -
  • WAGO Basic Relay: 857-152
  • Specialty functions: Common switchover contacts of 4 relays

Safety And Protection

  • Rated voltage: 50 V
  • Rated surge voltage: 0.8 kV
  • Pollution degree: 2
  • Dielectric strength, control/load circuit (AC, 1 min): 4 kVrms
  • Dielectric strength, load/load circuit (AC, 1 min): 1 kVrms

Connection Data

  • Compatible PLC Modules: Siemens S7-300 || Siemens S7-1500 || GE Fanuc 9030 || Schneider TSX || Schneider Modicon M340 || Schneider Modicon Quantum || Schneider Modicon TM3 || Rockwell Compact Logix || WAGO I/O System 753 || WAGO I/O System 750 || Omron CJ1W
  • Compatible PLC I/O Card Types: 6ES7 322-1BF01-0AA0 || 6ES7 322-8BF00-0AB0 || 6ES7 323-1BH01-0AA0 || 6ES7 327-1BH00-0AB0 || 6ES7 326-2BF01-0AB0 || 6ES7 326-2BF10-0AB0 || 6ES7 522-1BF00-0AB0 || IC693 MDL730 || IC693 MDL732 || TM3 DQ8T(G) || TSX DSZ 04T22 || TSX DSZ 08T2 || TSX DSZ 08T2K || TSX DMZ 16DTK || TSX DSY 08T2 || BMX DDM 16022 || 140 DDM 390 00 || 1769 - OB8 || 753-530 (x1) || 750-1502 || CJ1W-OD204
  • Pole No.: 10
  • Connection type (1): System
  • Pole number 1: 10
  • Pluggable connectors: DIN 41651 male connector
  • Mating direction: Vertical
  • Connection type 2: Field
  • Pole number 2: 24
  • Design 2: PCB terminal blocks (triple-deck)
  • WAGO Connector 2: WAGO 737 Series
  • Solid conductor 2: 0.08 … 2.5 mm² / 28 … 12 AWG
  • Fine-stranded conductor 2: 0.08 … 2.5 mm² / 28 … 12 AWG
  • Strip length 2: 5 … 6 mm / 0.2 … 0.24 inch
  • Connection type (3): Supply
  • Pole number 3: 6
  • Design 3: PCB terminal blocks
  • WAGO Connector 3: WAGO 236 Series
  • Solid conductor 3: 0.08 … 2.5 mm² / 28 … 12 AWG
  • Fine-stranded conductor (3): 0.08 … 2.5 mm² / 28 … 12 AWG
  • Strip length 3: 5 … 6 mm / 0.2 … 0.24 inch

Physical Data

  • Width: 70 mm / 2.756 inch
  • Height: 105 mm / 4.134 inch
  • Depth from upper edge of DIN-rail: 65 mm / 2.559 inch

Mechanical Data

  • Mounting type: DIN-35 rail

Material Data

  • Contact material (relay): AgSnO2
  • Fire load: 1.178 MJ
  • Weight: 171.665 g

Environmental Requirements

  • Surrounding air temperature (operation): -25 … 40 °C
  • Surrounding air temperature (storage): -40 … 70 °C
  • Relative humidity: ≤ 85% (non-condensing)

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4055143982665
  • Customs tariff number Sales Organisation Germany: 85369010000
: *
: *
: *
