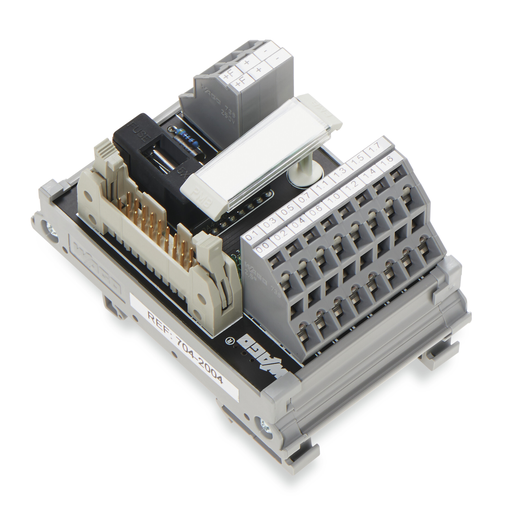

WAGO 704-2004

704-2004 WAGO 704-2004

WAGO 704-2004
Part # 704-2004
Condition New
Price: $ 236.20

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
IM-S
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
IM-S

Specifications

Electrical Data

  • Inputs/outputs: 16-channel digital input or output
  • Circuit type: 1-cond. connection
  • Nominal operating voltage: DC 24 V
  • Operating voltage range: ±10 %
  • Power consumption (status indication): 5 mA
  • Total current: 2 A
  • Limiting continuous current: 1 A
  • Status indicator: Green LED (channel) || Yellow LED (power supply)
  • Internal fuse: 2 A

Safety And Protection

  • Rated voltage: 50 V
  • Rated surge voltage: 0.8 kV
  • Pollution degree: 2

Connection Data

  • Compatible PLC Modules: WAGO I/O System 750 || WAGO I/O System 753 || Omron CJ1W || Rockwell Compact Logix || Rockwell Control Logix || Schneider Modicon Quantum || Schneider Modicon M340 || Schneider Twido || Schneider TSX || Schneider Modicon TM3 || GE Fanuc RX3i || GE Fanuc 9030 || Siemens S7-1500 || Siemens S7-400 || Siemens S7-300
  • Compatible PLC I/O Card Types: 6ES7 313-5BE01-0AB0 || 6ES7 313-5BG04-0AB0 || 6ES7 313-6BE01-0AB0 || 6ES7 313-6BF03-0AB0 || 6ES7 313-6CE01-0AB0 || 6ES7 313-6CF03-0AB0 || 6ES7 314-6BF01-0AB0 || 6ES7 314-6BG03-0AB0 || 6ES7 314-6CF01-0AB0 || 6ES7 314-6CG03-0AB0 || 6ES7 321-1BH02-0AA0 || 6ES7 321-1BH10-0AA0 || 6ES7 321-1BH80-0AA0 || 6ES7 321-1BL00-0AA0 || 6ES7 321-1BL80-0AA0 || 6ES7 321-1BP00-0AA0 || 6ES7 321-7BH01-0AB0 || 6ES7 321-7BH80-0AA0 || 6ES7 322-1EH01-0AA0 || 6ES7 322-8BH01/8BH10-0AB0 || 6ES7 323-1BL00-0AA0 || 6ES7 326-1BK01-0AB0 || 6ES7 326-1RF00-0AB0 || 6ES7 511-1CK00-0AB0 || 6ES7 512-1CK00-0AB0 || 6ES7 521-1BH00-0AA0 || 6ES7 521-1BH10-0AA0 || 6ES7 521-1BL00-0AB0 || 6ES7 521-1BL10-0AA0 || 6ES7 522-1BH00-0AB0 || 6ES7 522-1BH01-0AB0 || 6ES7 522-1BH10-0AA0 || 6ES7 522-1BL00-0AB0 || 6ES7 522-1BL01-0AB0 || 6ES7 522-1BL10-0AA0 || 6ES7 523-1BL00-0AA0 || 6ES7 526-2BF00-0AB0 || 6ES7 526-1BH00-0AB0 || 6ES7 421-7BH01-0AB0 || 6ES7 421-1BL01-0AA0 || 6ES7 422-7BL00-0AB0 || 6ES7 422-1BL00-0AA0 || IC693 MDL241 || IC693 MDL640 || IC693 MDL643 || IC693 MDL645 || IC693 MDL646 || IC693 MDL655 || IC693 MDL740 || IC693 MDL742 || IC693 MDL753 || IC694 MDL655 || IC694 MDL753 || TM3 DI16(G) || TM3 DI16K || TM3 DI32K || TM3 DQ16T(G) || TM3 DQ16TK || TM3 DQ32TK || TSX DEZ 12D2K || TSX DEZ 32D2 || TSX DSZ 32T2 || TSX DMZ 28DT || TSX DMZ 28DTK || TSX DMZ 64DTK || TSX DEY 16D2 || TSX DEY 16FK || TSX DEY 32D2K || TSX DEY 64D2K || TSX DSY 16T2 || TSX DSY 32T2K || TSX DSY 64T2K || TSX DMY 28FK || TSX DMY 28RFK || TM2 DDI 16DK || TM2 DDI 32DK || TM2 DDO 16TK || TM2 DDO 32TK || 140 DDI 353 00 || 140 DDI 364 00 || 140 DSI 353 00 || 140 DDO 353 00 || 140 DDO 353 01 || 140 DDO 364 00 || 140 DVO 853 00 || 140 DDM 390 00 || BMX DDI 1602 || BMX DDI 3202K || BMX DDI 6402K || BMX DDO 1602 || BMX DDO 3202K || BMX DDO 6402K || BMX DDM 3202K || 1769 - IQ16 || 1769 - IQ16F || 1769 - IQ32 || 1769 - IQ32T || 1769 - OB16 || 1769 - OB16P || 1769 - OB32 || 1769 - OB32T || 1756 - IB16I || 1756 - IB16ISOE || 1756 - IB32 || 1756 - OB16E || 1756 - OB16I || 1756 - OB16IS || 1756 - OB32 || 753-430 (x2) || 753-431 (x2) || 753-530 (x2) || 750-1502 || 750-1500 || 750-1400 || CJ1W-ID211 || CJ1W-ID231 || CJ1W-ID232 || CJ1W-ID261 || CJ1W-ID262 || CJ1W-IDP01 || CJ1W-INT01 || CJ1W-OD212 || CJ1W-OD232 || CJ1W-OD262 || CJ1W-MD232
  • Connection type (1): System
  • Pole number 1: 20
  • Pluggable connectors: DIN 41651 male connector
  • Mating direction: Vertical
  • Connection type 2: Field
  • Pole number 2: 16
  • Design 2: PCB terminal blocks (double-deck)
  • WAGO Connector 2: WAGO 736 Series
  • Solid conductor 2: 0.08 … 2.5 mm² / 28 … 12 AWG
  • Fine-stranded conductor 2: 0.08 … 2.5 mm² / 28 … 12 AWG
  • Strip length 2: 5 … 6 mm / 0.2 … 0.24 inch
  • Connection type (3): Supply
  • Pole number 3: 6
  • Design 3: PCB terminal blocks (double-deck)
  • WAGO Connector 3: WAGO 736 Series
  • Solid conductor 3: 0.08 … 2.5 mm² / 28 … 12 AWG
  • Fine-stranded conductor (3): 0.08 … 2.5 mm² / 28 … 12 AWG
  • Strip length 3: 5 … 6 mm / 0.2 … 0.24 inch
  • Note (conductor cross-section): 12 AWG: THHN, THWN

Physical Data

  • Width: 55 mm / 2.165 inch
  • Height: 85 mm / 3.346 inch
  • Depth from upper edge of DIN-rail: 50 mm / 1.969 inch

Mechanical Data

  • Mounting type: DIN-35 rail

Material Data

  • Fire load: 1.198 MJ
  • Weight: 80.000 g

Environmental Requirements

  • Surrounding air temperature (operation): -20 … 50 °C
  • Surrounding air temperature (storage): -40 … 70 °C
  • Relative humidity: ≤ 85% (non-condensing)

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: FR
  • GTIN: 4050821161998
  • Customs tariff number Sales Organisation Germany: 85366990990
: *
: *
: *
