WAGO 294-4002

294-4002 WAGO 294-4002

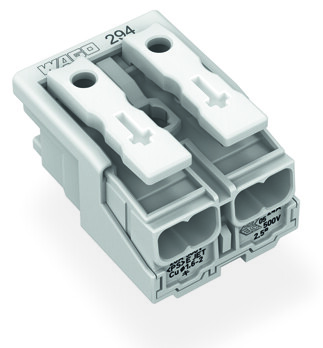

WAGO 294-4002
Part # 294-4002
Manufacturer WAGO
GTIN 4050821097594
Condition New
Price: $ 1.00

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
LIGHT CONNECTOR w/o GRND CONTACT 2P
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
LIGHT CONNECTOR w/o GRND CONTACT 2P

Features

  • External connection of solid, stranded and fine-stranded conductors
  • Universal conductor termination (AWG, metric)
  • Third contact at bottom
  • Strain relief plate can be retrofitted

Approvals

  • DEKRA Certification B.V., ENEC 05, 2128791.01, EN 60998

Specifications

Ratings Per Iec/En

  • Ratings per: IEC/EN 60998-1 || IEC/EN 60998-2-2
  • Ratings (note): Connection points
  • Nominal voltage (II/2): 500 V
  • Rated surge voltage (II/2): 4 kV
  • Rated current: 24 A
  • Ratings (note) 2: Connection points
  • Rated voltage (II/2) 2: 500 V
  • Rated surge voltage (II/2) 2: 4 kV
  • Rated current 2: 24 A
  • Rated current 3: 16 A
  • Legend (ratings): (II / 2) ≙ Overvoltage category II / Pollution degree 2

Connection 1

  • Connection type (1): External 1
  • Connection technology: Push-in CAGE CLAMP®
  • Number of connection points: 2
  • Actuation type: Operating tool || Push-button
  • Connectable conductor materials: Copper
  • Solid conductor: 0.5 … 2.5 mm² / 18 … 12 AWG
  • Solid conductor; push-in termination: 0.5 … 2.5 mm² / 18 … 12 AWG
  • Stranded conductor: 0.5 … 2.5 mm² / 18 … 14 AWG
  • Fine-stranded conductor: 0.5 … 2.5 mm² / 18 … 14 AWG
  • Fine-stranded conductor; with insulated ferrule: 0.5 … 1.5 mm² / 18 … 16 AWG
  • Fine-stranded conductor; with uninsulated ferrule: 0.5 … 1.5 mm² / 18 … 16 AWG
  • Fine-stranded conductor; with ferrule; push-in termination: 0.5 mm² / 18 AWG
  • Strip length: 8 … 9 mm / 0.31 … 0.35 inch
  • Pole No.: 2
  • Wiring direction: Side-entry wiring

Connection 2

  • Connection type 2: Internal 2
  • Connection technology 2: PUSH WIRE®
  • Number of connection points 2: 1
  • Solid conductor 2: 0.5 … 2.5 mm² / 18 … 14 AWG
  • Fine-stranded conductor; with insulated ferrule 2: 0.5 … 1 mm² / 18 … 16 AWG
  • Fine-stranded conductor; with uninsulated ferrule 2: 0.5 … 1.5 mm² / 18 … 14 AWG
  • Strip length 2: 8 … 9 mm / 0.31 … 0.35 inch

Connection 3

  • Connection type (3): Internal 3
  • Number of connection points 3: 1
  • Solid conductor 3: 0.5 … 1.5 mm² / 18 … 16 AWG
  • Fine-stranded conductor; with insulated ferrule 3: 0.5 … 0.75 mm² / 18 AWG
  • Fine-stranded conductor; with uninsulated ferrule 3: 0.5 … 1 mm² / 18 AWG

Connection 4

  • Connection type (4): Internal 4
  • Number of connection points 4: 1
  • Solid conductor 4: 0.5 … 0.75 mm² / 18 AWG

Physical Data

  • Pin spacing: 10 mm / 0.394 inch
  • Width: 20 mm / 0.787 inch
  • Height from the surface: 17 mm / 0.669 inch
  • Depth: 27.3 mm / 1.075 inch

Mechanical Data

  • Marking: Plain
  • Mounting type: Without snap-in mounting feet

Material Data

  • Color: White
  • Material group: IIIa
  • Insulation material: Polycarbonate (PC)
  • Flammability class per UL94: V0
  • Clamping spring material: Chrome nickel spring steel (CrNi)
  • Contact material: Electrolytic copper (ECu)
  • Contact plating: Tin-plated
  • Fire load: 0.121 MJ
  • Weight: 6.092 g

Environmental Requirements

  • Temperature stability: 120 °C
  • T marking: T85

Commercial Data

  • Packaging type: Lamination
  • Country of origin Sales Organisation Germany: CH
  • GTIN: 4050821097594
  • Customs tariff number Sales Organisation Germany: 85369010000
: *
: *
: *
