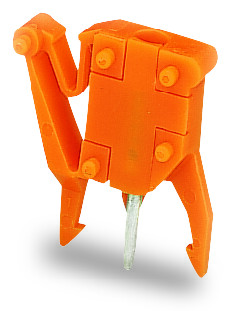

WAGO 249-113

249-113 WAGO 249-113

WAGO 249-113
Part # 249-113
Manufacturer WAGO
GTIN 4045454306847
Condition New
Price: $ 7.26

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
TEST SOCKET - 7.62MM/.3"
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
Test plug suitable for PCB terminal blocks, series 255, 256, 257 1 pole

Specifications

Ratings Per Iec/En

  • Ratings per: IEC/EN 60664-1
  • Rated voltage (III/2): 320 V
  • Rated surge voltage (III/2): 4 kV
  • Rated current: 6 A
  • Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Connection 1

  • Pole No.: 1

Physical Data

  • Pin spacing: 7.62 mm / 0.3 inch
  • Width: 7.62 mm / 0.3 inch
  • Height: 21.5 mm / 0.846 inch
  • Depth: 19.5 mm / 0.768 inch

Mechanical Data

  • Suitable: For PCB terminal blocks (255, 256, 257 Series); with socket for 2 mm and 2.3 mm Ø test plugs

Material Data

  • Color: Orange
  • Material group: I
  • Insulation material: Polyamide (PA66)
  • Flammability class per UL94: V0
  • Fire load: 0.000 MJ
  • Weight: 1.465 g

Environmental Requirements

  • Limit temperature range: -60 … +105 °C

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: CH
  • GTIN: 4045454306847
  • Customs tariff number Sales Organisation Germany: 85366990990
: *
: *
: *
