WAGO 862-9604

862-9604 WAGO 862-9604

WAGO 862-9604
Part # 862-9604
Manufacturer WAGO
GTIN 4044918511100
Condition New
Price: $ 2.28

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!

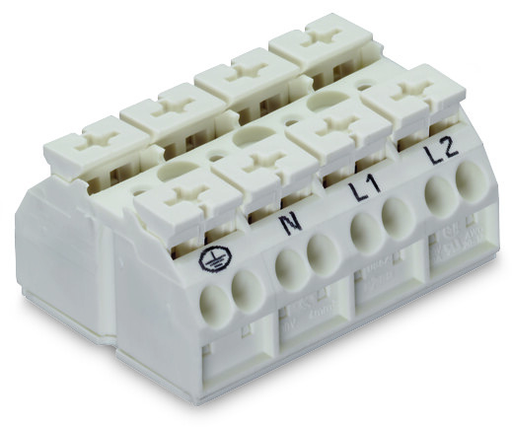

TB 4 POS WHITE PE-N-L1-L2 TOP W/ GRD
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
4-Conductor device connectors for fixing screw and nut 3 mm

Features

Approvals

  • Det Norske Veritas, Germanischer Lloyd, DNV GL, TAE00001V2
  • DEKRA Certification B.V., CCA, NTR NL 6912, EN 60947
  • Lloyds Register, LR, 91/20112 (E9), EN 60947
  • DEKRA Certification B.V., CCA, 2146425.01, EN 60947
  • DEKRA Certification B.V., CSA, 1505030, C22.2 No. 158
  • UL International Germany GmbH, ENEC 15, 143856-01, EN 60998
  • UL International Germany GmbH, UL, E45172, UL 1059

Specifications

Ratings Per Iec/En

  • Nominal voltage (III/3): 500 V
  • Rated surge voltage (III/3): 6 kV
  • Rated current: 32 A
  • Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3

Connection 1

  • Connection technology: Push-in CAGE CLAMP®
  • Actuation type: Operating tool || Push-button
  • Connectable conductor materials: Copper
  • Solid conductor: 0.5 … 4 mm² / 20 … 12 AWG
  • Solid conductor; push-in termination: 0.75 … 4 mm² / 18 … 12 AWG
  • Stranded conductor: 0.5 … 4 mm² / 20 … 12 AWG
  • Fine-stranded conductor: 0.5 … 4 mm² / 20 … 12 AWG
  • Fine-stranded conductor; with insulated ferrule: 0.5 … 1.5 mm² / 20 … 16 AWG
  • Fine-stranded conductor; with ferrule; push-in termination: 0.75 mm² / 18 AWG
  • Note (conductor cross-section): Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
  • Strip length: 10 … 11 mm / 0.39 … 0.43 inch
  • Pole No.: 4
  • Wiring direction: Side-entry wiring

Physical Data

  • Pin spacing: 12 mm / 0.472 inch
  • Width: 48 mm / 1.89 inch
  • Height from the surface: 22.3 mm / 0.878 inch
  • Depth: 35 mm / 1.378 inch

Mechanical Data

  • Marking: ⏚-N-L1-L2
  • Mounting type: Screw mount

Material Data

  • Color: White
  • Insulation material: Polyamide (PA66)
  • Flammability class per UL94: V0
  • Fire load: 0.405 MJ
  • Weight: 27.738 g

Commercial Data

  • Packaging type: Bag
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4044918511100
  • Customs tariff number Sales Organisation Germany: 85369010000
: *
: *
: *
