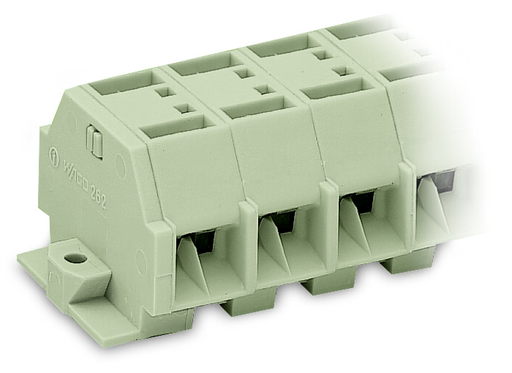

WAGO 262-286

262-286 WAGO 262-286

WAGO 262-286
Part # 262-286
Manufacturer WAGO
GTIN 4044918639200
Condition New
Price: $ 12.89

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
MOD TRM STRP 6P EX W/SNAP IN MTG FT
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
4-Conductor Ex e II terminal strip 6 pole suitable for Ex e applications

Features

Approvals

  • Physikalisch Technische Bundesanstalt (PTB), IECEx, IECEx PTB 04.0004U Ex eb IIC Gb or Ex eb I Mb, IEC 60079
  • CQST/CNEx, CCCEx, 2020312313000186, CNCA-C23-01
  • Underwriters Laboratories Inc., UR, E45172, UL 1059
  • UL International Germany GmbH c/o Physikalisch Technische Bundesanstalt, AEx, E185892, UL 60079
  • DEKRA Certification B.V., CSA, 70010891, C22.2
  • Physikalisch Technische Bundesanstalt (PTB), ATEx, PTB 98 ATEX 3125 UII 2 G Ex eb IIC Gb bzw. I M 2 Ex eb I Mb, EN 60079
  • Brjansker Zertifizierungsstelle, EAC, RU C-DE.AM02.B.00127/19, TP TC 012/2011

Specifications

Ex Information

  • Rated voltage EN (Ex e II): 550 V
  • Rated current (Ex e II): 30 A

Connection 1

  • Connection technology: CAGE CLAMP®
  • Actuation type: Operating tool
  • Connectable conductor materials: Copper
  • Solid conductor: 0.5 … 4 mm² / 20 … 12 AWG
  • Fine-stranded conductor: 0.5 … 4 mm² / 20 … 12 AWG
  • Strip length: 9 … 10 mm / 0.35 … 0.39 inch
  • Pole No.: 6
  • Wiring direction: Side-entry wiring

Physical Data

  • Width: 75 mm / 2.953 inch
  • Height from the surface: 23 mm / 0.909 inch
  • Depth: 33.5 mm / 1.319 inch
  • Module width: 12 mm / 0.472 inch

Mechanical Data

  • Design: Horizontal type
  • Mounting type: Snap-in foot
  • Marking level: Side marking

Material Data

  • Color: Light gray
  • Insulation material: Polyamide (PA66)
  • Flammability class per UL94: V0
  • Fire load: 0.719 MJ
  • Weight: 43.862 g

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4044918639200
  • Customs tariff number Sales Organisation Germany: 85369010000
: *
: *
: *
