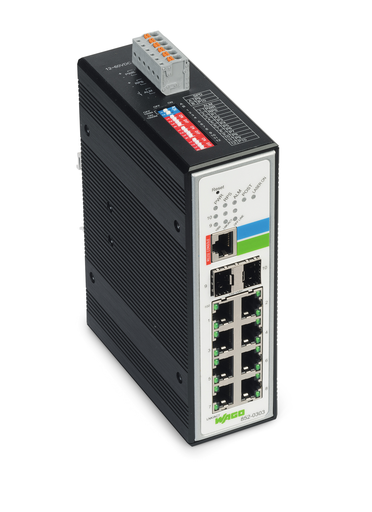

WAGO 852-303

852-303 WAGO 852-303

WAGO 852-303
Part # 852-303
Condition New
Price: $ 898.80

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
Industrial managed switch; 8-port 100Base-TX; 2-slot 1000Base-SX/LX
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
Industrial managed switch; 8-port 100Base-TX; 2-slot 1000Base-SX/LX

Features

  • Web-based/SNMP management
  • Redundant DC power supply
  • Wide supply voltage range: 12 … 60 VDC
  • DIP switches to set alarm functions
  • Fully compatible with IEEE 802.3, 802.3u, 802.3z, 802.3x, 802.3ad, 802.3ab, 802.1d, 802.1q, 802.1p, 802.1w, 802.1x standards
  • Xpress Ring (redundant ring, recovery < 50 ms)
  • Non‐blocking, store‐and‐forward switching, rapid spanning tree protocol (RSTP)
  • Autonegotiation at all 10/100Base-TX ports
  • Auto-MDI/MDIX (crossover) at all 10/100Base-TX ports
  • VLAN (802.1q) VID
  • IGMP snooping for multicast filtering
  • Port configuration, status, statistics
  • Port trunking
  • SNMP v1/v2 and RMON

Approvals

  • Det Norske Veritas, Germanischer Lloyd, DNV GL, TAA0000239, DNVGL-CG-339,Nov.2016
  • National Radio Research Agency, KC, MSIP-REM-W43-ISW852, Article 58-2, Clause 3
  • Underwriters Laboratories Inc., UL, E175199, UL 61010-2-201

Specifications

Technical Data

  • Switching mode: Store‐and‐forward; non-blocking
  • Number of 100Base-TX ports: 8
  • Number of 1000Base SX/LX ports: 2
  • Communication standards: IEEE 802.3 10BASE-T || IEEE 802.3u 100BASE-TX/FX || IEEE 802.3z 1000BASE-SX/LX || IEEE 802.3x Flow Control || IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) || IEEE 802.1Q VLAN Tagging || IEEE 802.1ab Link Layer Discovery Protocol (LLDP) || IEEE 802.1p Prioritization || IEEE 802.1X Port Authentication
  • Redundancy function: Redundant DC power supply; STP; RSTP; MSTP; Jet Ring < 300 ms; Xpress Ring < 20 ms; Dual Homing < 20 ms; Dual Ring; ERPSv2 < 50 ms; LCAP
  • Configuration options: DIP switch for signal contact || Command Line Interface || SNMPv1/v2c/v3
  • Diagnostics: Signal contact, Modbus/TCP, port status, port statistics, port load, traffic monitor, SFP information, syslog, mail alarm, SNMP traps
  • MAC table (size): 16000 addresses
  • Jumbo frame size: 10000 Byte
  • Supply voltage: 12 … 60 VDC; Cable length:< 3 m
  • Power consumption (max.): 12 W
  • ESD (contact/air discharge): 8 KV / 15 KV
  • Baud rate: Copper cable: 10/100 Mbit/s; Fiber optic:1000 Mbit/s
  • Transmission medium (communication/fieldbus): Copper cable: Cat. 5e or higher, 100 m maximum cable length; Fiber optic: SX Multi-Mode, LX Single-Mode
  • Optical fiber type: Single-mode and multi-mode
  • VLAN: Port-based and tag-based (4k VIDs)
  • Controls: 14 x DIP switch: Alarm function power supplies and ports 1 … 10, 100/1000 Mbps fiber optic ports; 1 x Reset button: system restart
  • Indicators: Device: LED (PWR, RPS, POST) green: Power supply (primary), redundant power supply (secondary), POST function; LED (ALM) red: Alarm; LED (LASER ON) yellow, LED (LNK/ACT, 100) green, LED (OFFLINE) red: Status of fiber optic ports; per port: LED (100, LNK/ACT) green: Status 100 Mbps, LNK/ACT ports 1 … 8

Connection Data

  • Connection technology: communication/fieldbus: Copper cable: 8 x RJ-45; Fiber optic: 2 x SFP; LC fiber-optic connector
  • Connection technology: supply: 1 x Built-in male connector: 231-436/001-000; included female connector (MCS Connectors): 2231-106/026-000

Physical Data

  • Width: 50 mm / 1.969 inch
  • Height: 162 mm / 6.378 inch
  • Depth: 120 mm / 4.724 inch

Mechanical Data

  • Weight: 910.000 g
  • Color: Black metallic
  • Housing material: Aluminum
  • Conformity marking: CE

Environmental Requirements

  • Surrounding air temperature (operation): -40 … 70 °C
  • Surrounding air temperature (storage): -40 … 80 °C
  • Protection type: IP30
  • Relative humidity (without condensation): 95 %
  • Mounting type: DIN-35 rail
  • Vibration resistance: Per IEC 60068-2-6
  • Shock resistance: Per IEC 60068-2-27
  • EMC immunity to interference: Per EN 61000-6-2
  • EMC emission of interference: Per EN 61000-6-4
  • Fire load: 0.234 MJ

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: TW
  • GTIN: 4055143327176
  • Customs tariff number Sales Organisation Germany: 85176200000
: *
: *
: *
