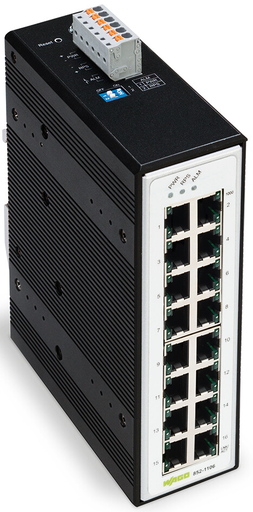

Features

• Redundant DC power supply
• Wide supply voltage range: 12 … 60 VDC
• DIP switches to set alarm functions
• Full compliance with IEEE 802.3, 802.3u and 802.3ab standards
• Non-blocking, store-and-forward switching
• Autonegotiation at all 10/100/1000Base-T ports
• Auto‐MDI/MDIX (crossover) at all 10/100/1000Base‐T ports
• Integrated address look-up table, supports up to 8000 absolute MAC addresses
• Overvoltage protection
• Prioritization of Profinet Ethernet data packets (EtherType=0x8892) per IEEE802.1p

Approvals

• Underwriters Laboratories Inc., UL, E175199, UL 61010-2-201
• National Radio Research Agency, KC, MSIP-REM-W43-ISW852, Article 58-2, Clause 3
• Lloyds Register, LR, LR2128525TA
• DNV Germany GmbH, DNV, TAA00002YN, DNVGL-CG-339,Dec.2019

Specifications

Technical Data

• Switching mode: Store‐and‐forward; non-blocking
• Number of 1000BASE-T ports: 16
• Communication standards: IEEE 802.3 10BASE-T || IEEE 802.3u 100BASE-TX/FX || IEEE 802.3ab 1000BASE-T || IEEE 802.3x Flow Control || IEEE 802.3az Energy Efficient Ethernet || IEEE 802.1p Prioritization
• Redundancy function: Redundant DC power supply
• Configuration options: DIP switch for signal contact
• Diagnostics: Signal contact
• MAC table (size): 8000 addresses
• Jumbo frame size: 10000 Byte
• Supply voltage: 12 … 60 VDC
• Power consumption (max.): 12 W
• Baud rate: Copper cable: 10/1000 Mbit/s
• Transmission medium (communication/fieldbus): Copper cable: Cat. 5e or higher, 100 m maximum cable length
• Controls: 2 x DIP switch: Alarm function power supplies
• Indicators: Device: LED (PWR, RPS) green: Power supply (primary), redundant power supply (secondary); LED (ALM) red: Alarm; per port: LED (1000, LNK/ACT) green: Status 1000 Mbps, LNK/ACT ports 1 … 16

Connection Data

• Connection technology: communication/fieldbus: Copper cable: 16 x RJ-45
• Connection technology: supply: 1 x Built-in male connector: 231-436/001-000; included female connector (MCS Connectors): 2231-106/026-000

Physical Data

• Width: 50 mm / 1.969 inch
• Height: 162 mm / 6.378 inch
• Depth: 120 mm / 4.724 inch

Mechanical Data

• Weight: 840.000 g
• Color: Black metallic
• Housing material: Aluminum
• Conformity marking: CE

Environmental Requirements

• Surrounding air temperature (operation): -40 … 70 °C
• Surrounding air temperature (storage): -40 … 80 °C
• Protection type: IP30
• Relative humidity (without condensation): 95 %
• Mounting type: DIN-35 rail
• Vibration resistance: Per IEC 60068-2-6
• Shock resistance: Per IEC 60068-2-27
• EMC immunity to interference: Per EN 61000-6-2
• EMC emission of interference: Per EN 61000-6-4
• Fire load: 0.234 MJ

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: TW
• GTIN: 4055143604659
• Customs tariff number Sales Organisation Germany: 85176200000
