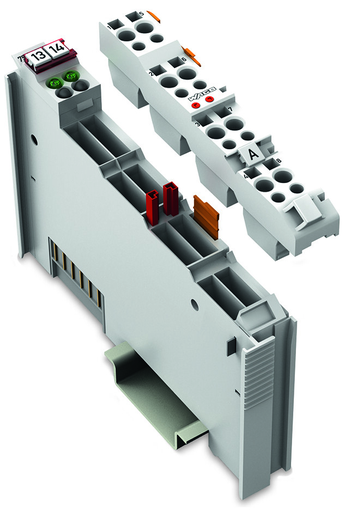

WAGO 753-513/000-001

753-513/000-001 WAGO 753-513/000-001

WAGO 753-513/000-001
Part # 753-513/000-001
Condition New
Price: $ 104.27

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
2DO
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
2DO

Features

Approvals

  • CQST/CNEx, CCCEx, 2020312310000215, CNCA-C23-01
  • Underwriters Laboratories Inc., UL, E198726 Sec.1, UL 121201
  • UL International Netherlands B.V., UL, E175199 Sec.1, UL 508
  • TUEV Nord Cert GmbH, IECEx, IECEx TUN 09.0001 X, IEC 60079-0
  • Brjansker Zertifizierungsstelle, EAC, EAC RU C-DE.AM02.B.00163/19, TP TC 012/2011
  • TUEV Nord Cert GmbH, TUEV Nord, TÜV 07 ATEX 554086 X en., EN 60079-0
  • Korean Register of Shipping, KR, KR HMB05880-AC001

Specifications

Notes

  • Note: Pluggable connectors and coding fingers (753 Series) are not included.

Technical Data

  • Number of digital outputs: 2
  • Total number of channels (module): 2
  • Actuator connection: 2 x (1-wire)
  • Output circuit design: 2 make contacts || Relays
  • Output characteristic: Potential-free
  • Switching frequency (max.): 0.5 Hz; Nominal load
  • Load type of switching frequency: Nominal load
  • Switching voltage (max.): 250 VAC, 30 VDC
  • Switching current (max.): 2 A
  • Switching voltage (min.): 5 V
  • Switching current (min.): 10 mA
  • Switching power: 500 VA / 60 W; cos ϕ max. = 0.4; L/R max. = 7 ms
  • Pull-in time (max.): 10 ms
  • Drop-out time (max.): 10 ms
  • Bounce time (typ.): 1.2 ms
  • Electrical switching operations (min.) (at max. resistive load): 300 x 103 switching operations
  • Mechanical switching operations (min.) (at max. resistive load): 20 x 106 switching operations
  • Output (internal) data width (max.): 2 bits
  • Supply voltage (system): 5 VDC; via data contacts
  • Power consumption (5 V system supply): 100 mA
  • Isolation: 1500 V (system/field)
  • Indicators: LED (A, C) green: Status relay 1, relay 2

Connection Data

  • Connection technology: inputs/outputs: 8 x CAGE CLAMP®
  • Connection type (1): Inputs/outputs
  • Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
  • Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
  • Strip length: 9 … 10 mm / 0.35 … 0.39 inch

Physical Data

  • Width: 12 mm / 0.472 inch
  • Height: 100 mm / 3.937 inch
  • Depth: 69.8 mm / 2.748 inch
  • Depth from upper edge of DIN-rail: 62.6 mm / 2.465 inch

Mechanical Data

  • Mounting type: DIN-35 rail
  • Wiring interface: Pluggable

Material Data

  • Contact material: Ag alloy
  • Housing material: Polycarbonate; polyamide 6.6
  • Fire load: 1.129 MJ
  • Weight: 42.746 g
  • Conformity marking: CE

Environmental Requirements

  • Surrounding air temperature (operation): 0 … 55 °C
  • Surrounding air temperature (storage): -40 … 85 °C
  • Protection type: IP20
  • Pollution degree (5): 2 per IEC 61131-2
  • Operating altitude: 0 … 2000 m
  • Mounting position: Horizontal (standing/lying); vertical
  • Relative humidity (without condensation): 95 %
  • Vibration resistance: Per IEC 60068-2-6
  • Shock resistance: 15g per IEC 60068-2-27
  • EMC immunity to interference: Per EN 61000-6-2, marine applications
  • EMC emission of interference: Per EN 61000-6-4, marine applications
  • Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
  • Permissible H2S contaminant concentration at a relative humidity 75 %: 10 ppm
  • Permissible SO2 contaminant concentration at a relative humidity 75 %: 25 ppm

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4050821867524
  • Customs tariff number Sales Organisation Germany: 85371098990
: *
: *
: *
