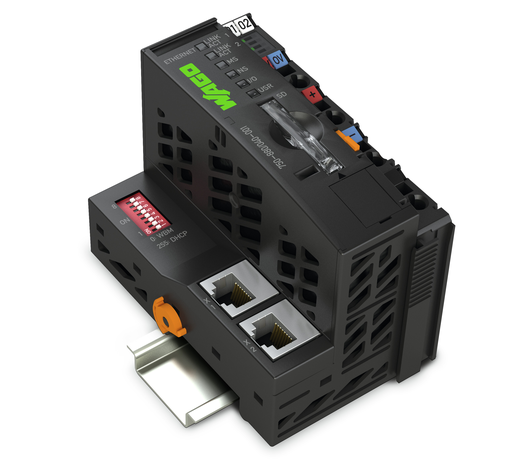

WAGO 750-880/040-001

750-880/040-001 WAGO 750-880/040-001

WAGO 750-880/040-001
Part # 750-880/040-001
Condition New
Price: $ 2684.22

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
Controller ETHERNET
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
Controller ETHERNET

Features

  • Extended temperature range
  • Greater immunity to impulse voltages and electromagnetic interference
  • Higher vibration and shock resistance

Approvals

  • Lloyds Register, LR, 17/20073 LR
  • TUEV Nord Cert GmbH, IECEx, IECEx TUN 16.0046X, IEC 60079-0
  • National Radio Research Agency, KC, MSIP-REM-W43-PFC750, Article 58-2, Clause 3
  • Polski Rejestr Statków, PRS, TE/2215/880590/18
  • Underwriters Laboratories Inc., UL, E198726 Sec.1, UL 121201
  • UL International Netherlands B.V., UL, E175199 Sec.1, UL 508
  • Det Norske Veritas, Germanischer Lloyd, DNV GL, TAA00000Y7
  • American Bureau of Shipping, ABS, 18-HG1778162-PDA
  • TUEV Nord Cert GmbH, ATEX, TUEV 17 ATEX 193969X, EN 60079-0
  • CQST/CNEx, CCCEx, 2020312310000214, CNCA-C23-01

Specifications

Technical Data

  • Communication: EtherNet/IPTM || Modbus (TCP, UDP) || ETHERNET || Telecontrol protocols
  • ETHERNET protocols: HTTP || BootP || DHCP || DNS || SNTP || FTP || SNMP
  • Telecontrol protocols: IEC 60870-5-101/-103/-104 || IEC 61400-25 || IEC 61850-7 || DNP3
  • Visualization: Web Visu
  • CPU: 32 bits
  • Programming languages per IEC 61131-3: Instruction List (IL) || Ladder Diagram (LD) || Function Block Diagram (FBD), Continuous Function Chart (CFC) || Structured Text (ST) || Sequential Function Chart (SFC)
  • Programming environment: WAGO-I/O-PRO V2.3 (based on CODESYS V2.3)
  • Configuration options: WAGO-I/O-CHECK || Web-Based Management || CODESYS Library
  • Baud rate (communication/fieldbus 1): 10/100 Mbit/s
  • Baud rate: 10/100 Mbit/s
  • Transmission medium (communication/fieldbus): Twisted Pair S-UTP; 100 Ω; Cat. 5; 100 m maximum cable length
  • Transmission performance: Class D per EN 50173
  • Program memory: 1024 kByte
  • Data memory: 1024 kByte
  • Non-volatile software memory: 32 kB
  • Memory card type: SD and SDHC up to 32 GB (all guaranteed properties only valid with WAGO Memory Card)
  • Memory card slot: Push-push mechanism; Cover lid (sealable)
  • Number of modules per node (max.): 64
  • Input and output (fieldbus) process image (max.): 1020 Worte/1020 Worte
  • Indicators: LED (LINK/ACT) green: Network connection via ports 1 … 2; LED (MS, NS) red/green: Status of node, network; LED (I/O, USR) red/green/orange: Local data bus status, status programmable by user; LED (A, B) green: System power supply status, field supply
  • Derating: Total current for system supply: 1700 mA (surrounding air (operating) temperature < 60 °C; 1500 mA (surrounding air (operating) temperature: 60 … 70 °C); Derating (supply voltage): Surrounding air temperatures under laboratory conditions: (-25 … +30 %); for -40 … +55 °C: 24 V (-25 … +20 %); for +55 … +70 °C: 24 V (-25 … +10 %); Lower limit in all temperature ranges: −27.5 % (including 15 % residual ripple)
  • Supply voltage (system): 24 VDC; via pluggable connector (CAGE CLAMP® connection); Derating must be observed!
  • Input current (typ.) at nominal load (24 V): 500 mA
  • Power supply efficiency (typ.) at nominal load (24 V): 90 %
  • Power consumption (5 V system supply): 450 mA
  • Total current (system supply): 1700 mA
  • Supply voltage (field): 24 VDC; Power supply via pluggable connector (CAGE CLAMP® connection); Transmission via power jumper contacts; Derating must be observed!
  • Current carrying capacity (power jumper contacts): 10 A
  • Number of outgoing power jumper contacts: 2
  • Ratings per: IEC/EN 60664-1
  • Rated surge voltage: 1 kV

Connection Data

  • Connection technology: communication/fieldbus: EtherNet/IPTM: 2 x RJ-45; Modbus TCP/UDP: 2 x RJ-45; Telecontrol protocol IEC 60870-5-101/-103: 1 x Serial interface via I/O module; Telecontrol protocol IEC 60870-5-104: 1 x RJ-45; Telecontrol protocol IEC 61850: 1 x RJ-45; Telecontrol protocol DNP3: 1 x RJ-45
  • Connection technology: system supply: 2 x CAGE CLAMP®
  • Connection technology: field supply: 4 x CAGE CLAMP®
  • Connection type (1): System/field supply
  • Solid conductor: 0.25 … 2.5 mm² / 24 … 14 AWG
  • Fine-stranded conductor: 0.25 … 2.5 mm² / 24 … 14 AWG
  • Strip length: 8 … 9 mm / 0.31 … 0.35 inch
  • Connection technology: device configuration: 1 x Male connector; 4-pole

Physical Data

  • Width: 61.5 mm / 2.421 inch
  • Height: 100 mm / 3.937 inch
  • Depth: 71.9 mm / 2.831 inch
  • Depth from upper edge of DIN-rail: 64.7 mm / 2.547 inch

Mechanical Data

  • Weight: 154.499 g
  • Color: Dark gray
  • Housing material: Polycarbonate; polyamide 6.6
  • Conformity marking: CE

Environmental Requirements

  • Surrounding air temperature (operation): -40 … 70 °C
  • Surrounding air temperature (storage): -40 … 85 °C
  • Protection type: IP20
  • Pollution degree (5): 2 per IEC 61131-2
  • Operating altitude: Without temperature derating: 0 … 2000 m; with temperature derating: 2000 … 5000 m (0.5 K/100 m); 5000 m (max.)
  • Relative humidity (without condensation): 95 %
  • Relative humidity (with condensation): Short-term condensation per Class 3K7/IEC EN 60721-3-3 and E-DIN 40046-721-3 (except for wind-driven precipitation, water and ice formation)
  • Mounting position: Horizontal (standing/lying); vertical
  • Mounting type: DIN-35 rail
  • Vibration resistance: Per IEC 60068-2-6 (acceleration: 5g), EN 60870-2-2, IEC 60721-3-1, -3, EN 50155; EN 61373
  • Shock resistance: Per IEC 60068-2-27 (15g/11 ms/half-sine/1,000 shocks; 25g/6 ms/1,000 shocks), EN 50155, EN 61373
  • EMC immunity to interference: Per EN 61000-6-1, -2; EN 61131-2; marine applications; EN 50121-3-2; EN 50121-4, -5; EN 60255-26; EN 60870-2-1; EN 61850-3; IEC 61000-6-5; IEEE 1613; VDEW: 1994
  • EMC emission of interference: Per EN 61000-6-3, -4, EN 61131-2, EN 60255-26, marine applications, EN 60870-2-1, EN 61850-3, EN 50121-3-2, EN 50121-4, -5
  • Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
  • Fire load: 0.312 MJ
  • Permissible H2S contaminant concentration at a relative humidity 75 %: 10 ppm
  • Permissible SO2 contaminant concentration at a relative humidity 75 %: 25 ppm

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4050821827184
  • Customs tariff number Sales Organisation Germany: 85371091990
: *
: *
: *
