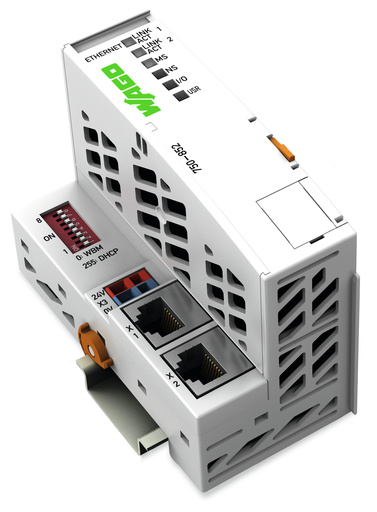

WAGO 750-852

750-852 WAGO 750-852

WAGO 750-852
Part # 750-852
Condition New
Price: $ 488.45

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
Controller ETHERNET
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
Controller ETHERNET

Features

Approvals

  • Det Norske Veritas, Germanischer Lloyd, DNV GL, TAA0000194
  • Polski Rejestr Statków, PRS, TE/2236/880590/19
  • Brjansker Zertifizierungsstelle, EAC, EAC RU C-DE.AM02.B.00163/19, TP TC 012/2011
  • UL International Netherlands B.V., UL, E175199 Sec.1, UL 508
  • TUEV Nord Cert GmbH, ATEX, TUEV_14_ATEX_148929_X, EN 60079-0
  • American Bureau of Shipping, ABS, 19-HG1821926
  • Underwriters Laboratories Inc., UL, E198726 Sec.1, UL 121201
  • TUEV Nord Cert GmbH, IECEx, IECEx_TUN_14.0035_X, IEC 60079-0
  • CQST/CNEx, CCCEx, 2020312310000213, CNCA-C23-01
  • RINA Germany GmbH, RINA, ELE066419XG

Specifications

Technical Data

  • Communication: EtherNet/IPTM || Modbus (TCP, UDP) || ETHERNET
  • ETHERNET protocols: HTTP || BootP || DHCP || DNS || SNTP || FTP
  • Visualization: Webserver
  • CPU: 32 bits
  • Programming languages per IEC 61131-3: Instruction List (IL) || Ladder Diagram (LD) || Function Block Diagram (FBD), Continuous Function Chart (CFC) || Structured Text (ST) || Sequential Function Chart (SFC)
  • Programming environment: WAGO-I/O-PRO V2.3 (based on CODESYS V2.3)
  • Configuration options: WAGO-I/O-CHECK || Web-Based Management
  • Baud rate (communication/fieldbus 1): 10/100 Mbit/s
  • Baud rate: 10/100 Mbit/s
  • Transmission medium (communication/fieldbus): Twisted Pair S-UTP; 100 Ω; Cat. 5; 100 m maximum cable length
  • Transmission performance: Class D per EN 50173
  • Program memory: 512 kByte
  • Data memory: 256 kByte
  • Non-volatile software memory: 8 kB
  • Number of modules per node (max.): 250
  • Number of modules without a bus extension (max.): 64
  • Input and output (fieldbus) process image (max.): 1020 Worte/1020 Worte
  • Indicators: LED (LINK/ACT) green: Network connection via ports 1 … 2; LED (MS, NS) red/green: Status of node, network; LED (I/O, USR) red/green/orange: Local data bus status, status programmable by user
  • Supply voltage (system): 24 VDC (-25 … +30 %); via pluggable connector
  • Input current (typ.) at nominal load (24 V): 300 mA
  • Power supply efficiency (typ.) at nominal load (24 V): 90 %
  • Power consumption (5 V system supply): 400 mA
  • Total current (system supply): 700 mA
  • Isolation: 500 V system/field

Connection Data

  • Connection technology: communication/fieldbus: EtherNet/IPTM: 2 x RJ-45; Modbus TCP/UDP: 2 x RJ-45
  • Connection technology: system supply: 2 x CAGE CLAMP®
  • Connection type (1): System supply
  • Solid conductor: 0.08 … 1.5 mm² / 28 … 16 AWG
  • Fine-stranded conductor: 0.08 … 1.5 mm² / 28 … 16 AWG
  • Strip length: 5 … 6 mm / 0.2 … 0.24 inch
  • Connection technology: device configuration: 1 x Male connector; 4-pole

Physical Data

  • Width: 49.5 mm / 1.949 inch
  • Height: 71.9 mm / 2.831 inch
  • Height from upper-edge of DIN-rail: 64.7 mm / 2.547 inch
  • Depth: 96.8 mm / 3.811 inch

Mechanical Data

  • Weight: 83.069 g
  • Color: Light gray
  • Housing material: Polycarbonate; polyamide 6.6
  • Conformity marking: CE

Environmental Requirements

  • Surrounding air temperature (operation): 0 … 55 °C
  • Surrounding air temperature (storage): -40 … 85 °C
  • Protection type: IP20
  • Pollution degree (5): 2 per IEC 61131-2
  • Operating altitude: Without temperature derating: 0 … 2000 m; with temperature derating: 2000 … 5000 m (0.5 K/100 m); 5000 m (max.)
  • Relative humidity (without condensation): 95 %
  • Mounting position: Any
  • Mounting type: DIN-35 rail
  • Vibration resistance: 4g per IEC 60068-2-6
  • Shock resistance: 15g per IEC 60068-2-27
  • EMC immunity to interference: Per EN 61000-6-2, marine applications
  • EMC emission of interference: Per EN 61000-6-3, marine applications
  • Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
  • Fire load: 1.371 MJ
  • Permissible H2S contaminant concentration at a relative humidity 75 %: 10 ppm
  • Permissible SO2 contaminant concentration at a relative humidity 75 %: 25 ppm

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4050821753940
  • Customs tariff number Sales Organisation Germany: 85371091990
: *
: *
: *
