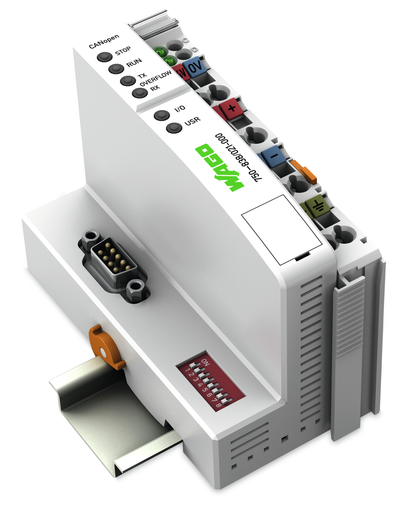

WAGO 750-838/021-000

750-838/021-000 WAGO 750-838/021-000

WAGO 750-838/021-000
Part # 750-838/021-000
Condition New
Price: $ 782.53

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
Controller CANopen
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
Controller CANopen

Features

  • Decentralized control to optimize support for a PLC or PC
  • Devide complex applications into individually testable units
  • Programmable fault response in the event of fieldbus failure
  • Signal pre-processing reduces fieldbus transmissions
  • Directly control peripheral equipment for faster system response times
  • Stand-alone, compact controller

Approvals

  • National Radio Research Agency, KC, MSIP-REM-W43-PFC750, Article 58-2, Clause 3
  • Lloyds Register EMEA, LR, 02/20026 (E6)
  • UL International Netherlands B.V., UL, E175199 Sec.1, UL 508
  • American Bureau of Shipping, ABS, 19-HG1821926
  • Det Norske Veritas, Germanischer Lloyd, DNV GL, TAA0000194
  • Polski Rejestr Statków, PRS, TE/2236/880590/19
  • Underwriters Laboratories Inc., UL, E198726 Sec.1, UL 121201

Specifications

Notes

  • Note: Note: Configuration files required (EDS)!The EDS files can be downloaded for free at www.wago.com.

Technical Data

  • Communication: CANopen
  • Visualization: Without
  • CPU: 16 bits
  • Programming languages per IEC 61131-3: Instruction List (IL) || Ladder Diagram (LD) || Function Block Diagram (FBD), Continuous Function Chart (CFC) || Structured Text (ST) || Sequential Function Chart (SFC)
  • Programming environment: WAGO-I/O-PRO V2.3 (based on CODESYS V2.3)
  • Configuration options: EDS device description file || WAGO-I/O-CHECK
  • Cycle time: < 3 ms for 1000 bit instructions/ 256 digital I/O
  • Baud rate: 10 kBd … 1 MBd
  • Bus segment length (max.): 1000 m
  • Transmission medium (communication/fieldbus): Shielded Cu cable 3 x 0.25 mm²
  • Number of fieldbus nodes on master (max.): 110
  • Program memory: 640 kByte
  • Data memory: 832 kByte
  • Non-volatile software memory: 8 kB
  • Memory for fieldbus input variables (max.): 512 Byte
  • Memory for fieldbus output variables (max.): 512 Byte
  • Number of modules per node (max.): 64
  • Number of PDOs: 32 Tx / 32 Rx
  • Number of SDOs: 2 SDO servers / 16 SDO clients
  • Input and output (fieldbus) process image (max.): 512 Byte/512 Byte
  • Other CANopen features: NMT slave || Minimum boot-up || Variable PDO mapping || Emergency message || Life guarding/heartbeat || Empty module configuration
  • COB ID distribution: SDO, standard
  • Node ID distribution: DIP switch
  • Supported profiles: Communication profile: DS-301 V4.01; device profile: DS-401 V2.0; limit monitoring, flank-triggered PDOs, configurable response in the event of an error, DSP 405, NMT master programmable using function blocks
  • Indicators: LED (STOP) red: Device/node Stop; LED (RUN) green: Initialization; LED (TX, RX OVERFLOW) red: CAN send/receive buffer overflow; LED (I/O, USR) red/green/orange: Local status, status programmable by user; LED (A, B) green: System power supply status, field supply
  • Supply voltage (system): 24 VDC (-25 … +30 %); via pluggable connector (CAGE CLAMP® connection)
  • Input current (typ.) at nominal load (24 V): 500 mA
  • Power supply efficiency (typ.) at nominal load (24 V): 87 %
  • Power consumption (5 V system supply): 350 mA
  • Total current (system supply): 1650 mA
  • Supply voltage (field): 24 VDC (-25 … +30 %); via power jumper contacts
  • Current carrying capacity (power jumper contacts): 10 A
  • Number of outgoing power jumper contacts: 3
  • Isolation: 500 V system/field

Connection Data

  • Connection technology: communication/fieldbus: CANopen: 1 x D-sub 9 plug
  • Connection technology: system supply: 2 x CAGE CLAMP®
  • Connection technology: field supply: 6 x CAGE CLAMP®
  • Connection type (1): System/field supply
  • Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
  • Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
  • Strip length: 8 … 9 mm / 0.31 … 0.35 inch
  • Connection technology: device configuration: 1 x Male connector; 4-pole

Physical Data

  • Width: 50.5 mm / 1.988 inch
  • Height: 100 mm / 3.937 inch
  • Depth: 71.1 mm / 2.799 inch
  • Depth from upper edge of DIN-rail: 63.9 mm / 2.516 inch

Mechanical Data

  • Weight: 182.500 g
  • Color: Light gray
  • Housing material: Polycarbonate; polyamide 6.6
  • Conformity marking: CE

Environmental Requirements

  • Surrounding air temperature (operation): 0 … 55 °C
  • Surrounding air temperature (storage): -25 … 85 °C
  • Protection type: IP20
  • Pollution degree (5): 2 per IEC 61131-2
  • Operating altitude: Without temperature derating: 0 … 2000 m; with temperature derating: 2000 … 5000 m (0.5 K/100 m); 5000 m (max.)
  • Relative humidity (without condensation): 95 %
  • Mounting position: Any
  • Mounting type: DIN-35 rail
  • Vibration resistance: 4g per IEC 60068-2-6
  • Shock resistance: 15g per IEC 60068-2-27
  • EMC immunity to interference: Per EN 61000-6-2, marine applications
  • EMC emission of interference: Per EN 61000-6-4, marine applications
  • Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
  • Fire load: 2.335 MJ
  • Permissible H2S contaminant concentration at a relative humidity 75 %: 10 ppm
  • Permissible SO2 contaminant concentration at a relative humidity 75 %: 25 ppm

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4050821072874
  • Customs tariff number Sales Organisation Germany: 85371091990
: *
: *
: *
