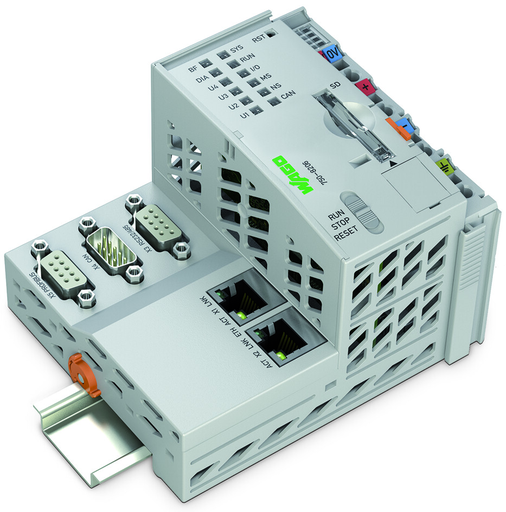

WAGO 750-8206/025-000

750-8206/025-000 WAGO 750-8206/025-000

WAGO 750-8206/025-000
Part # 750-8206/025-000
Condition New
Price: $ 1656.96

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
PFC200
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
PFC200

Features

  • Programmable via WAGO-I/O-PRO V2.3 or e!COCKPIT
  • Direct connection of WAGO I/O Modules
  • 2 x ETHERNET (configurable), RS-232/485, CAN, CANopen, PROFIBUS DP Slave
  • Linux operating system with RT‐Preempt patch
  • Configuration via CODESYS, e!COCKPIT or Web-Based Management interface
  • Maintenance-free

Approvals

  • TUEV Nord Cert GmbH, IECEx, IECEx_TUN_14.0035_X, IEC 60079-0
  • National Radio Research Agency, KC, MSIP-REM-W43-PFC750, Article 58-2, Clause 3
  • TUEV Nord Cert GmbH, ATEX, TUEV_14_ATEX_148929_X, EN 60079-0
  • Lloyds Register, LR, LR_19_20048
  • American Bureau of Shipping, ABS, 19-HG1821812-PDA
  • Det Norske Veritas, Germanischer Lloyd, DNV GL, TAA00001J4
  • Brjansker Zertifizierungsstelle, EAC, EAC RU C-DE.AM02.B.00163/19, TP TC 012/2011
  • CQST/CNEx, CCCEx, 2020312310000213, CNCA-C23-01
  • Underwriters Laboratories Inc., UL, E198726 Sec.1, UL 121201
  • Polski Rejestr Statków, PRS, TE/2237/880590/19

Specifications

Technical Data

  • Communication: PROFIBUS || CANopen || Modbus (TCP, UDP) || ETHERNET || Modbus® RTU || RS-232 serial interface || RS-485 serial interface
  • ETHERNET protocols: DHCP || DNS || NTP || FTP || FTPS || SNMP || HTTP || HTTPS || SSH
  • Visualization: Web Visu
  • Operating system: Real-time Linux (with RT-Preempt patch)
  • CPU: Cortex A8; 600 MHz
  • Programming languages per IEC 61131-3: Instruction List (IL) || Ladder Diagram (LD) || Function Block Diagram (FBD), Continuous Function Chart (CFC) || Structured Text (ST) || Sequential Function Chart (SFC)
  • Programming environment: e!COCKPIT (based on CODESYS V3) || WAGO-I/O-PRO V2.3 (based on CODESYS V2.3)
  • Configuration options: e!COCKPIT || WAGO-I/O-CHECK || Web-Based Management || e!RUNTIME Library || CODESYS Library
  • Baud rate (communication/fieldbus 1): 10/100 Mbit/s
  • Baud rate: ETHERNET: 10/100 Mbit/s
  • Transmission medium (communication/fieldbus): ETHERNET: Twisted Pair S-UTP; 100 Ω; Cat. 5; 100 m maximum cable length
  • Main memory (RAM): 256 MB
  • Internal memory (flash): 256 MB
  • Non-volatile hardware memory: 128 kB
  • Program memory: CODESYS V2: 16 MB; e!RUNTIME: 60 MB (Program and data memory (dynamically distributed))
  • Data memory: CODESYS V2: 64 MB; e!RUNTIME: 60 MB Program and data memory (dynamically distributed)
  • Non-volatile software memory: 128 kB || 128 kB
  • Memory card type: SD and SDHC up to 32 GB (all guaranteed properties only valid with WAGO 758-879/000-001 Memory Card)
  • Memory card slot: Push-push mechanism; Cover lid (sealable)
  • Number of modules per node (max.): 250
  • Number of modules without a bus extension (max.): 64
  • Input and output (internal) process image (max.): 1000 Worte/1000 Worte
  • Input and output (MODBUS) process image (max.): CODESYS V2: 1000 Worte/1000 Worte
  • Input and output (PROFIBUS )process image (max.): 244 Byte/244 Byte
  • Input and output (CAN) process image (max.): 2000 Worte/2000 Worte
  • Indicators: LED (SYS, RUN, I/O, CAN, BF, DIA, U1 … U4) red/green/orange: Status system, program, internal data bus, CANopen, PROFIBUS, PROFIBUS diagnostics, status programmable by user (can be used via CODESYS library); LED (A, B) green: System power supply status, field supply
  • Supply voltage (system): 24 VDC (-25 … +30 %); via pluggable connector (CAGE CLAMP® connection)
  • Input current (typ.) at nominal load (24 V): 550 mA
  • Total current (system supply): 1700 mA
  • Supply voltage (field): 24 VDC (-25 … +30 %); via power jumper contacts
  • Current carrying capacity (power jumper contacts): 10 A
  • Number of outgoing power jumper contacts: 3
  • Isolation: 500 V system/field

Connection Data

  • Connection technology: communication/fieldbus: PROFIBUS: 1 x D-sub 9 socket; CANopen: 1 x D-sub 9 plug; Modbus TCP/UDP: 2 x RJ-45; Modbus RTU: 1 x D-sub 9 socket; RS-232 serial interface: 1 x D-sub 9 socket; RS-485 serial interface: 1 x D-sub 9 socket
  • Connection technology: system supply: 2 x CAGE CLAMP®
  • Connection technology: field supply: 6 x CAGE CLAMP®
  • Connection type (1): System/field supply
  • Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
  • Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
  • Strip length: 8 … 9 mm / 0.31 … 0.35 inch
  • Connection technology: device configuration: 1 x Male connector; 4-pole

Physical Data

  • Width: 112 mm / 4.409 inch
  • Height: 100 mm / 3.937 inch
  • Depth: 71.9 mm / 2.831 inch
  • Depth from upper edge of DIN-rail: 64.7 mm / 2.547 inch

Mechanical Data

  • Weight: 261.500 g
  • Color: Light gray
  • Housing material: Polycarbonate; polyamide 6.6
  • Conformity marking: CE

Environmental Requirements

  • Surrounding air temperature (operation): -20 … 60 °C
  • Surrounding air temperature (storage): -40 … 85 °C
  • Protection type: IP20
  • Pollution degree (5): 2 per IEC 61131-2
  • Operating altitude: Without temperature derating: 0 … 2000 m; with temperature derating: 2000 … 5000 m (0.5 K/100 m); 5000 m (max.)
  • Relative humidity (without condensation): 95 %
  • Relative humidity (with condensation): Short-term condensation per Class 3K6/IEC EN 60721-3-3 and E-DIN 40046-721-3, accounting for a temperature range of −20 to +60 °C (except for wind-driven precipitation, water and ice formation)
  • Mounting position: Any
  • Mounting type: DIN-35 rail
  • Vibration resistance: 4g per IEC 60068-2-6
  • Shock resistance: 15g per IEC 60068-2-27
  • EMC immunity to interference: Per EN 61000-6-2, marine applications
  • EMC emission of interference: Per EN 61000-6-3, marine applications
  • Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
  • Fire load: 2.705 MJ
  • Permissible H2S contaminant concentration at a relative humidity 75 %: 10 ppm
  • Permissible SO2 contaminant concentration at a relative humidity 75 %: 25 ppm

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4055143206280
  • Customs tariff number Sales Organisation Germany: 85371091990
: *
: *
: *
