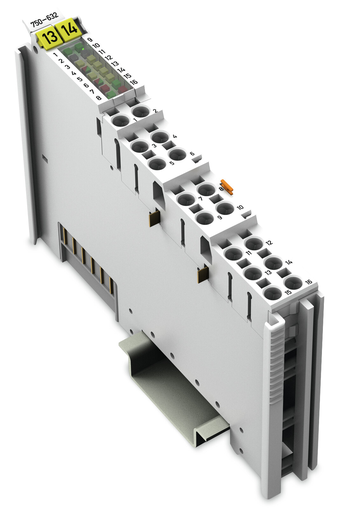

WAGO 750-632

750-632 WAGO 750-632

WAGO 750-632
Part # 750-632
Condition New
Price: $ 457.37

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
Proportional Valve Module
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
Proportional Valve Module

Features

Approvals

  • TUEV Nord Cert GmbH, IECEx, IECEx_TUN_14.0035_X, IEC 60079-0
  • Det Norske Veritas, Germanischer Lloyd, DNV GL, TAA0000194
  • Brjansker Zertifizierungsstelle, EAC, EAC RU C-DE.AM02.B.00163/19, TP TC 012/2011
  • RINA Germany GmbH, RINA, ELE066419XG
  • Bureau Veritas S.A., BV, 66711/A0, Rules for class. of Steel Ships
  • National Radio Research Agency, KC, MSIP-REM-W43-PVM750, Article 58-2, Clause 3
  • TUEV Nord Cert GmbH, ATEX, TUEV_14_ATEX_148929_X, EN 60079-0
  • Polski Rejestr Statków, PRS, TE/2236/880590/19
  • CQST/CNEx, CCCEx, 2020312310000213, CNCA-C23-01
  • Underwriters Laboratories Inc., UL, E198726 Sec.1, UL 121201
  • American Bureau of Shipping, ABS, 19-HG1821926
  • UL International Netherlands B.V., UL, E175199 Sec.1, UL 508

Specifications

Technical Data

  • Number of digital inputs: 2
  • Number of outputs: 2 bipolar outputs (A+, A- and B+, B-)
  • Output type: H-bridge output with current-regulated PWM output (short-circuit-proof and thermal overload-proof for each channel)
  • Input characteristic: High-side switching || Type 1
  • Input current (typ.): 2.7 mA at 24 V
  • Output current: 1-channel operation: 2 A; 2-channel operation: 1.6 A per channel
  • Load type: Operating range: inductive (1 mH … 600 mH); Internal load resistance (> 8 Ohm)
  • PWM frequency (typ.): 50 kHz
  • Data width: 6 bytes: single-channel operating mode; 12 bytes: dual-channel operating mode
  • Supply voltage (system): 5 VDC; via data contacts
  • Power consumption (5 V system supply): 125 mA
  • Supply voltage (field): 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission via spring contact)
  • Power consumption, field supply (module with no external load): 20 mA
  • Isolation: 500 V system/field
  • Number of incoming power jumper contacts: 2
  • Number of outgoing power jumper contacts: 2

Connection Data

  • Connection technology: inputs/outputs: 16 x Push-in CAGE CLAMP®
  • Connection type (1): Inputs/outputs
  • Solid conductor: 0.08 … 1.5 mm² / 28 … 16 AWG
  • Fine-stranded conductor: 0.25 … 1.5 mm² / 22 … 16 AWG
  • Strip length: 8 … 9 mm / 0.31 … 0.35 inch
  • Connection requirement, permissible cable length: 30 m
  • Connection requirement (permissible cable type): Outputs
  • Conductor type 1: F-st
  • Conductor type 2: S || Solid
  • Conductor type (1): Fine-stranded
  • Note (conductor cross-section): Coil connections A+/A-/B+/B-: 1.5 mm²/16 AWG; For use according to UL 508: 16 AWG for all connections

Physical Data

  • Width: 12 mm / 0.472 inch
  • Height: 100 mm / 3.937 inch
  • Depth: 69 mm / 2.717 inch
  • Depth from upper edge of DIN-rail: 61.8 mm / 2.433 inch

Mechanical Data

  • Mounting type: DIN-35 rail

Material Data

  • Color: Light gray
  • Housing material: Polycarbonate; polyamide 6.6
  • Fire load: 0.824 MJ
  • Weight: 54.400 g
  • Conformity marking: CE

Environmental Requirements

  • Surrounding air temperature (operation): 0 … 55 °C
  • Surrounding air temperature (storage): -40 … 85 °C
  • Protection type: IP20
  • Pollution degree (5): 2 per IEC 61131-2
  • Operating altitude: 0 … 2000 m
  • Mounting position: Horizontal (standing/lying); vertical
  • Relative humidity (without condensation): 95 %
  • Vibration resistance: 4g per IEC 60068-2-6
  • Shock resistance: 15g per IEC 60068-2-27
  • EMC immunity to interference: Per EN 61000-6-2, marine applications
  • EMC emission of interference: Per EN 61000-6-4, marine applications
  • Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
  • Permissible H2S contaminant concentration at a relative humidity 75 %: 10 ppm
  • Permissible SO2 contaminant concentration at a relative humidity 75 %: 25 ppm

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4050821782346
  • Customs tariff number Sales Organisation Germany: 85389099990
: *
: *
: *
