WAGO » Remote I/O » Series 750 » WAGO 750-600/040-000

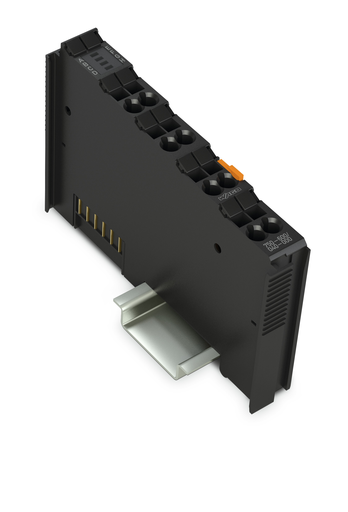

WAGO 750-600/040-000

750-600/040-000 WAGO 750-600/040-000

WAGO 750-600/040-000
Part # 750-600/040-000
Condition New
Price: $ 44.92

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
End Module
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
End Module

Features

  • Extended temperature range
  • Greater immunity to impulse voltages and electromagnetic interference
  • Higher vibration and shock resistance

Approvals

  • National Radio Research Agency, KC, MSIP-REM-W43-END750, Article 58-2, Clause 3
  • TUEV Nord Cert GmbH, ATEX, TUEV 17 ATEX 193969X, EN 60079-0
  • Brjansker Zertifizierungsstelle, EAC, EAC RU C-DE.AM02.B.00163/19, TP TC 012/2011
  • UL International Netherlands B.V., UL, E175199 Sec.1, UL 508
  • Polski Rejestr Statków, PRS, TE/2215/880590/18
  • Det Norske Veritas, Germanischer Lloyd, DNV GL, TAA00000Y7
  • Underwriters Laboratories Inc., UL, E198726 Sec.1, UL 121201
  • TUEV Nord Cert GmbH, IECEx, IECEx TUN 16.0046X, IEC 60079-0
  • CQST/CNEx, CCCEx, 2020312310000214, CNCA-C23-01
  • American Bureau of Shipping, ABS, 18-HG1778162-PDA
  • Lloyds Register, LR, 17/20073 LR

Specifications

Physical Data

  • Width: 12 mm / 0.472 inch
  • Height: 100 mm / 3.937 inch
  • Depth: 67.8 mm / 2.669 inch
  • Depth from upper edge of DIN-rail: 60.6 mm / 2.386 inch

Mechanical Data

  • Mounting type: DIN-35 rail

Material Data

  • Color: Dark gray
  • Housing material: Polycarbonate; polyamide 6.6
  • Fire load: 0.147 MJ
  • Weight: 32.525 g
  • Conformity marking: CE

Environmental Requirements

  • Surrounding air temperature (operation): -40 … 70 °C
  • Surrounding air temperature (storage): -40 … 85 °C
  • Protection type: IP20
  • Pollution degree (5): 2 per IEC 61131-2
  • Operating altitude: Without temperature derating: 0 … 2000 m; with temperature derating: 2000 … 5000 m (0.5 K/100 m); 5000 m (max.)
  • Mounting position: Horizontal (standing/lying); vertical
  • Relative humidity (without condensation): 95 %
  • Relative humidity (with condensation): Short-term condensation per Class 3K7/IEC EN 60721-3-3 and E-DIN 40046-721-3 (except for wind-driven precipitation, water and ice formation)
  • Vibration resistance: Per IEC 60068-2-6 (acceleration: 5g), EN 60870-2-2, IEC 60721-3-1, -3, EN 50155; EN 61373
  • Shock resistance: Per IEC 60068-2-27 (15g/11 ms/half-sine/1,000 shocks; 25g/6 ms/1,000 shocks), EN 50155, EN 61373
  • EMC immunity to interference: Per EN 61000-6-1, -2; EN 61131-2; marine applications; EN 50121-3-2; EN 50121-4, -5; EN 60255-26; EN 60870-2-1; EN 61850-3; IEC 61000-6-5; IEEE 1613; VDEW: 1994
  • EMC emission of interference: Per EN 61000-6-3, -4, EN 61131-2, EN 60255-26, marine applications, EN 60870-2-1, EN 61850-3, EN 50121-3-2, EN 50121-4, -5
  • Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
  • Permissible H2S contaminant concentration at a relative humidity 75 %: 10 ppm
  • Permissible SO2 contaminant concentration at a relative humidity 75 %: 25 ppm

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4050821460428
  • Customs tariff number Sales Organisation Germany: 85389091890
: *
: *
: *
