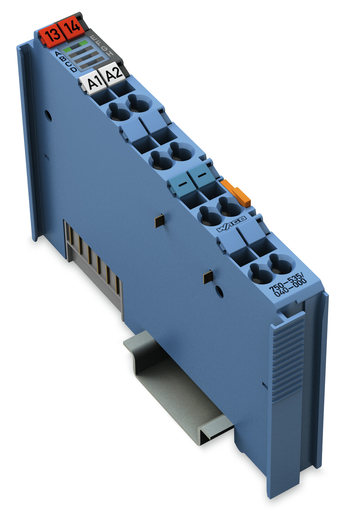

WAGO 750-535/040-000

750-535/040-000 WAGO 750-535/040-000

WAGO 750-535/040-000
Part # 750-535/040-000
Condition New
Price: $ 369.95

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
2DO
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
2DO

Features

  • Green LED (output status)
  • Extended temperature range
  • Greater immunity to impulse voltages and electromagnetic interference
  • Higher vibration and shock resistance

Approvals

  • CQST/CNEx, CCCEx, 2020312310000212, CNCA-C23-01
  • Det Norske Veritas, Germanischer Lloyd, DNV GL, TAA00000Y7
  • Brjansker Zertifizierungsstelle, EAC, EAC RU C-DE.AM02.B.00163/19, TP TC 012/2011
  • Underwriters Laboratories Inc., UL, E198726 Sec.1, UL 121201
  • Underwriters Laboratories Inc., UL, E175199 Sec10, UL 61010-2-201
  • TUEV Nord Cert GmbH, ATEX, TUEV_17_ATEX_196484X, EN 60079-0
  • American Bureau of Shipping, ABS, 18-HG1778162-PDA
  • Lloyds Register, LR, 17/20073 LR
  • TUEV Nord Cert GmbH, IECEx, IECEx TUN 17.0005X, IEC 60079-0
  • Polski Rejestr Statków, PRS, TE/2215/880590/18

Specifications

Notes

  • Note: The digital output module must only be operated via 24 VDC Ex i XTR power supply (750-606/040-000)!General information (e.g., installation regulations) on explosion protection is available in the WAGO I/O System 750 XTR manuals!

Technical Data

  • Number of digital outputs: 2
  • Total number of channels (module): 2
  • Signal type: Voltage
  • Voltage signal type: 24 VDC
  • Actuator connection: 2 x (2-wire)
  • Output characteristic: High-side switching
  • Switching frequency (max.): 1 kHz
  • Load type: Resistive, inductive, lamp load
  • Internal resistance Ri: 285 Ω
  • Power consumption Pmax.: 2.1 W (at 40 mA output current)
  • Output (internal) data width (max.): 2 bits
  • Intrinsic safety Ex i: Yes
  • Supply voltage (system): 5 VDC; via data contacts
  • Power consumption (5 V system supply): 7 mA
  • Supply voltage (field): 24 VDC; (Ex i XTR power supply: UO = max. 26.8 V); via power jumper contacts (power supply via blade contact; transmission via spring contact)
  • Power consumption, field supply (module with no external load): 8.5 mA
  • Power loss Pl: 1.1 W (at 40 mA output current)
  • Isolation: 300 VAC system/field
  • Dielectric strength: 510 VAC/775 VDC; per EN 60870-2-1
  • Rated surge voltage: 1 kV; Rated surge voltage between intrinsically safe and non-intrinsically safe circuits: 1.5 kV (EN 60079-11)
  • Number of incoming power jumper contacts: 2
  • Number of outgoing power jumper contacts: 2
  • Current carrying capacity (power jumper contacts): 1 A
  • Marking: ATEX/IECEx: II 3 (1) G Ex ec [ia Ga] IIC T4 Gc; II (1) D [Ex ia Da] IIIC; I (M1) [Ex ia Ma] I

Explosion Protection

  • Ex guideline: EN/IEC 60079-0, -7, -11
  • Safety-relevant data (circuit): Uo = 26.8 V; Io = 99.91 mA; Po = 669.43 mW; Linear characteristic curve
  • Reactances Ex ia IIC: Lo = 1.1 mH; Co = 0.092 µF
  • Reactances Ex ia IIB: Lo = 12 mH; Co = 0.72 µF
  • Reactances Ex ia IIA: Lo = 21 mH; Co = 2.37 µF
  • Reactances Ex ia I: Lo = 30 mH; Co = 3.85 µF
  • Reactances (note): Reactances without accounting for the concurrence of L and C

Connection Data

  • Connection technology: inputs/outputs: 8 x CAGE CLAMP®
  • Connection type (1): Inputs/outputs
  • Solid conductor: 0.25 … 2.5 mm² / 24 … 14 AWG
  • Fine-stranded conductor: 0.25 … 2.5 mm² / 24 … 14 AWG
  • Strip length: 8 … 9 mm / 0.31 … 0.35 inch

Physical Data

  • Width: 12 mm / 0.472 inch
  • Height: 100 mm / 3.937 inch
  • Depth: 67.8 mm / 2.669 inch
  • Depth from upper edge of DIN-rail: 60.6 mm / 2.386 inch

Mechanical Data

  • Mounting type: DIN-35 rail

Material Data

  • Color: Blue
  • Housing material: Polycarbonate; polyamide 6.6
  • Fire load: 0.634 MJ
  • Weight: 47.500 g
  • Conformity marking: CE

Environmental Requirements

  • Surrounding air temperature (operation): -40 … 70 °C
  • Surrounding air temperature (storage): -40 … 85 °C
  • Protection type: IP20
  • Pollution degree (5): 2 per IEC 61131-2
  • Operating altitude: Without temperature derating: 0 … 2000 m; with temperature derating: 2000 … 5000 m (0.5 K/100 m); 5000 m (max.)
  • Mounting position: Horizontal (standing/lying); vertical
  • Relative humidity (without condensation): 95 %
  • Relative humidity (with condensation): Short-term condensation per Class 3K7/IEC EN 60721-3-3 and E-DIN 40046-721-3 (except for wind-driven precipitation, water and ice formation)
  • Vibration resistance: Per IEC 60068-2-6 (acceleration: 5g), EN 60870-2-2, IEC 60721-3-1, -3
  • Shock resistance: Per IEC 60068-2-27 (15g/11 ms/half-sine/1,000 shocks; 25g/6 ms/1,000 shocks), EN 61373
  • EMC immunity to interference: Per EN 61000-6-1, -2, EN 61131-2, marine applications, EN 60255-26, EN 60870-2-1, EN 61850-3, IEC 61000-6-5, IEEE 1613, VDEW: 1994
  • EMC emission of interference: Per EN 61000-6-3, -4, EN 61131-2, EN 60255-26, marine applications, EN 60870-2-1, EN 61850-3
  • Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
  • Permissible H2S contaminant concentration at a relative humidity 75 %: 10 ppm
  • Permissible SO2 contaminant concentration at a relative humidity 75 %: 25 ppm

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4055143649537
  • Customs tariff number Sales Organisation Germany: 85371098990
: *
: *
: *
