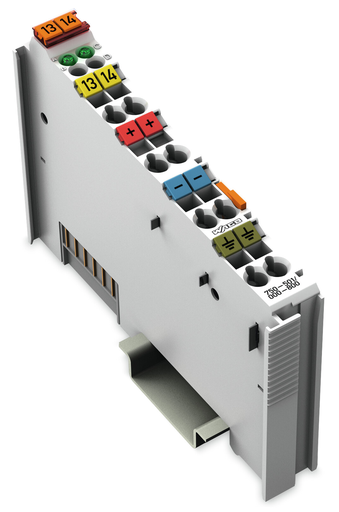

WAGO 750-501/000-800

750-501/000-800 WAGO 750-501/000-800

WAGO 750-501/000-800
Part # 750-501/000-800
Condition New
Price: $ 75.54

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
2DO
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
2DO

Features

Approvals

  • Lloyds Register EMEA, LR, 02/20026 (E6)
  • CQST/CNEx, CCCEx, 2020312310000215, CNCA-C23-01
  • RINA Germany GmbH, RINA, ELE066419XG
  • TUEV Nord Cert GmbH, IECEx, IECEx TUN 09.0001 X, IEC 60079-0
  • TUEV Nord Cert GmbH, TUEV Nord, TÜV 07 ATEX 554086 X en., EN 60079-0
  • Korean Register of Shipping, KR, KR HMB05880-AC001
  • Bureau Veritas S.A., BV, 30389/B0 BV
  • UL International Netherlands B.V., UL, E175199 Sec.1, UL 508
  • Polski Rejestr Statków, PRS, TE/2236/880590/19
  • Brjansker Zertifizierungsstelle, EAC, EAC RU C-DE.AM02.B.00163/19, TP TC 012/2011
  • National Radio Research Agency, KC, MSIP-REM-W43-DOM750, Article 58-2, Clause 3
  • American Bureau of Shipping, ABS, 19-HG1821926
  • Det Norske Veritas, Germanischer Lloyd, DNV GL, TAA0000194

Specifications

Technical Data

  • Number of digital outputs: 2
  • Total number of channels (module): 2
  • Signal type: Voltage
  • Voltage signal type: 24 VDC
  • Actuator connection: 2 x (2-wire, 3-wire, 4-wire)
  • Output characteristic: High-side switching
  • Output current per channel: 0.5 A
  • Output current: Short-circuit-protected
  • Switching frequency (max.): 5 kHz
  • Load type: Resistive, inductive, lamp load
  • Inductive load switch-off energy dissipation (max.): 0.5 J
  • Output (internal) data width (max.): 2 bits
  • Supply voltage (system): 5 VDC; via data contacts
  • Power consumption (5 V system supply): 3.5 mA
  • Supply voltage (field): 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission via spring contact)
  • Power consumption, field supply (module with no external load): 15 mA
  • Isolation: 500 V system/field
  • Interference-free with safety function: Yes
  • Indicators: LED (A, C) green: Status DO 1, DO 2
  • Number of incoming power jumper contacts: 3
  • Number of outgoing power jumper contacts: 3
  • Current carrying capacity (power jumper contacts): 10 A

Connection Data

  • Connection technology: inputs/outputs: 8 x CAGE CLAMP®
  • Connection type (1): Inputs/outputs
  • Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
  • Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
  • Strip length: 8 … 9 mm / 0.31 … 0.35 inch

Physical Data

  • Width: 12 mm / 0.472 inch
  • Height: 100 mm / 3.937 inch
  • Depth: 69.8 mm / 2.748 inch
  • Depth from upper edge of DIN-rail: 62.6 mm / 2.465 inch

Mechanical Data

  • Mounting type: DIN-35 rail
  • Wiring interface: Fixed

Material Data

  • Color: Light gray
  • Housing material: Polycarbonate; polyamide 6.6
  • Fire load: 1.324 MJ
  • Weight: 47.000 g
  • Conformity marking: CE

Environmental Requirements

  • Surrounding air temperature (operation): 0 … 55 °C
  • Surrounding air temperature (storage): -40 … 85 °C
  • Protection type: IP20
  • Pollution degree (5): 2 per IEC 61131-2
  • Operating altitude: 0 … 2000 m
  • Mounting position: Horizontal (standing/lying); vertical
  • Relative humidity (without condensation): 95 %
  • Vibration resistance: 4g per IEC 60068-2-6
  • Shock resistance: 15g per IEC 60068-2-27
  • EMC immunity to interference: Per EN 61000-6-2, marine applications
  • EMC emission of interference: Per EN 61000-6-4, marine applications
  • Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
  • Permissible H2S contaminant concentration at a relative humidity 75 %: 10 ppm
  • Permissible SO2 contaminant concentration at a relative humidity 75 %: 25 ppm

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4045454870492
  • Customs tariff number Sales Organisation Germany: 85371098990
: *
: *
: *
