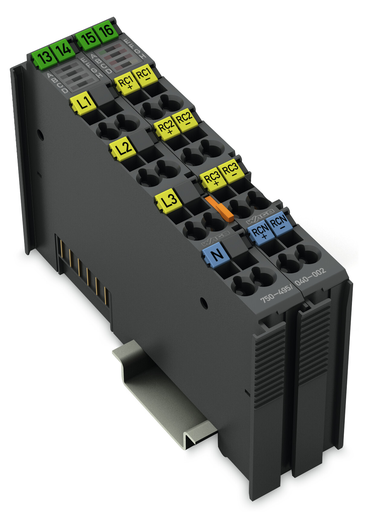

WAGO 750-495/040-002

750-495/040-002 WAGO 750-495/040-002

WAGO 750-495/040-002
Part # 750-495/040-002
Condition New
Price: $ 977.45

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
3-PHASE POM
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
3-PHASE POM

Features

  • Extended temperature range
  • Greater immunity to impulse voltages and electromagnetic interference
  • Higher vibration and shock resistance

Approvals

  • TUEV Nord Cert GmbH, ATEX, TUEV 17 ATEX 193969X, EN 60079-0
  • TUEV Nord Cert GmbH, IECEx, IECEx TUN 16.0046X, IEC 60079-0
  • Det Norske Veritas, Germanischer Lloyd, DNV GL, TAA00000Y7
  • CQST/CNEx, CCCEx, 2020312310000214, CNCA-C23-01
  • Polski Rejestr Statków, PRS, TE/2215/880590/18
  • Lloyds Register, LR, 17/20073 LR
  • American Bureau of Shipping, ABS, 18-HG1778162-PDA
  • RINA Germany GmbH, RINA, ELE066419XG
  • National Radio Research Agency, KC, MSIP-REM-W43-AIM750, Article 58-2, Clause 3

Specifications

Technical Data

  • Number of measurement inputs: 7 (3 voltage measurement inputs, 4 differential current measurement inputs)
  • Signal type: Power measurement
  • Signal form: Any periodic signals (considering the threshold frequencies)
  • Resolution [bit]: 24 bits
  • Data width: 2 x 128-bit data; 2 x 64-bit control/status
  • Voltage path input resistance (typ.): 1429 kΩ
  • Current path input resistance (typ.): 44 kΩ
  • Reference for measurement error: AC current/voltage
  • Measurement error (reference temperature): 25 °C
  • Measurement error – deviation (max.) from the upper-range value: 0.5 %
  • Measurement current (max.): Rogowski coils RT500/RT2000
  • Measurement cycle time: Adjustable for arithmetic mean value, min./max. values
  • Frequency range (mains frequency): 45 … 65 Hz
  • Frequency range (harmonics analysis): 0 … 3300 Hz
  • Limit frequency: 15.9 kHz
  • Rated voltage: ULN = 400 VAC; ULL = 690 VAC
  • Calculated values: Line-to-line voltage, power output, energy, power factors, mains frequency, harmonic analysis (up to the 41st harmonic), THD
  • Measurement components: Evaluating
  • Measurement method: True RMS measurement
  • Supply voltage (system): 5 VDC; via data contacts
  • Power consumption (5 V system supply): 100 mA
  • Dielectric strength: 2.5 kV (AC)/3.5 kV (DC); per EN 60870-2-1
  • Rated surge voltage: 5.0 kV (EN 60870-2-1 / Class VW3); 6.0 kV (UL 508); 6.0 kV (EN 60664-1 / to 4,000 m ASL); 4.0 kV (EN 60664-1 / > 4,000 m to 5,000 m ASL)
  • Overvoltage category: Nominal voltage 400 V/690 V in a 3-phase system: III (EN 60664-1 / to 4,000 m ASL); II (EN 60664-1 / > 4,000 m up to 5,000 m ASL)

Connection Data

  • Connection technology: inputs/outputs: 16 x CAGE CLAMP®
  • Connection type (1): Inputs/outputs
  • Solid conductor: 0.25 … 2.5 mm² / 24 … 14 AWG
  • Fine-stranded conductor: 0.25 … 2.5 mm² / 24 … 14 AWG
  • Strip length: 8 … 9 mm / 0.31 … 0.35 inch

Physical Data

  • Width: 24 mm / 0.945 inch
  • Height: 100 mm / 3.937 inch
  • Depth: 67.8 mm / 2.669 inch
  • Depth from upper edge of DIN-rail: 60.6 mm / 2.386 inch

Mechanical Data

  • Mounting type: DIN-35 rail

Material Data

  • Color: Dark gray
  • Housing material: Polycarbonate; polyamide 6.6
  • Fire load: 0.273 MJ
  • Weight: 90.000 g
  • Conformity marking: CE

Environmental Requirements

  • Surrounding air temperature (operation): -40 … 70 °C
  • Surrounding air temperature (storage): -40 … 85 °C
  • Protection type: IP20
  • Pollution degree (5): 2 per EN 60664-1
  • Operating altitude: Without temperature derating: 0 … 2000 m; with temperature derating: 2000 … 5000 m (0.5 K/100 m); 5000 m (max.)
  • Mounting position: Horizontal (standing/lying); vertical
  • Relative humidity (without condensation): 95 %
  • Relative humidity (with condensation): Short-term condensation per Class 3K7/IEC EN 60721-3-3 and E-DIN 40046-721-3 (except for wind-driven precipitation, water and ice formation)
  • Vibration resistance: Per IEC 60068-2-6 (acceleration: 5g), EN 60870-2-2, IEC 60721-3-1, -3, EN 50155; EN 61373
  • Shock resistance: Per IEC 60068-2-27 (15g/11 ms/half-sine/1,000 shocks; 25g/6 ms/1,000 shocks), EN 50155, EN 61373
  • EMC immunity to interference: Per EN 61000-6-1, -2; EN 61131-2; marine applications; EN 50121-3-2; EN 50121-4, -5; EN 60255-26; EN 60870-2-1; EN 61850-3; IEC 61000-6-5; IEEE 1613; VDEW: 1994
  • EMC emission of interference: Per EN 61000-6-3, -4, EN 61131-2, EN 60255-26, marine applications, EN 60870-2-1, EN 61850-3, EN 50121-3-2, EN 50121-4, -5
  • Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
  • Permissible H2S contaminant concentration at a relative humidity 75 %: 10 ppm
  • Permissible SO2 contaminant concentration at a relative humidity 75 %: 25 ppm

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4055143353564
  • Customs tariff number Sales Organisation Germany: 85389099990
: *
: *
: *
