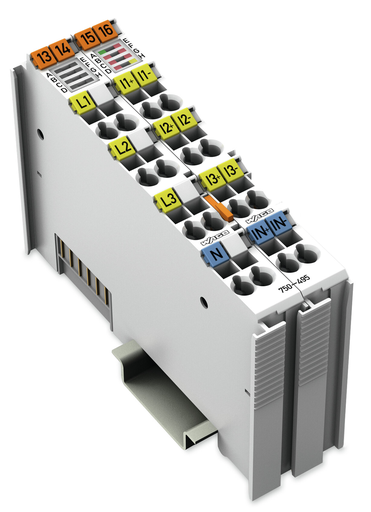

Features

Approvals

• RINA Germany GmbH, RINA, ELE066419XG
• Polski Rejestr Statków, PRS, TE/2236/880590/19
• National Radio Research Agency, KC, MSIP-REM-W43-AIM750, Article 58-2, Clause 3

Specifications

Technical Data

• Number of measurement inputs: 7 (3 voltage measurement inputs, 4 differential current measurement inputs)
• Signal type: Power measurement
• Signal form: Any periodic signals (considering the threshold frequencies)
• Resolution [bit]: 24 bits
• Data width: 2 x 128-bit data; 2 x 64-bit control/status
• Voltage path input resistance (typ.): 1429 kΩ
• Current path input resistance (typ.): 22 mΩ
• Reference for measurement error: AC current/voltage
• Measurement error (reference temperature): 25 °C
• Measurement error – deviation (max.) from the upper-range value: 0.5 %
• Measurement current (max.): 1 A
• Measurement cycle time: Adjustable for arithmetic mean value, Min_Max_Values
• Frequency range (mains frequency): 45 … 65 Hz
• Frequency range (harmonics analysis): 0 … 3300 Hz
• Limit frequency: 15.9 kHz
• Rated voltage: VLN = 400 V AC; VLL = 690 V AC
• Calculated values: Line-to-line voltage, power output, energy, power factors, mains frequency, harmonic analysis (up to the 41st harmonic), THD
• Measurement components: Evaluating
• Measurement method: True RMS measurement
• Supply voltage (system): 5 VDC; via data contacts
• Power consumption (5 V system supply): 100 mA
• Isolation: 6 kV (system/field)
• Rated surge voltage: 6 kV

Connection Data

• Connection technology: inputs/outputs: 16 x CAGE CLAMP®
• Connection type (1): Inputs/outputs
• Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Strip length: 8 … 9 mm / 0.31 … 0.35 inch

Physical Data

• Width: 24 mm / 0.945 inch
• Height: 100 mm / 3.937 inch
• Depth: 67.8 mm / 2.669 inch
• Depth from upper edge of DIN-rail: 60.6 mm / 2.386 inch

Mechanical Data

• Mounting type: DIN-35 rail

Material Data

• Color: Light gray
• Housing material: Polycarbonate; polyamide 6.6
• Fire load: 1.687 MJ
• Weight: 90.700 g
• Conformity marking: CE

Environmental Requirements

• Surrounding air temperature (operation): 0 … 55 °C
• Surrounding air temperature (storage): -40 … 85 °C
• Protection type: IP20
• Pollution degree (5): 2
• Operating altitude: 0 … 2000 m
• Mounting position: Horizontal (standing/lying); vertical
• Relative humidity (without condensation): 95 %
• Vibration resistance: 4g per IEC 60068-2-6
• Shock resistance: 15g per IEC 60068-2-27
• EMC immunity to interference: Per EN 61000-6-2
• EMC emission of interference: Per EN 61000-6-3
• Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
• Permissible H2S contaminant concentration at a relative humidity 75 %: 10 ppm
• Permissible SO2 contaminant concentration at a relative humidity 75 %: 25 ppm

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4050821548256
• Customs tariff number Sales Organisation Germany: 85389099990
