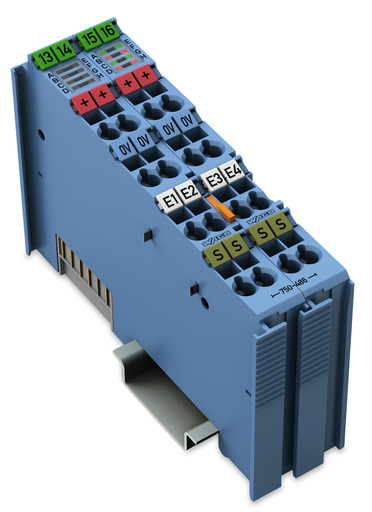

WAGO 750-486

750-486 WAGO 750-486

WAGO 750-486
Part # 750-486
Condition New
Price: $ 1400.42

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
4AI
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
4AI

Features

  • Green LED (availability ON/OFF)
  • Red LED (measurement range overflow/underflow, wire breakage, short circuit)

Approvals

  • TUEV Nord Cert GmbH, TUEV Nord, IECEx TUN 12.0039X, IEC 60079-0
  • CQST/CNEx, CCCEx, 2020312310000211, CNCA-C23-01
  • Brjansker Zertifizierungsstelle, EAC, EAC RU C-DE.AM02.B.00163/19, TP TC 012/2011
  • TUEV Nord Cert GmbH, ATEX, TUEV_12_ATEX_106032X, EN 60079-0
  • Polski Rejestr Statków, PRS, TE/2236/880590/19
  • RINA Germany GmbH, RINA, ELE066419XG
  • Underwriters Laboratories Inc., UL, E198726 Sec.1, UL 121201
  • Lloyds Register EMEA, LR, 02/20026 (E6)
  • National Radio Research Agency, KC, MSIP-REM-W43-AIM750, Article 58-2, Clause 3
  • TÜV Rheinland do Brasil Ltda., INMETRO, TÜV_14.1911_X
  • Underwriters Laboratories Inc., UL, E175199 Sec10, UL 61010-2-201
  • American Bureau of Shipping, ABS, 19-HG1821926
  • Det Norske Veritas, Germanischer Lloyd, DNV GL, TAA0000194
  • TUEV Nord Cert GmbH, TUEV Nord, IECEx TUN 12.0039X, IEC 60079

Specifications

Notes

  • Note: The analog output module must only be operated via 24 VDC Ex i!General information (e.g., installation regulations) on explosion protection is available in the WAGO I/O System 750 manuals!

Technical Data

  • Number of analog inputs: 4
  • Total number of channels (module): 4
  • Signal type: Current
  • Signal type (current): 0 … 20 mADC; 4 … 20 mADC
  • Supply voltage (sensor): 15 VDC; Transmitter supply UV at 20 mA
  • Sensor connection: 2 x (3-wire)
  • Signal characteristic: Single-ended
  • Resolution [bit]: 12 bits
  • Input resistance (max.): 200 Ω
  • Power consumption Pmax.: 2.7 W
  • Data width: 4 x 16-bit data; 4 x 8-bit control/status (optional)
  • Conversion time (typ.): 10 ms
  • Measurement error (reference temperature): 25 °C
  • Measurement error – deviation (max.) from the upper-range value: 0.1 %
  • Temperature error (max.) of the upper-range value: 0.01 %/K
  • Intrinsic safety Ex i: Yes
  • Supply voltage (system): 5 VDC; via data contacts
  • Power consumption (5 V system supply): 45 mA
  • Supply voltage (field): 24 VDC; (Ex i power supply: UO = max. 27.3 V); via power jumper contacts (power supply via blade contact; transmission via spring contact)
  • Power consumption, field supply (module with no external load): 19 mA
  • Power loss Pl: 1.5 W
  • Isolation: 300 VAC system/field
  • Number of incoming power jumper contacts: 2
  • Number of outgoing power jumper contacts: 2
  • Current carrying capacity (power jumper contacts): 1 A
  • Marking: ATEX, IECEx

Explosion Protection

  • Ex guideline: EN IEC 60079-0, -7, -11
  • Safety-relevant data (circuit): Uo = 27.3 V; Io = 98.4 mA; Po = 0.672 W; Linear characteristic curve
  • Reactances Ex ia IIC: Lo = 970 µH; Co = 88 nF
  • Reactances Ex ia IIB: Lo = 13 mH; Co = 683 nF
  • Reactances Ex ia IIA: Lo = 22 mH; Co = 2.28 μF
  • Reactances Ex ia I: Lo = 31 mH; Co = 3.6 µF
  • Reactances (note): Reactances without accounting for the concurrence of L and C

Connection Data

  • Connection technology: inputs/outputs: 16 x CAGE CLAMP®
  • Connection type (1): Inputs/outputs
  • Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
  • Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
  • Strip length: 8 … 9 mm / 0.31 … 0.35 inch

Physical Data

  • Width: 24 mm / 0.945 inch
  • Height: 100 mm / 3.937 inch
  • Depth: 67.8 mm / 2.669 inch
  • Depth from upper edge of DIN-rail: 60.6 mm / 2.386 inch

Mechanical Data

  • Mounting type: DIN-35 rail

Material Data

  • Color: Blue
  • Housing material: Polycarbonate; polyamide 6.6
  • Fire load: 1.681 MJ
  • Weight: 116.000 g
  • Conformity marking: CE

Environmental Requirements

  • Surrounding air temperature (operation): 0 … 55 °C
  • Surrounding air temperature (storage): -40 … 85 °C
  • Protection type: IP20
  • Pollution degree (5): 2 per IEC 61131-2
  • Operating altitude: 0 … 2000 m
  • Mounting position: Horizontal (standing/lying); vertical
  • Relative humidity (without condensation): 95 %
  • Vibration resistance: Per IEC 60068-2-6
  • Shock resistance: 15g per IEC 60068-2-27
  • EMC immunity to interference: Per EN 61000-6-2, marine applications
  • EMC emission of interference: Per EN 61000-6-3, marine applications
  • Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
  • Permissible H2S contaminant concentration at a relative humidity 75 %: 10 ppm
  • Permissible SO2 contaminant concentration at a relative humidity 75 %: 25 ppm

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4055143516044
  • Customs tariff number Sales Organisation Germany: 85389099990
: *
: *
: *
