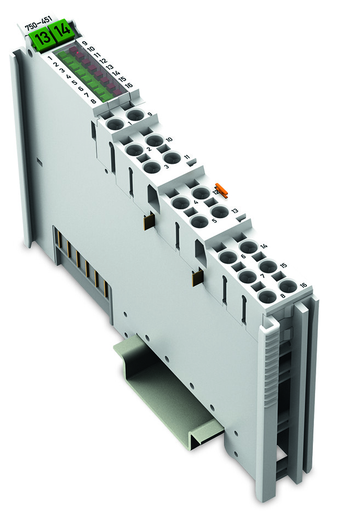

WAGO 750-451/025-000

750-451/025-000 WAGO 750-451/025-000

WAGO 750-451/025-000
Part # 750-451/025-000
Condition New
Price: $ 613.68

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
8AI
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
8AI

Features

Approvals

  • National Radio Research Agency, KC, MSIP-REM-W43-AIM750, Article 58-2, Clause 3

Specifications

Technical Data

  • Number of analog inputs: 8
  • Total number of channels (module): 8
  • Signal type: Resistance measurement || Potentiometer positions
  • Signal type (configurable): Yes
  • Sensor connection: 8 x (2-wire)
  • Data width: 8 x 16-bit data; 8 x 8-bit control/status (optional)
  • Resolution (over entire range): 0.1 °C (over the entire range); 0.01 °C (–50 … 150 °C; Pt1000, Ni1000)
  • Conversion time (typ.): 100 ms
  • Measurement error (25 °C): ≤ ±0.6 K (Pt100, Pt200, Pt500, Ni100, Ni120); ≤ ±0.2 K (Pt1000, Ni1000); ≤ ±0.3 Ω for resistance measurement
  • Measured current (typ.): ≤ 350 µA
  • Response time (max.): 3 s
  • Sensor types: Pt100; Configurable: Pt200, Pt500, Pt1000, Ni100, Ni120, Ni1000 (TK6180 + TK5000), Potentiometer: 10R … 1k2, 10R … 5k0
  • Temperature range: −200 … +850 °C (Pt100, Pt200, Pt500, Pt1000), −60 … +250 °C (Ni100, Ni1000), −80 … +260 °C (Ni120)
  • Supply voltage (system): 5 VDC; via data contacts
  • Power consumption (5 V system supply): 110 mA
  • Supply voltage (field): 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission via spring contact)
  • Isolation: 500 V system/field
  • Number of incoming power jumper contacts: 2
  • Number of outgoing power jumper contacts: 2

Connection Data

  • Connection technology: inputs/outputs: 16 x Push-in CAGE CLAMP®
  • Connection type (1): Inputs/outputs
  • Solid conductor: 0.08 … 1.5 mm² / 28 … 16 AWG
  • Fine-stranded conductor: 0.25 … 1.5 mm² / 22 … 16 AWG
  • Strip length: 8 … 9 mm / 0.31 … 0.35 inch

Physical Data

  • Width: 12 mm / 0.472 inch
  • Height: 100 mm / 3.937 inch
  • Depth: 69 mm / 2.717 inch
  • Depth from upper edge of DIN-rail: 61.8 mm / 2.433 inch

Mechanical Data

  • Mounting type: DIN-35 rail

Material Data

  • Housing material: Polycarbonate; polyamide 6.6
  • Fire load: 0.822 MJ
  • Weight: 49.000 g
  • Conformity marking: CE

Environmental Requirements

  • Surrounding air temperature (operation): -20 … 60 °C
  • Surrounding air temperature (storage): -40 … 85 °C
  • Protection type: IP20
  • Pollution degree (5): 2 per IEC 61131-2
  • Operating altitude: 0 … 2000 m
  • Mounting position: Horizontal (standing/lying); vertical
  • Relative humidity (without condensation): 95 %
  • Relative humidity (with condensation): Short-term condensation per Class 3K6/IEC EN 60721-3-3 and E-DIN 40046-721-3, accounting for a temperature range of −20 to +60 °C (except for wind-driven precipitation, water and ice formation)
  • Vibration resistance: 4g per IEC 60068-2-6
  • Shock resistance: 15g per IEC 60068-2-27
  • EMC immunity to interference: Per EN 61000-6-1; EN 61000-6-2
  • EMC emission of interference: Per EN 61000-6-3
  • Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
  • Permissible H2S contaminant concentration at a relative humidity 75 %: 10 ppm
  • Permissible SO2 contaminant concentration at a relative humidity 75 %: 25 ppm

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4055143603966
  • Customs tariff number Sales Organisation Germany: 85389099990
: *
: *
: *
