WAGO 750-425

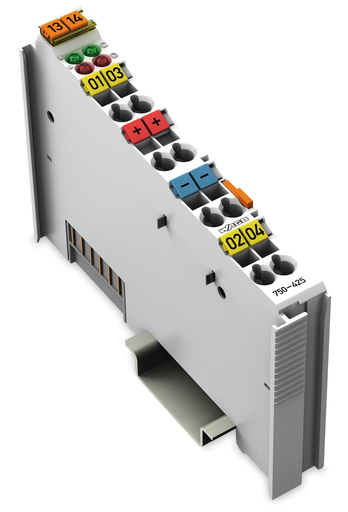

750-425 WAGO 750-425

WAGO 750-425
Part # 750-425
Condition New
Price: $ 111.72

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
2DI
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
2DI

Features

  • Signal current (0): LED off
  • Signal current (1): LED on

Approvals

  • Underwriters Laboratories Inc., UL, E198726 Sec.1, UL 121201
  • TUEV Nord Cert GmbH, TUEV Nord, TÜV 07 ATEX 554086 X en., EN 60079-0
  • TÜV Rheinland do Brasil Ltda., INMETRO, BR-Ex_TÜV 12.1297 X, IEC 60079
  • CQST/CNEx, CCCEx, 2020312310000215, CNCA-C23-01
  • TUEV Nord Cert GmbH, IECEx, IECEx TUN 09.0001 X, IEC 60079-0
  • Lloyds Register EMEA, LR, 02/20026 (E6)
  • RINA Germany GmbH, RINA, ELE066419XG
  • Nippon Kaiji Kyokai, NK, TA17255M
  • Det Norske Veritas, Germanischer Lloyd, DNV GL, TAA0000194
  • Brjansker Zertifizierungsstelle, EAC, EAC RU C-DE.AM02.B.00163/19, TP TC 012/2011
  • Polski Rejestr Statków, PRS, TE/2236/880590/19
  • National Radio Research Agency, KC, MSIP-REM-W43-DIM750, Article 58-2, Clause 3
  • Korean Register of Shipping, KR, KR HMB05880-AC001
  • Bureau Veritas S.A., BV, 30389/B0 BV
  • UL International Netherlands B.V., UL, E175199 Sec.1, UL 508

Specifications

Technical Data

  • Number of digital inputs: 2
  • Total number of channels (module): 2
  • Signal type: NAMUR
  • Supply voltage (sensor): 8.2 VDC; Short-circuit-protected, isolated channels
  • Sensor connection: 2 x (2-wire)
  • Input characteristic: High-side switching
  • Input filter (digital): 3 ms
  • Protection against incorrect wiring: Short circuit monitoring: > 6.5 mA || Wire break monitoring: < 0.2 mA
  • Open-circuit voltage: 8.2 V
  • Short-circuit current: ≤ 8.2 mA
  • Signal current (0) NAMUR: 1.2 mA
  • Signal current (1) NAMUR: 2.1 mA
  • Switching hysteresis: 0.2 mA
  • Diagnostics: Short circuit, wire break
  • Contact resistance (max.): 1000 Ω
  • Input pulse length: 5 ms
  • Input pulse separation: 3 ms
  • Input data width (internal) (max.): 4 bits
  • Data width: 4-bit input: 2-bit data, 2-bit error (short circuit/wire break)
  • Supply voltage (system): 5 VDC; via data contacts
  • Power consumption (5 V system supply): 5 mA
  • Supply voltage (field): 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission via spring contact)
  • Isolation: 500 V system/field
  • Indicators: LED (A, C) green: Status DI 1, DI 2; LED (B, D) red: Error DI 1, DI 2
  • Number of incoming power jumper contacts: 2
  • Number of outgoing power jumper contacts: 2
  • Current carrying capacity (power jumper contacts): 10 A

Connection Data

  • Connection technology: inputs/outputs: 8 x CAGE CLAMP®
  • Connection type (1): Inputs/outputs
  • Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
  • Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
  • Strip length: 8 … 9 mm / 0.31 … 0.35 inch

Physical Data

  • Width: 12 mm / 0.472 inch
  • Height: 100 mm / 3.937 inch
  • Depth: 69.8 mm / 2.748 inch
  • Depth from upper edge of DIN-rail: 62.6 mm / 2.465 inch

Mechanical Data

  • Mounting type: DIN-35 rail
  • Wiring interface: Fixed

Material Data

  • Color: Light gray
  • Housing material: Polycarbonate; polyamide 6.6
  • Fire load: 1.197 MJ
  • Weight: 48.420 g
  • Conformity marking: CE

Environmental Requirements

  • Surrounding air temperature (operation): 0 … 55 °C
  • Surrounding air temperature (storage): -40 … 85 °C
  • Protection type: IP20
  • Pollution degree (5): 2 per IEC 61131-2
  • Operating altitude: 0 … 2000 m
  • Mounting position: Horizontal (standing/lying); vertical
  • Relative humidity (without condensation): 95 %
  • Vibration resistance: 4g per IEC 60068-2-6
  • Shock resistance: 15g per IEC 60068-2-27
  • EMC immunity to interference: Per EN 61000-6-2, marine applications
  • EMC emission of interference: Per EN 61000-6-4, marine applications
  • Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
  • Permissible H2S contaminant concentration at a relative humidity 75 %: 10 ppm
  • Permissible SO2 contaminant concentration at a relative humidity 75 %: 25 ppm

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4050821452805
  • Customs tariff number Sales Organisation Germany: 85389099990
: *
: *
: *
