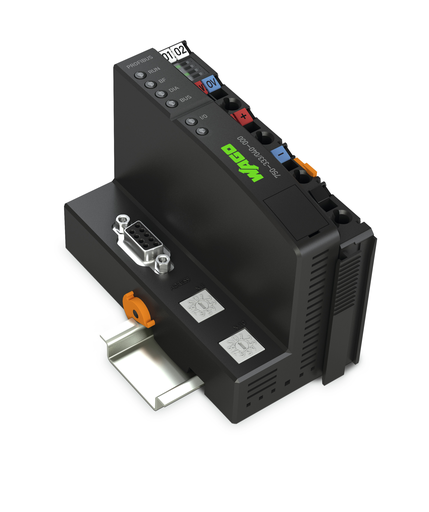

WAGO 750-333/040-000

750-333/040-000 WAGO 750-333/040-000

WAGO 750-333/040-000
Part # 750-333/040-000
Condition New
Price: $ 828.39

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
FC PROFIBUS
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
FC PROFIBUS

Features

  • Extended temperature range
  • Greater immunity to impulse voltages and electromagnetic interference
  • Higher vibration and shock resistance

Approvals

  • UL International Netherlands B.V., UL, E175199 Sec.1, UL 508
  • Lloyds Register, LR, 17/20073 LR
  • Polski Rejestr Statków, PRS, TE/2215/880590/18
  • Det Norske Veritas, Germanischer Lloyd, DNV GL, TAA00000Y7
  • TUEV Nord Cert GmbH, IECEx, IECEx TUN 16.0046X, IEC 60079-0
  • National Radio Research Agency, KC, MSIP-REM-W43-FBC750, Article 58-2, Clause 3
  • Underwriters Laboratories Inc., UL, E198726 Sec.1, UL 121201
  • TUEV Nord Cert GmbH, ATEX, TUEV 17 ATEX 193969X, EN 60079-0
  • American Bureau of Shipping, ABS, 18-HG1778162-PDA
  • CQST/CNEx, CCCEx, 2020312310000214, CNCA-C23-01

Specifications

Notes

  • Note: Note: Configuration files required (GSD)!

Technical Data

  • Communication: PROFIBUS
  • Number of fieldbus nodes on master (max.): 96
  • Number of I/O points: 6000
  • Baud rate: 9.6 kBd … 12 MBd
  • Bus segment length (max.): 1200 m
  • Transmission medium: Cu cable per EN 50170
  • Transmission time: Typ. 1 ms (10 couplers; each 32 digital I/O and 12 Mbaud) max. 3.3 ms
  • Number of modules per node (max.): 63
  • Input and output (fieldbus) process image (max.): 244 Byte/244 Byte
  • Supply voltage (system): 24 VDC; via pluggable connector (CAGE CLAMP® connection); Derating must be observed!
  • Power consumption (5 V system supply): 200 mA
  • Total current (system supply): 1800 mA
  • Supply voltage (field): 24 VDC; Power supply via pluggable connector (CAGE CLAMP® connection); Transmission via power jumper contacts; Derating must be observed!
  • Input current (typ.) at nominal load (24 V): 500 mA
  • Power supply efficiency (typ.) at nominal load (24 V): 90 %
  • Rated surge voltage: 1 kV
  • Number of outgoing power jumper contacts: 2
  • Current carrying capacity (power jumper contacts): 10 A
  • Ratings per: IEC/EN 60664-1
  • Derating: Derating (supply voltage): Surrounding air temperatures under laboratory conditions: (-25 … +30 %); for -40 … +55 °C: 24 V (-25 … +20 %); for +55 … +70 °C: 24 V (-25 … +10 %); Lower limit in all temperature ranges: −27.5 % (including 15 % residual ripple)
  • Standard: EN 50170

Connection Data

  • Connection technology: communication/fieldbus: PROFIBUS: 1 x D-sub 9 socket
  • Connection technology: field supply: 4 x CAGE CLAMP®
  • Connection technology: system supply: 2 x CAGE CLAMP®
  • Connection technology: device configuration: 1 x Male connector; 4-pole
  • Connection type (1): System/field supply
  • Solid conductor: 0.25 … 2.5 mm² / 24 … 14 AWG
  • Fine-stranded conductor: 0.25 … 2.5 mm² / 24 … 14 AWG
  • Strip length: 8 … 9 mm / 0.31 … 0.35 inch

Physical Data

  • Width: 50.5 mm / 1.988 inch
  • Height: 100 mm / 3.937 inch
  • Depth: 71.1 mm / 2.799 inch
  • Depth from upper edge of DIN-rail: 63.9 mm / 2.516 inch

Mechanical Data

  • Mounting type: DIN-35 rail

Material Data

  • Color: Dark gray
  • Housing material: Polycarbonate; polyamide 6.6
  • Fire load: 0.469 MJ
  • Weight: 180.000 g
  • Conformity marking: CE

Environmental Requirements

  • Surrounding air temperature (operation): -40 … 70 °C
  • Surrounding air temperature (storage): -40 … 85 °C
  • Protection type: IP20
  • Pollution degree (5): 2 per IEC 61131-2
  • Operating altitude: Without temperature derating: 0 … 2000 m; with temperature derating: 2000 … 5000 m (0.5 K/100 m); 5000 m (max.)
  • Mounting position: Horizontal (standing/lying); vertical
  • Relative humidity (without condensation): 95 %
  • Relative humidity (with condensation): Short-term condensation per Class 3K7/IEC EN 60721-3-3 and E-DIN 40046-721-3 (except for wind-driven precipitation, water and ice formation)
  • Vibration resistance: Per IEC 60068-2-6 (acceleration: 5g), EN 60870-2-2, IEC 60721-3-1, -3, EN 50155; EN 61373
  • Shock resistance: Per IEC 60068-2-27 (15g/11 ms/half-sine/1,000 shocks; 25g/6 ms/1,000 shocks), EN 50155, EN 61373
  • EMC immunity to interference: Per EN 61000-6-1, -2; EN 61131-2; marine applications; EN 50121-3-2; EN 50121-4, -5; EN 60255-26; EN 60870-2-1; EN 61850-3; IEC 61000-6-5; IEEE 1613; VDEW: 1994
  • EMC emission of interference: Per EN 61000-6-4, EN 61131-2, EN 60255-26, marine applications, EN 60870-2-1, EN 61850-3, EN 50121-3-2, EN 50121-4, -5
  • Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
  • Permissible H2S contaminant concentration at a relative humidity 75 %: 10 ppm
  • Permissible SO2 contaminant concentration at a relative humidity 75 %: 25 ppm

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4050821460138
  • Customs tariff number Sales Organisation Germany: 85176200000
: *
: *
: *
