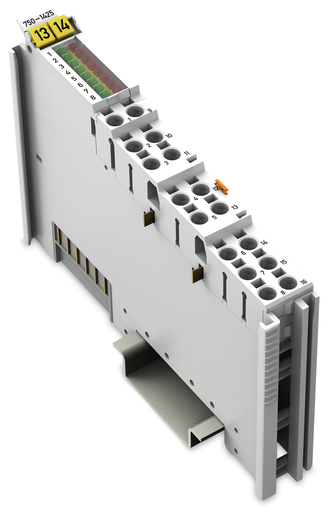

Features

Approvals

• American Bureau of Shipping, ABS, 19-HG1821926
• TUEV Nord Cert GmbH, IECEx, IECEx_TUN_14.0035_X, IEC 60079-0
• CQST/CNEx, CCCEx, 2020312310000213, CNCA-C23-01
• Underwriters Laboratories Inc., UL, E198726 Sec.1, UL 121201
• Brjansker Zertifizierungsstelle, EAC, EAC RU C-DE.AM02.B.00163/19, TP TC 012/2011
• RINA Germany GmbH, RINA, ELE066419XG
• Lloyds Register EMEA, LR, 02/20026 (E6)
• Polski Rejestr Statków, PRS, TE/2236/880590/19
• Det Norske Veritas, Germanischer Lloyd, DNV GL, TAA0000194
• National Radio Research Agency, KC, MSIP-REM-W43-DIM750, Article 58-2, Clause 3
• TUEV Nord Cert GmbH, ATEX, TUEV_14_ATEX_148929_X, EN 60079-0
• UL International Netherlands B.V., UL, E175199 Sec.1, UL 508

Specifications

Technical Data

• Number of digital inputs: 8
• Total number of channels (module): 8
• Signal type: PTC, thermistor per DIN 44081/44082
• Sensor connection: 8 x (2-wire)
• Specific sensor properties: Sensor voltage: ≤ 2.5 V / ≤ 7.5 V (based on resistance value); Number of PTCs per channel: max. 6 PTCs in series; Operating value (status bit “1” to “0”): R ≥ 3 kΩ; Return value (status bit “0” to “1”): ≤ 1.5 kΩ; Hysteresis: R = 1.5 kΩ; Wire break value: R ≥ 8 kΩ; Short circuit value: R ≤ 20 Ω
• Input filter (digital): 100 ms
• Output current per channel: 0.001 A
• Power consumption Pmax.: 260 mW
• Input data width (internal) (max.): 16 bits
• Data width: 16-bit input: 8-bit data, 8-bit error (short circuit/wire break)
• Supply voltage (system): 5 VDC; via data contacts
• Power consumption (5 V system supply): 52 mA
• Supply voltage (field): 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission via spring contact)
• Isolation: 500 V system/field
• Indicators: LED (1-8) green: Status 1T … 8T; LED (9-16) red: Error 1T … 8T
• Number of incoming power jumper contacts: 2
• Number of outgoing power jumper contacts: 2
• Current carrying capacity (power jumper contacts): 10 A

Connection Data

• Connection technology: inputs/outputs: 16 x Push-in CAGE CLAMP®
• Connection type (1): Inputs/outputs
• Solid conductor: 0.08 … 1.5 mm² / 28 … 16 AWG
• Fine-stranded conductor: 0.25 … 1.5 mm² / 22 … 16 AWG
• Strip length: 8 … 9 mm / 0.31 … 0.35 inch

Physical Data

• Width: 12 mm / 0.472 inch
• Height: 100 mm / 3.937 inch
• Depth: 69 mm / 2.717 inch
• Depth from upper edge of DIN-rail: 61.8 mm / 2.433 inch

Mechanical Data

• Mounting type: DIN-35 rail
• Wiring interface: Fixed

Material Data

• Color: Light gray
• Housing material: Polycarbonate; polyamide 6.6
• Fire load: 0.824 MJ
• Weight: 46.500 g
• Conformity marking: CE

Environmental Requirements

• Surrounding air temperature (operation): 0 … 55 °C
• Surrounding air temperature (storage): -40 … 85 °C
• Protection type: IP20
• Pollution degree (5): 2 per IEC 61131-2
• Operating altitude: 0 … 2000 m
• Mounting position: Horizontal (standing/lying); vertical
• Relative humidity (without condensation): 95 %
• Vibration resistance: 4g per IEC 60068-2-6
• Shock resistance: 15g per IEC 60068-2-27
• EMC immunity to interference: Per EN 61000-6-2, marine applications
• EMC emission of interference: Per EN 61000-6-4, marine applications
• Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
• Permissible H2S contaminant concentration at a relative humidity 75 %: 10 ppm
• Permissible SO2 contaminant concentration at a relative humidity 75 %: 25 ppm

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4050821880745
• Customs tariff number Sales Organisation Germany: 85389099990
