Features

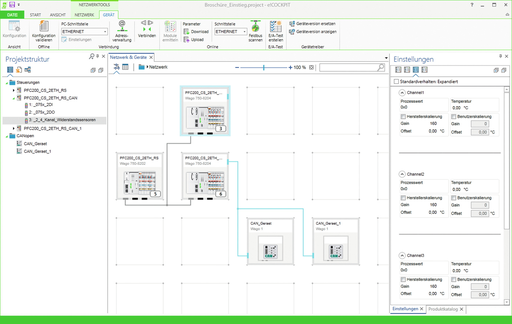

• Graphical network topology: Complex relationships between network devices and their current states can be identified easily and intuitively.
• Drag & Drop: Simplifies device interaction.
• Copy & Paste: Individual devices or whole network branches can be duplicated quickly.
• Batch processing: Parameter values are set simultaneously for several devices.
• IEC 61131-3 PLC programming languages: Structured Text (ST), Ladder Diagram (LD), Function Block Diagram (FBD), Instruction List (IL), Sequential Function Chart (SFC), Continuous Function Chart (CFC)
• For flexibility, all programming languages can be combined with one another.
• Created programs can be easily debugged on the engineering PC via simulation.
• New paradigms such as object-oriented programming are included.
• Access to IEC program variables
• Closed simulation of HMI and PLC programs on the engineering PC
• Guaranteed language independence via Unicode character set
• Current standards such as HTML 5 or CSS
• Individual views, for example, always display the controllers' status information both graphically and in tabular form.
• To keep the project on time, error messages are transmitted directly and clearly.
• The structured wiring test function systematically identifies wiring errors.

Specifications

Notes

• Note: Register for e!COCKPIT Engineering Software: FormularRegister here to download and test the Engineering Software for 30 days free of charge.

System Requirements

• Supported operating systems: Windows 7 (32- and 64-bit) || Windows 8 || Windows 8.1 (32- and 64-bit) || Windows 10
• Processor: Core2Duo
• Memory: 4 GB
• Hard disk space: Min. 30 GB
• Graphics resolution: 1,366 x 768 px

Software Data

• Supported devices: Controllers based on CODESYS 3; I/O Modules (750/753)
• Supported fieldbuses: CANopen, MODBUS TCP/UDP, MODBUS RTU, PROFIBUS
• Supported device descriptions: DTP, EDS, GSD
• Connectivity: TCP, USB, OPC, CODESYS network variables, CODESYS DataServer
• Programming languages per IEC 61131-3: ST, LD, FBD, IL, FC, CFC
• Import/export formats: CODESYS 3 project files (*.project)

Delivery

• License type: Buy-out license
• Delivery type: Installation file (download)
• License type (note): Buy-out license: Allows unlimited installations within a company at all locations in a country; in addition, the software may be used in company products that contain WAGO's automation technology to form a functional unit.
• Note on license type (2): Internet connection may be required for license activation.

Commercial Data

• Country of origin Sales Organisation Germany: DE
• GTIN: 4055143327282
• Customs tariff number Sales Organisation Germany: 88888888888
