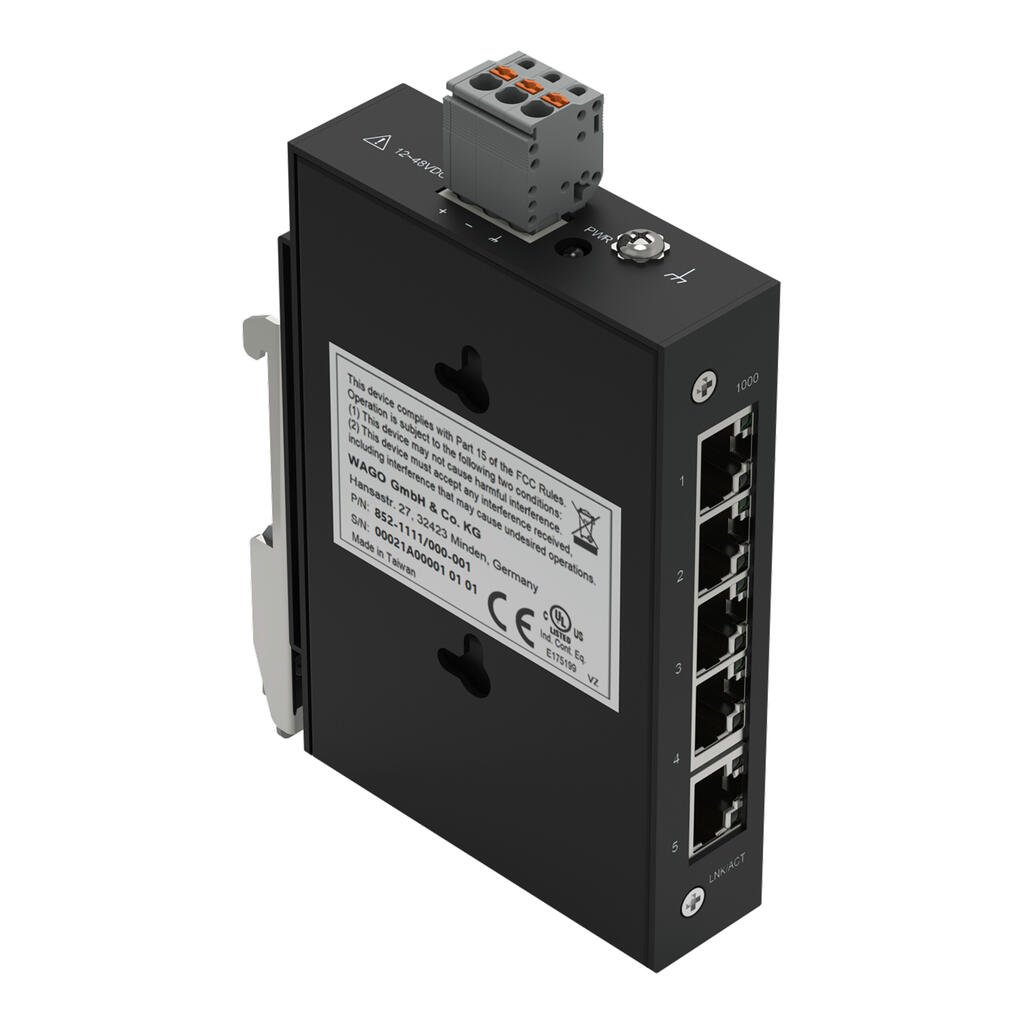

WAGO 852-1111/000-001
852-1111/000-001 WAGO 852-1111/000-001
InStock
Industrial-ECO-Switch; 5-port 1000Base-T; black
Got questions?
Send us a message
or call us at 1-800-335-5111 for additional assistance.
Technical data
| Switching mode | Store-and-forward; non-blocking |
| Number of 1 Gb/s ports | 5 |
| Communication standards | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3x Flow Control IEEE 802.1p Prioritization |
| MAC table (size) | 2000 addresses |
| Jumbo frame size | 9216.Byte |
| Supply voltage | 12 … 48 V |
| Power consumption (max.) | 4W |
| Current consumption (max.) | 200mA |
| Transmission rate | Copper cable: 10/1000 Mbit/s |
| Topology | Star |
| Indicators | Device: LED (PWR) green: Power supply; per port: LED (100, 1000) green: Status 100 Mbps, 1000 Mbps ports 1 … 5 |
Connection data
| Connection technology: communication/fieldbus | Copper cable: 5 x RJ-45 |
| Connection technology: supply | 1 x Built-in male connector: 231-433/001-000; included female connector (MCS Connectors): 231-103/026-000 |
Physical data
| Width | 23.4 mm / 0.921 inches |
| Height | 109.2 mm / 4.299 inches |
| Depth | 73.8 mm / 2.906 inches |
| Depth from upper-edge of DIN-rail | 81 mm / 3.189 inches |
Mechanical data
| Weight | 203g |
| Color | black |
| Housing material | Sheet steel |
| Conformity marking | CE |
Environmental requirements
| Ambient temperature (operation) | -40 … +70 °C |
| Ambient temperature (storage) | -40 … +85 °C |
| Protection type | IP30 |
| Relative humidity (without condensation) | 95% |
| Mounting type | DIN-35 rail |
| Vibration resistance | per IEC 60068-2-6 |
| Shock resistance | per IEC 60068-2-27 |
Commercial data
| ETIM 9.0 | EC000734 |
| ETIM 8.0 | EC000734 |
| ECCN | NO US CLASSIFICATION |
| PU (SPU) | 1 pcs |
| Packaging type | Box |
| Country of origin | TW |
| GTIN | 4066966254990 |
| Customs tariff number | 85176200000 |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
