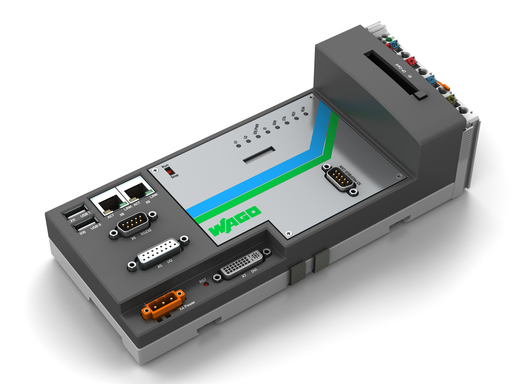

Features

Approvals

• TUEV Nord Cert GmbH, IECEx, IECEx TUN 09.0001 X, IEC 60079-0
• TUEV Nord Cert GmbH, TUEV Nord, TÜV 07 ATEX 554086 X en., EN 60079-0
• National Radio Research Agency, KC, MSIP-REM-W43-IPC758, Article 58-2, Clause 3

Specifications

Technical Data

• Communication: PROFIBUS || CANopen || Modbus (TCP, UDP) || ETHERNET || Modbus® RTU || RS-232 serial interface
• ETHERNET protocols: FTP || NTP || SNMP
• Visualization: Web Visu
• Operating system: Linux 2.6 with RT-Preempt patch
• CPU: Pentium®M; 1.4 GHz
• Programming languages per IEC 61131-3: Instruction List (IL) || Ladder Diagram (LD) || Function Block Diagram (FBD), Continuous Function Chart (CFC) || Structured Text (ST) || Sequential Function Chart (SFC)
• Main memory (RAM): 256 MB
• Internal memory (flash): 512 MB
• Non-volatile software memory: 1024 kB
• Memory card type: CompactFlash type I/II
• Number of modules per node (max.): 250
• Number of modules without a bus extension (max.): 64
• Input and output (fieldbus) process image (max.): 500 Byte/500 Byte
• Indicators: Power supply; Watchdog; PROFIBUS DP, CANopen; Run/Stop; IDE; Local data bus
• Supply voltage (system): 24 VDC (-25 … +30 %); via pluggable connector (CAGE CLAMP® connection)
• Input current (typ.) at nominal load (24 V): 770 mA
• Total current (system supply): 1000 mA
• Supply voltage (field): 24 VDC (-25 … +30 %); via power jumper contacts
• Number of outgoing power jumper contacts: 3

Connection Data

• Connection technology: communication/fieldbus: PROFIBUS: 1 x D-sub 9 socket; CANopen: 1 x D-sub 9 socket; Modbus TCP/UDP: 2 x RJ-45; Modbus RTU: 1 x D-sub 9 plug; RS-232 serial interface: 1 x D-sub 9 plug; USB: 2 x USB 2.0 host (type A); DVI: 1 x D-sub 24+5 socket; Digital input/output: 1 x D-sub 15 socket
• Connection technology: system supply: 2 x CAGE CLAMP®
• Connection technology: field supply: 6 x CAGE CLAMP®
• Connection type (1): System/field supply
• Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Strip length: 8 … 9 mm / 0.31 … 0.35 inch

Physical Data

• Width: 236 mm / 9.291 inch
• Height from upper-edge of DIN-rail: 70 mm / 2.756 inch
• Depth: 100 mm / 3.937 inch

Mechanical Data

• Weight: 1584.901 g
• Color: Dark gray
• Housing material: Aluminum
• Conformity marking: CE

Environmental Requirements

• Surrounding air temperature (operation): 0 … 55 °C
• Surrounding air temperature (storage): -10 … 85 °C
• Protection type: IP20
• Operating altitude: 0 … 15000 m
• Relative humidity (without condensation): 90 %
• Mounting type: DIN-35 rail
• Vibration resistance: Operation: 0.5g, 10 … 500 Hz; Storage/transport: 1g, 10 … 500 Hz
• Shock resistance: Operation: 5g, 11 ms, 6 axes; Storage/transport: 30g, 11 ms, 6 axes
• EMC immunity to interference: Per EN 61000-6-2
• EMC emission of interference: Per EN 61000-6-4
• Fire load: 0.000 MJ

Commercial Data

• Country of origin Sales Organisation Germany: DE
• GTIN: 4045454825294
• Customs tariff number Sales Organisation Germany: 84715000000
