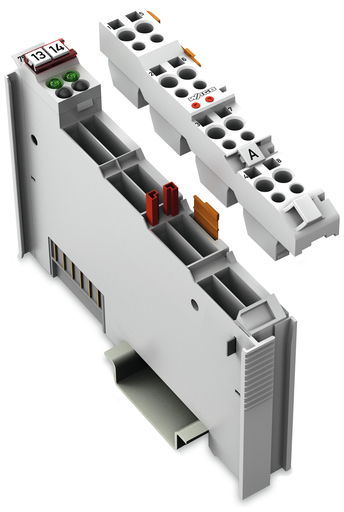

WAGO 753-514

753-514 WAGO 753-514

WAGO 753-514
Part # 753-514
Manufacturer WAGO
GTIN 4044918817424
Condition New
Price: $ 74.41

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
2DO 125V AC 0,5A Rel.2CO Pot.-Free
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
2-Channel relay output module AC 125 V, DC 30 V I/O module for testing

Features

Approvals

  • Det Norske Veritas, Germanischer Lloyd, DNV GL, TAA0000194
  • UL International Netherlands B.V., UL, E175199 Sec.1, UL 508
  • American Bureau of Shipping, ABS, 19-HG1821926
  • Lloyds Register EMEA, LR, 02/20026 (E6)
  • Bureau Veritas S.A., BV, 30389/B0 BV
  • Korean Register of Shipping, KR, KR HMB05880-AC001
  • RINA Germany GmbH, RINA, ELE066419XG
  • National Radio Research Agency, KC, MSIP-REM-W43-DOM750, Article 58-2, Clause 3
  • Polski Rejestr Statków, PRS, TE/2236/880590/19

Specifications

Notes

  • Note: Pluggable connectors and coding fingers (753 Series) are not included.

Technical Data

  • Number of digital outputs: 2
  • Total number of channels (module): 2
  • Actuator connection: 2 x (1-wire)
  • Output circuit design: 2 changeover contacts || Relays
  • Output characteristic: Potential-free
  • Switching frequency (max.): 0.33 Hz
  • Switching voltage (max.): 125 VAC, 30 VDC
  • Switching current (max.): 0.5 A
  • Switching current (note): 0.5 A at 125 VAC; 1 A at 30 VDC
  • Switching voltage (min.): 0.01 V
  • Switching current (min.): 0.01 mA
  • Switching power: 62.5 VA / 30 W
  • Pull-in time (max.): 4 ms
  • Drop-out time (max.): 4 ms
  • Electrical switching operations (min.) (at max. resistive load): 100 x 103 switching operations
  • Mechanical switching operations (min.) (at max. resistive load): 100 x 106 switching operations
  • Output (internal) data width (max.): 2 bits
  • Supply voltage (system): 5 VDC; via data contacts
  • Power consumption (5 V system supply): 70 mA
  • Supply voltage (field): ; Transmission of ground potential via power jumper contact
  • Isolation: 1500 V (system/field)
  • Indicators: LED (A, C) green: Status relay 1, relay 2
  • Number of incoming power jumper contacts: 1
  • Number of outgoing power jumper contacts: 1
  • Current carrying capacity (power jumper contacts): 10 A

Connection Data

  • Connection technology: inputs/outputs: 8 x CAGE CLAMP®
  • Connection type (1): Inputs/outputs
  • Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
  • Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
  • Strip length: 9 … 10 mm / 0.35 … 0.39 inch

Physical Data

  • Width: 12 mm / 0.472 inch
  • Height: 100 mm / 3.937 inch
  • Depth: 69.8 mm / 2.748 inch
  • Depth from upper edge of DIN-rail: 62.6 mm / 2.465 inch

Mechanical Data

  • Mounting type: DIN-35 rail
  • Wiring interface: Pluggable

Material Data

  • Color: Light gray
  • Contact material: Ag alloy (with gold flash)
  • Housing material: Polycarbonate; polyamide 6.6
  • Fire load: 1.035 MJ
  • Weight: 41.211 g
  • Conformity marking: CE

Environmental Requirements

  • Surrounding air temperature (operation): 0 … 55 °C
  • Surrounding air temperature (storage): -40 … 85 °C
  • Protection type: IP20
  • Pollution degree (5): 2 per IEC 61131-2
  • Operating altitude: 0 … 2000 m
  • Mounting position: Horizontal (standing/lying); vertical
  • Relative humidity (without condensation): 95 %
  • Vibration resistance: 4g per IEC 60068-2-6
  • Shock resistance: 15g per IEC 60068-2-27
  • EMC immunity to interference: Per EN 61000-6-2, marine applications
  • EMC emission of interference: Per EN 61000-6-4, marine applications
  • Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
  • Permissible H2S contaminant concentration at a relative humidity 75 %: 10 ppm
  • Permissible SO2 contaminant concentration at a relative humidity 75 %: 25 ppm

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4044918817424
  • Customs tariff number Sales Organisation Germany: 85371098990
: *
: *
: *
